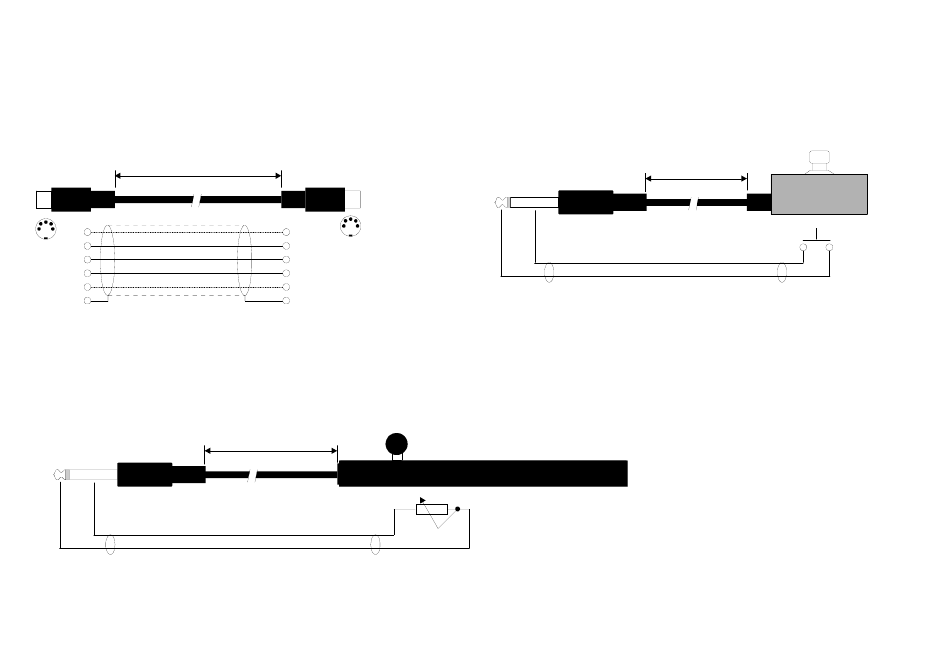

Cable Specifications:

MIDI CABLE
DIN CONNECTOR
max. 15m
5 POLE - MALE
45 degrees
SHIELDED CABLE ( 3 or 5 wires + shield )
see note
1
4
2
5
see note
3
C
Note: Pin 1 and 3 at the Finalizer are reserved for optional RS485 interface
Therefore, use only 3-wires if the Finalizer is connected to other equipment that use these pins
FADER CABLE
JACK PLUG
MONO - MALE
Ø 6.35mm, 1/4"
shield/ground
Tip
__________________________________________________________________________________________________________________________________________________________________________________________________
TC Electronic A/S
DIN CONNECTOR
5 POLE - MALE
45 degrees
1
4
2
5
3
C
max. 100m
1 wire + shield
Finalizer Service manual
PEDAL CABLE
JACK PLUG
MONO - MALE
Ø 6.35mm, 1/4"
shield/ground
Tip
MASTER FADER or similar
50k ohm = min level
0 ohm = max level
50k lin
PEDAL SWITCH
or similar
max. 100m
1 wire + shield
Switch must be
momentary type
page 20
