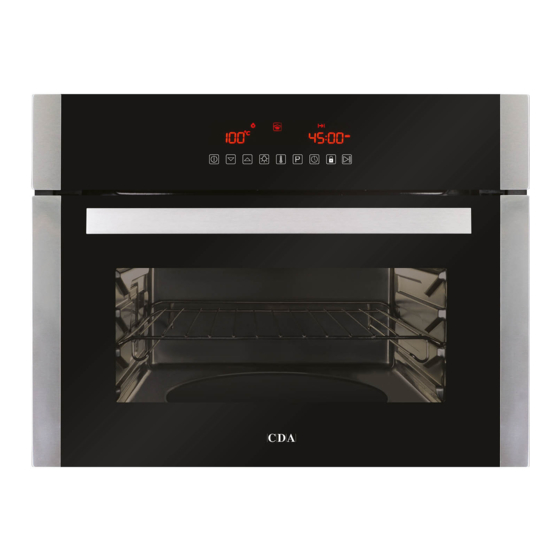

- Page 1 Steam Oven with Grill Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
-
Page 2: Table Of Contents
Contents • Important product and safety information - p3 • Before first usage instructions - p6 • Water tank location - p7 • Control panel layout - p8 • Using your appliance - p9 • Setting the clock - p9 •... - Page 3 Keep the oven door closed whilst grilling. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 4 EU Declarations of Conformity: This oven has been designed, constructed and marketed in compliance with safety requirements of EU Directive 2014/35/EU (LVD) and requirements of EU Directive 2014/30/EU (EMC). Parts intended to come into contact with food conform to 1935/2004/ IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
- Page 5 Important • Read the user instructions carefully before using the oven for the first time. • Follow the instructions for first use of the oven. • Clean the oven regularly. • Remove spills as soon as they occur. • Always use oven gloves when removing shelves and trays from the oven.
- Page 6 • Do not attempt to repair the internal workings of your oven. • Do not cover the oven floor with aluminium foil. Before first use First use Before using the oven for the first time we recommend that, with the power supply off, you clean the oven with soapy water. Once done, rinse carefully, remove all accessories from the appliance and then heat on the below programme at maximum temperature for the specified time.
- Page 7 Filling the water tank Before using the steam functions for the first time we recommend that you remove and clean, thoroughly, the water tank in the appliance. The water tank can be found on the right hand side of the appliance when the door is open (circled below).
- Page 8 Control panel Fig. 2 On/off sensor Function selection sensor Function down sensor Clock/Timer sensor Function up sensor Safety key lock sensor Oven light sensor Confirm/Pause sensor Temperature selection sensor Prompt area Function display Temperature display Time display Safety key lock Water shortage Oven light Cooking time...
-
Page 9: Setting The Clock - P9
Using the touch controls The touch controls should be used with the flat of your finger, rather than the fingertip. Fig. 4 Switching the appliance on and off To switch the appliance on Touch and hold the ‘on/off’ sensor for approximately 3 seconds and until the appliance beeps. -
Page 10: Setting The Minute Minder - P10
will show 0.00. To set the time, simply press the clock/timer sensor (G) so that the clock symbol in the time display flashes. Then, use the function up sensor (C) and the function down sensor (B) to set the time appropriately. Wait 5 seconds or press the confirm/pause sensor (I) to confirm. - Page 11 Steam - 1100 W 85-100°C meat Steam - 1100 W 85-100°C fish Steam - 1100 W 85-100°C vegetables Top grill 900W 50-250°C 900W 50-250°C Pizza 1100 W 50-100°C Slow cooking 1100 W 50- 80 °C Defrost To select a function and begin cooking With the appliance on, use the function up sensor (C) or the function down sensor (B) to select the desired function.
-
Page 12: Semi-Automatic Cooking - P12
Semi-automatic cooking This function allows for a cooking time to be set. When the set time elapses, the oven will switch the set function off and an acoustic signal will sound to alert the user. To switch on semi-automatic cooking •... -
Page 13: Automatic Cooking - P13
Automatic cooking This function allows for a duration and an end time to be set for cooking. With this, the oven will start cooking automatically due to the set duration determining how long before the end time that the function will activate and begin cooking. For example, if you set the cooking duration to 1 hour, and the end time to 15:30, then the oven will activate the function at 14:30. -
Page 14: Safety Key Lock - P14
• Return the time to ‘0.00’ using the function down sensor (B). Press the confirm/pause sensor (I) once this has been done. Please note: The cooking time can be set between 0 and 10 hours. The end of cooking time can be set to 24 hours ahead of the current time minus the cooking time. -
Page 15: Operating Time Limiter - P15
5 seconds. The padlock symbol in the prompt area should extinguish and the control panel will now be unlocked. Interior lighting The interior lighting will come on automatically when the oven is in use but can be turned on and off as you so wish. The light will also turn on after opening the oven door. -
Page 16: Care And Maintenance - P16
Please note: The cooking time can be set between 0 and 10 hours. The end of cooking time can be set to 10 hours ahead of the current time. If an end of cooking time is set, then this will take priority, for example over the current time, on the time display. - Page 17 damage. • Carefully remove the old bulb and dispose of it safely. Insert the new bulb, ensuring that your hands are still protected. This will also preserve the lifespan of the replacement bulb. The new bulb must be able to withstand high temperature (300°C) and match the following specifications: 230-240V, 50Hz, 25W, G9 fitting.
- Page 18 • Open the door fully • Lift and tilt the safety catch part of the hinge (fig. 6) so that it is fully extended and points towards the door. • Close the door most of the way, lift it slightly and then pull it, safely but firmly, towards you.
- Page 19 Removing the inner door glass On the upper edges of the door assembly there are two plastic clips (C in fig. 9). These must be removed by pressing the arrow symbol inwards and then pulling them firmly away from the door assembly in the same direction as the arrows.
- Page 20 Cleaning IMPORTANT • Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply. • If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance. •...
- Page 21 recommend a clean microfibre cloth for cleaning stainless steel surfaces. Grill When used regularly, the grill element does not need cleaning as the intense heat will burn off any splashes. The interior ceiling may need regular cleaning, which should be done with warm water, detergent and a sponge.
- Page 22 Installation This appliance must be installed by a suitably qualified person. The appliance can be installed under a worktop or in a wall unit (open or closed) with the appropriate dimensions for recessed installation. Centre the oven in the unit, ensuring that there is as much of a gap as possible, for ventilation purposes, between the appliance and the surrounding unit.
- Page 23 Fig. 10 Fig. 11...
-
Page 24: Mains Electricity Connection - P24
Mains Electricity Connection Warning! This appliance must be earthed This appliance is supplied with a 3 core mains cable; the wires are in accordance with the following code: 220-240V~50/60Hz Green and Yellow = Earth Blue = Neutral Brown = Live Fig. - Page 25 Please note: • The mains cable must only be replaced by a qualified electrician or service engineer and must be of equivalent or better rating (i.e. 1.5mm , HO5RR-F). FUSE SPUR OUTLET • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the outlet (13A).
- Page 26 Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care, to prevent unnecessary service calls and potential cost. Contact details for CDA Customer Care are on the rear cover of this manual.
- Page 27 If any of the above steps do not resolve your issue, please contact CDA Customer Care to arrange a repair. Contact details are below. Please have to hand all the details from your appliance’s rating plate which can be found on the appliance’s door frame.
- Page 28 Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
