- Page 1 Ceramic Hob Instruction Manual / Installation Manual MODEL: UBTCC60BV UBTCC60BVD UBTCC60MZ...
-
Page 2: Cut Hazard
SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. -
Page 3: Operation And Maintenance
• This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. -
Page 4: Important Safety Instructions
• During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get •... - Page 5 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
- Page 6 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...
-
Page 7: Product Overview

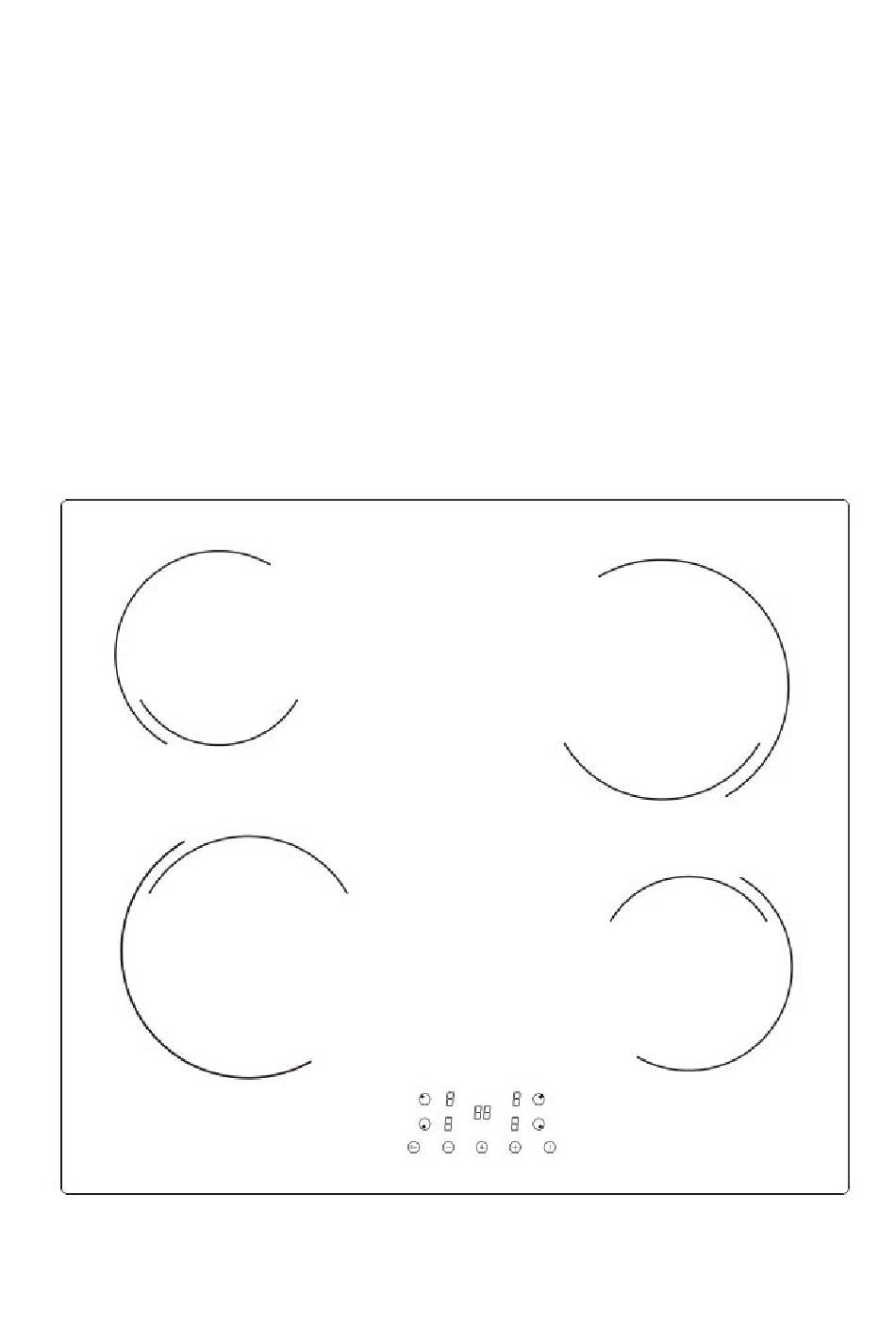

1. max. 1800 W zone 2. max. 1200 W zone 3. max.1800 W zone 4. max.1200 W zone 5. Control panel UBTCC60BV 1. max. 1800 W zone 2. max. 1200 W zone 3. max.1800 W zone 4. max.1200 W zone 5. -
Page 8: Product Information
The Control Pane 1. ON/OFF switch 4. Child lock 2. Select power level 5. Select heating zone 3. Setting the timer 6. Double zone control Product Information The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. -
Page 9: Using Your Hob
Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob –... - Page 10 3. Touching the heating zone selection control, and an indicator next to the key will flash 4. Select a heat setting by touching the “-” or “+” control. • If you don’t choose a heat setting within 1 minute, the Ceramic hob will automatically switch off.
-
Page 11: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control. -
Page 12: Using The Timer As A Minute Minder
Using the Timer You can use the timer in two different ways: · You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. · You can use it as cut-off timer to turn one or more cooking zones off after time is * You can set the timer up to 99 minutes. - Page 13 5. set the time by touching the “-“ or “+” control (e.g.9), now the timer you set is 95 minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. 7.
- Page 14 5. set the time by touching the ”-“ or ”+” control (e.g.9), now the timer you set is 95 minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. NOTE: There will be a red dot in the right bottom corner of power level indication which indicating that zone is selected.
-
Page 15: Cooking Guidelines
Cancelled the timer 1. Touching the heating zone selection control that you want to cancel the timer. 2. Touching the timer control, the indicator will flash. 3. Touch the “-” control to set the timer to ”00”, the timer is cancelled. Cooking Guidelines ke care when frying as the oil and fat heat up very quickly, particularly if you’re using Boost. -
Page 16: Heat Settings
8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. 6. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving. -
Page 17: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling on glass 1. Switch the power to the cooktop off. • When the power to the cooktop is (fingerprints, marks, 2. Apply a cooktop cleaner while the switched off, there will be no ‘hot stains left by food or glass is still warm (but not hot!) surface’... -
Page 18: Hints And Tips
Use cookware with flat and smooth scratched. bases. See ‘Choosing the right Unsuitable, abrasive scourer or cookware’. cleaning products being used. See ‘Care and cleaning’. Technical Specification Ceramic Hob UBTCC60BV UBTCC60BVD Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 6000W Product Size D×W×H(mm) -
Page 19: Selection Of Installation Equipment
Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. Installation Selection of installation equipment • Cut out the work surface according to the sizes shown in the drawing. •... -
Page 20: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements. • the work surface is made of a heat-resistant material. •... - Page 21 locating the fixing brackets • The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. • Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.
-
Page 22: Connecting The Hob To The Mains Power Supply
Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. · If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. - Page 24 For more detailed information about treatment, recovery and recycling of for special treatment is this product, please contact your local city office, your household waste necessary. disposal service or the shop where you purchased the product. User manual of UBTCC60BV&UBTCC60BVD&UBTCC60MZ_V20170424...
