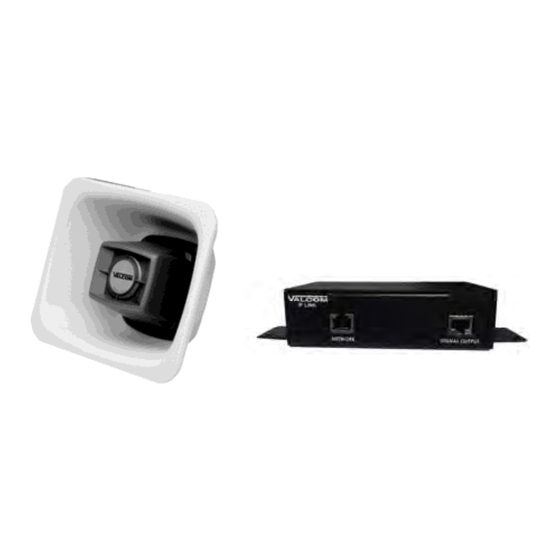

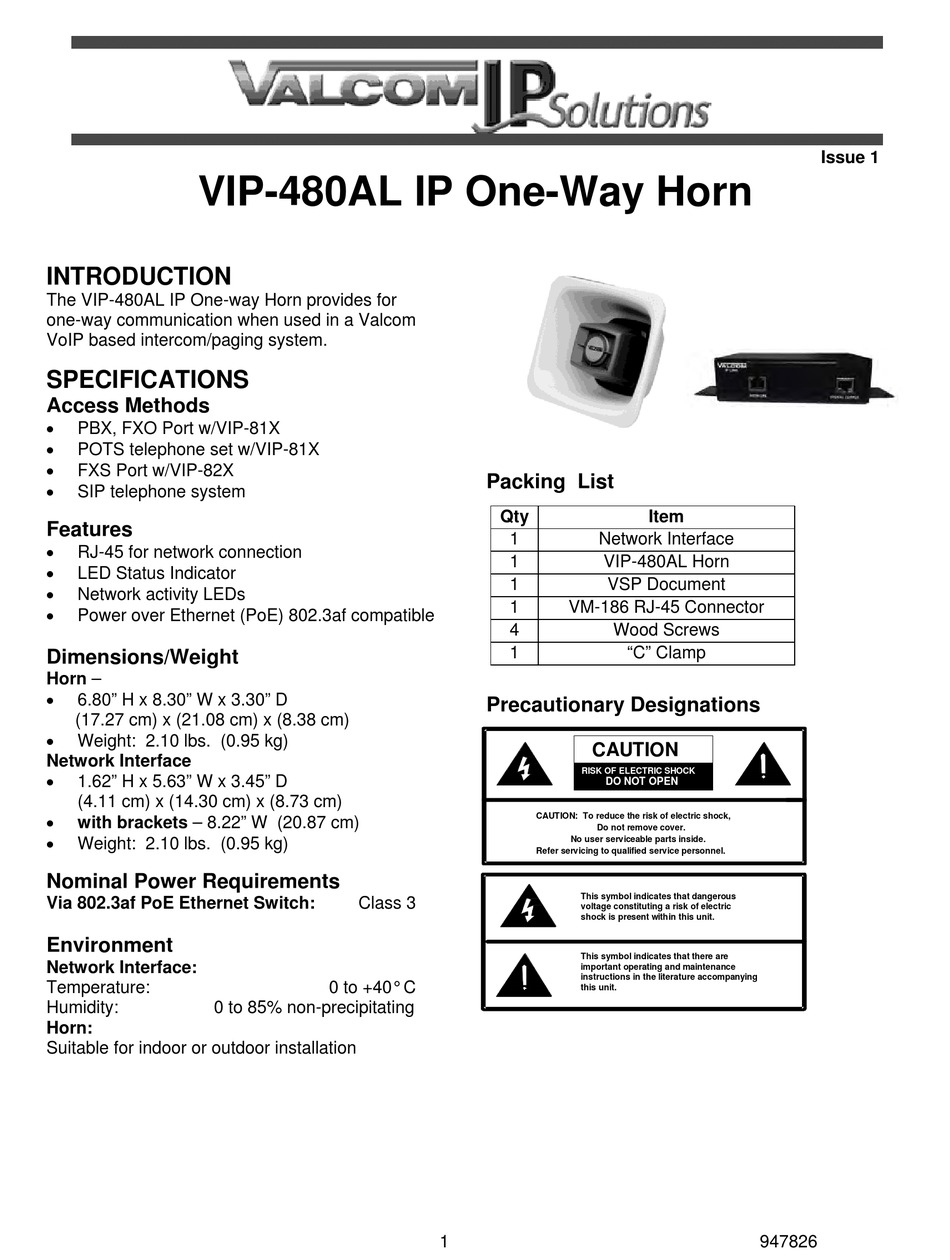

VIP-480AL IP One-Way Horn
INTRODUCTION
The VIP-480AL IP One-way Horn provides for
one-way communication when used in a Valcom
VoIP based intercom/paging system.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VIP-81X
POTS telephone set w/VIP-81X
FXS Port w/VIP-82X
SIP telephone system
Features
RJ-45 for network connection
LED Status Indicator
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
Horn –
6.80" H x 8.30" W x 3.30" D
(17.27 cm) x (21.08 cm) x (8.38 cm)
Weight: 2.10 lbs. (0.95 kg)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
Environment
Network Interface:
Temperature:
Humidity:
0 to 85% non-precipitating
Horn:
Suitable for indoor or outdoor installation
Packing List
Qty
Precautionary Designations
Class 3
0 to +40° C
1
Item
1
Network Interface
1
VIP-480AL Horn
1
VSP Document
1
VM-186 RJ-45 Connector
4
Wood Screws
1
"C" Clamp
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 1
Issue 1
947826
