Table of Contents

SPECIFICATIONS
Access Methods
Singlewire InformaCast server
SIP-enabled telephone system
Features
RJ-45 for network connection
LED Status Indicator
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
Horn
6.8" (17.3 cm) H x 8.3" (21.1 cm)
W x 3.3" D (8.4 cm)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
Environment
VIP-490AL-IC Network Interface
Temperature:
Humidity:
VIP-490AL-IC Horn:
Suitable for indoor or outdoor installation
Packing List
Qty
Item
1
VIP-490AL-IC Network Interface
1
VIP-490AL-IC Horn
1
VSP Document
1
VM-186 RJ-45 Connector
VIP-490AL-IC
IP Talkback Flexhorn
InformaCast® Compliant
Class 3
0 to +40° C
0 to 85% non-precipitating
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses and can radiate radio
frequency energy and if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment
in a residential area may cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
1
Issue 1
Issue 3
947779

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flexhorn VIP-490AL-IC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Valcom Flexhorn VIP-490AL-IC

Summary of Contents for Valcom Flexhorn VIP-490AL-IC

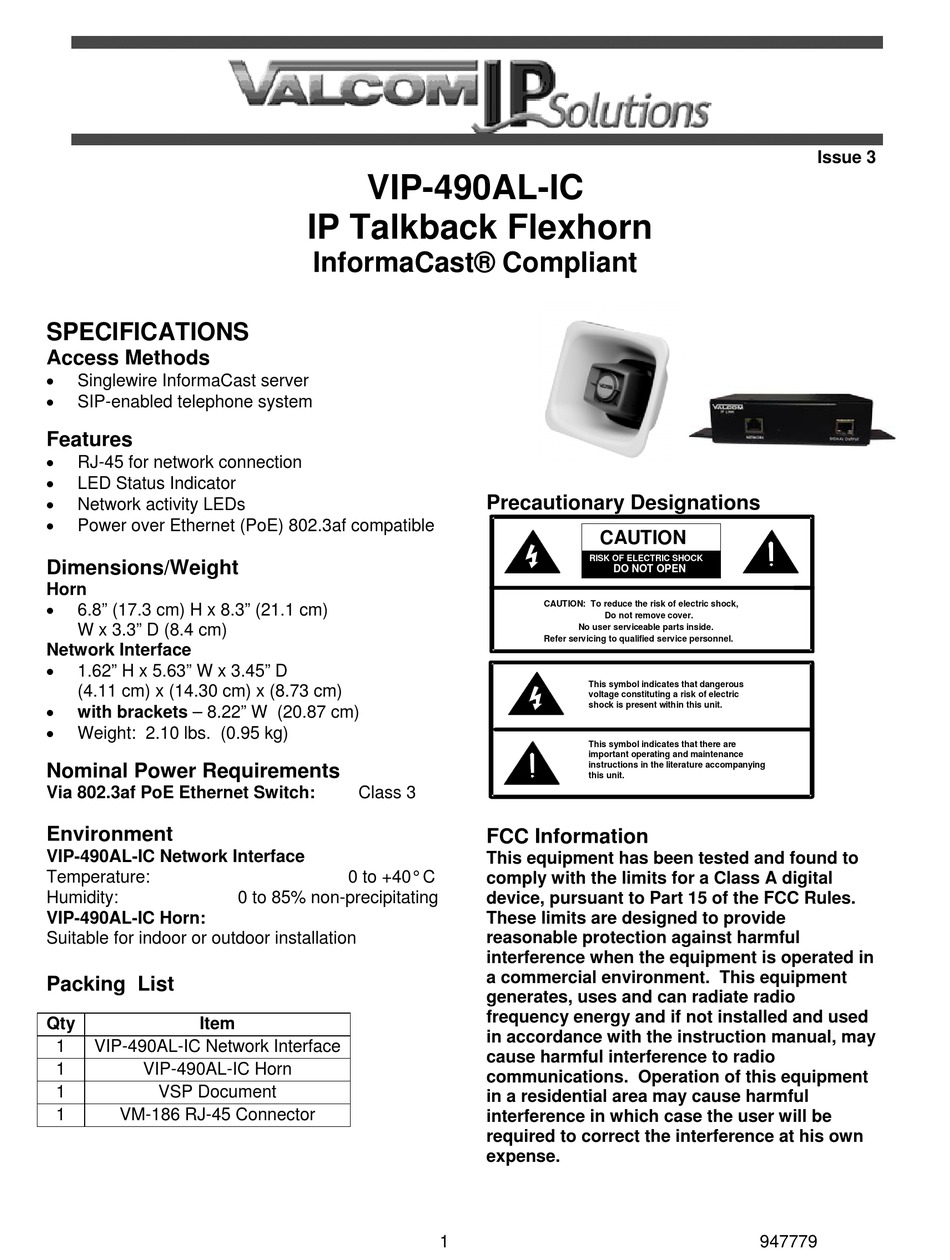

  • Page 1 Issue 1 Issue 3 VIP-490AL-IC IP Talkback Flexhorn InformaCast® Compliant SPECIFICATIONS Access Methods  Singlewire InformaCast server  SIP-enabled telephone system Features  RJ-45 for network connection  LED Status Indicator  Precautionary Designations Network activity LEDs  Power over Ethernet (PoE) 802.3af compatible CAUTION RISK OF ELECTRIC SHOCK Dimensions/Weight...
