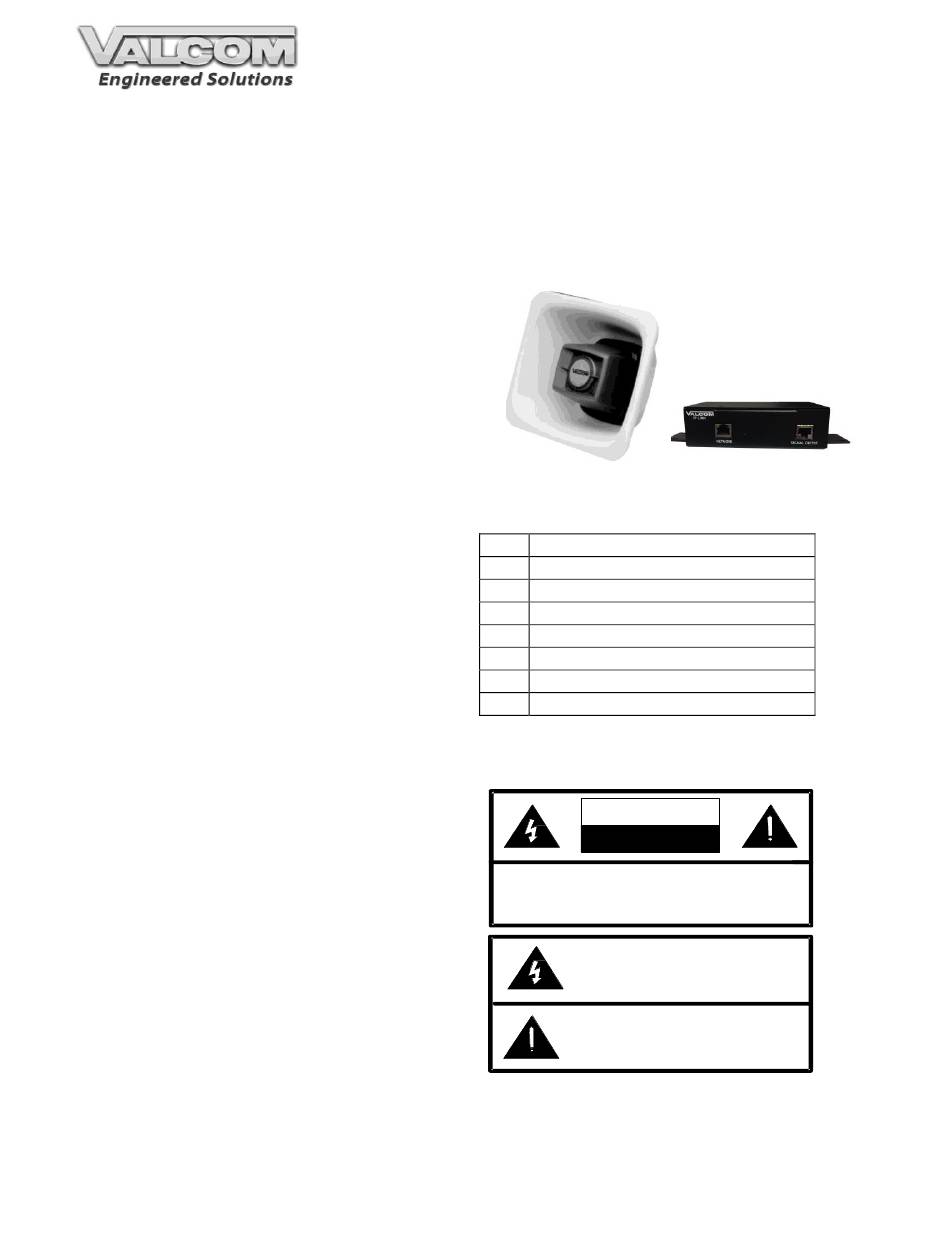

IP PoE Talkback Flexhorn
INTRODUCTION
The VE4090AL IP PoE Talkback Flexhorn provides
for talkback communication when used in a VoIP
based intercom/paging system.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VE801x
POTS telephone set w/VE801x
FXS Port /VE802x
SIP telephone system
VE6025 Applications Server
Features
RJ-45 for network connection
LED Status Indicator
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight VE4080AL
Horn
6.80" H x 8.30" W x 3.30" D
(17.27 cm) x (21.08 cm) x (8.38 cm)
Weight: 2.10 lbs. (0.95 kg)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Network Requirements
Download the latest network requirements from
www.valcom.com/esd.
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
Environment
Network Interface
Temperature:
Humidity:
0 to 85% non-precipitating
PSE: (Power Sourcing Equipment) to be compliant
IEEE 802.3af
Horn:
Suitable for indoor or outdoor installation
VE4090AL
Packing List
Qty
1
1
1
1
4
4
2
Precautionary Designations
Class 3
(12.95W)
0 to +40° C
1
Item
Network Interface
VE4090AL Horn
VSP Document
VM-186 RJ-45 Connector
Rubber Pads
Wood Screws
RJ-45 Patch Cables
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 3
947771

Advertisement

loading
Need help?

Need help?

Do you have a question about the VE4090AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Valcom VE4090AL

  • Page 1 Issue 3 VE4090AL IP PoE Talkback Flexhorn INTRODUCTION The VE4090AL IP PoE Talkback Flexhorn provides for talkback communication when used in a VoIP based intercom/paging system. SPECIFICATIONS Access Methods  PBX, FXO Port w/VE801x  POTS telephone set w/VE801x ...
  • Page 2 Operation of this equipment Mounting in a residential area may cause harmful The VE4090AL Network Interface is designed for interference in which case the user will be wall or table mounting and must be within 100 required to correct the interference at his own meters of the network switch.
  • Page 3 VALCOM LIMITED WARRANTY Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that: 1.
  • Page 4 NETWORK 350' MAXIMUM DISTANCE INTERFACE NETWORK CONNECTION FLEXHORN NETWORK 350' MAXIMUM DISTANCE INTERFACE RJ-45 NETWORK CONNECTION TYPICAL 568B RJ-45 JACK RJ45 FLEXHORN BROWN BROWN BROWN WHITE/BROWN WHITE/BROWN GREEN GREEN WHITE/GREEN WHITE/GREEN ORANGE ORANGE CAT 3/5/6 (OPTIONAL) WHITE/ORANGE WHITE/ORANGE CALL IN SWITCH BLUE BLUE NORMAL OPEN...
  • Page 5 UNIVERSAL BRACKET SURFACE MOUNTED WITH A UNIVERSAL BRACKET WITH CLAMP UNIVERSAL MOUNTING BRACKET "C" CLAMP FOR "I" BEAM MOUNTING ATTACH CLAMP TO HORN ATTACH FLEXHORN TO BEAM FLUSH MOUNT USING MOUNTING SCREWS: FLUSH MOUNTING IN A STUD WALL USING THE TEMPLATE, MARK LOCATION OF INSTALLED WITH MOUNTING SCREWS OPENING AND MOUNTING HOLES ON WALL.
