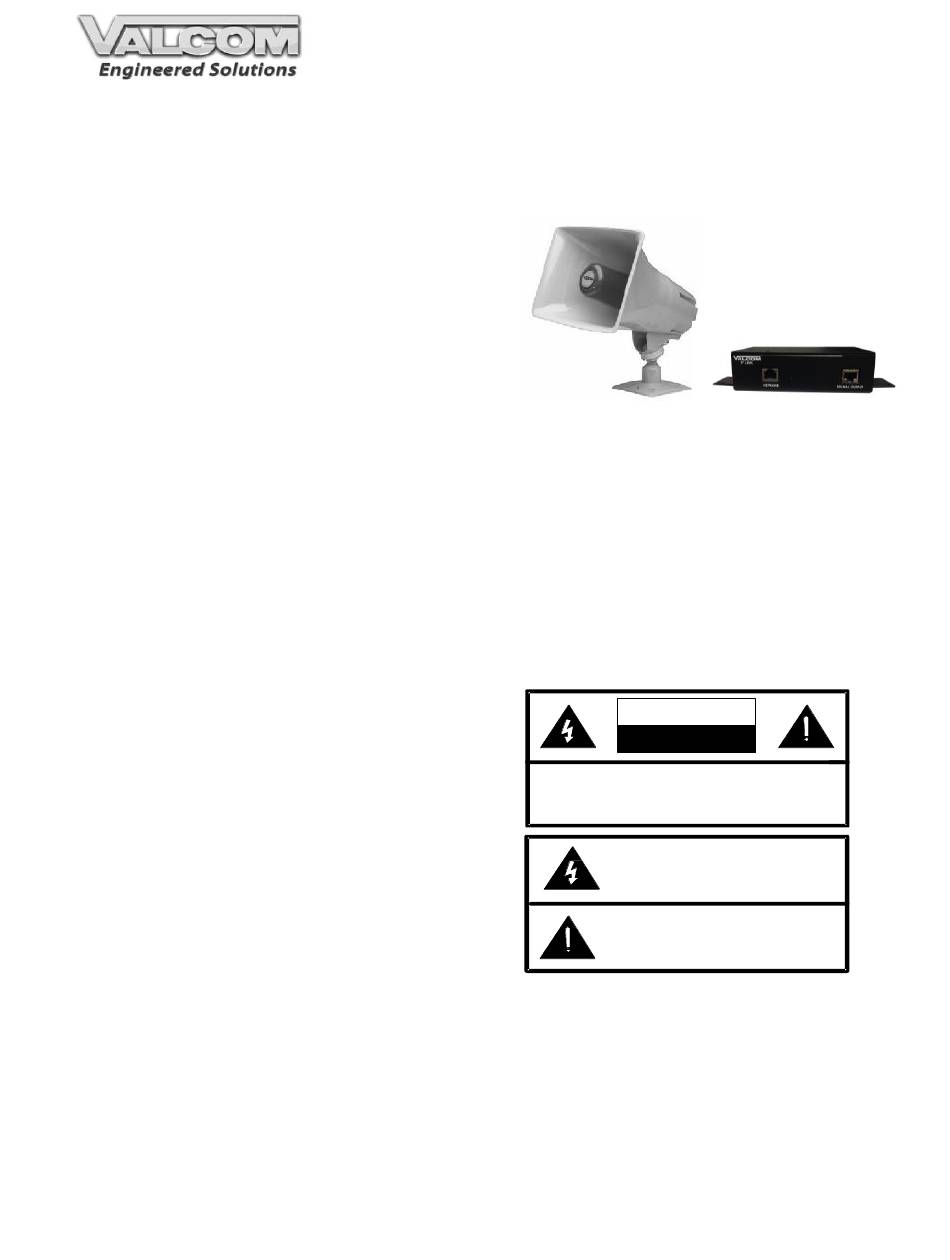

Valcom VE130AL Manual
Valcom VE130AL Manual

Valcom VE130AL Manual

Ip poe one-way horn

Advertisement

Quick Links

INTRODUCTION

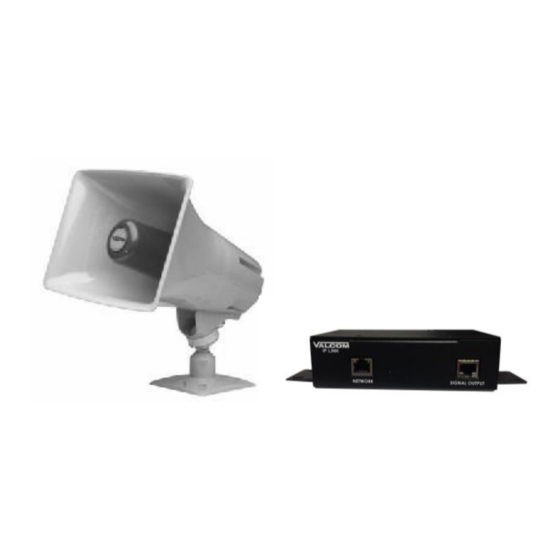

The VE130AL IP PoE One-Way Horn is a self-
contained paging system which enables voice
paging over an IP network. The VE130AL consists
of a high efficiency horn and a Network Interface
allowing stand alone capability when used with a
SIP telephone system or can be accessed from a
variety of Valcom managed VoIP products.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VE8011
POTS telephone set w/VE8011
PBX, FXS Port w/VE8021
Valcom M Cast Page Group
SIP telephone system
Features
RJ-45 network connection
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
Horn - 7.38" H x 10.0" W x 10.4" D
(18.75cm x 25.4cm x 26.42cm)
Weight: 5.60 lbs. (2.54 kg)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Environment
Network Interface:
Temperature:
Humidity:
PSE:
(Power Sourcing Equipment) to be
compliant to IEEE 802.3af
Horn:
Temperature:
Humidity:
VE130AL
IP PoE ONE-WAY HORN
0 to +40° C
0 to 85% non-precipitating
-20 to +55° C
0 to 95% non-condensing
Network Requirements
Download the latest network requirements from
ww.valcom.com/esd.
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
INSTALLATION
Precautionary Designations
CAUTION: To reduce the risk of electric shock,
No user serviceable parts inside.
Refer servicing to qualified service personnel.
1
Issue 4
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Do not remove cover.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
947772
Class 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the VE130AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Valcom VE130AL

  • Page 1 Issue 4 VE130AL IP PoE ONE-WAY HORN INTRODUCTION The VE130AL IP PoE One-Way Horn is a self- contained paging system which enables voice paging over an IP network. The VE130AL consists of a high efficiency horn and a Network Interface...
  • Page 2 Mounting (Horn) IMPORTANT SAFETY INFORMATION The VE130AL Horn is designed for most FD CONSIGNES DE SÉCURITÉ IMPORTANTES 1. Read these instructions. electrical box or wall mounting and must be within Lisez ces instructions. 2. Keep these instructions. 300 meters of the VIP-130AL Network Interface.
  • Page 3 Interconnections The only method of powering the VE130AL IP PoE Horn is via a Power over Ethernet (PoE) switch or power injector meeting the 802.3af specification. Make all required signal connections before connecting to the Ethernet switch or power injector meeting the 802.3af specification.
  • Page 4 VALCOM LIMITED WARRANTY Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that: 1.
  • Page 5 SIDE RJ45 NETWORK CONNECTION HORN HORN SIGNAL CONNECTION SIDE RJ-45 RJ45 Typical 568B RJ45 NETWORK RJ-45 Jack CONNECTION BROWN BROWN BROWN HORN WHITE/BROWN WHITE/BROWN GREEN GREEN CAT 3/5/6 WHITE/GREEN WHITE/GREEN ORANGE ORANGE WHITE/ORANGE WHITE/ORANGE BLUE BLUE WHITE/BLUE WHITE/BLUE BLUE VM-186 *The Maximum Recommended Distance STANDARD RJ45 PATCH CABLE...
