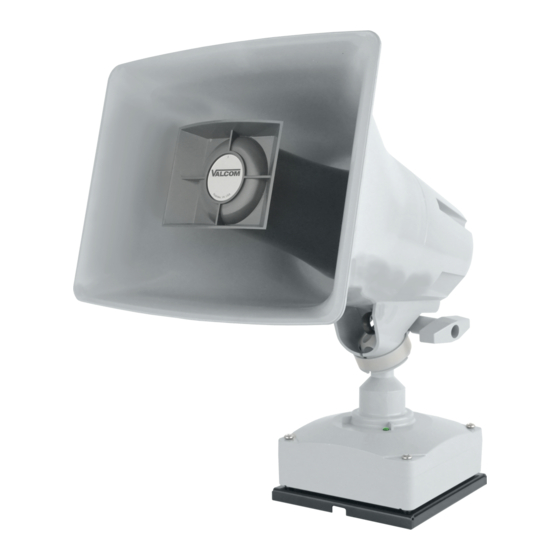

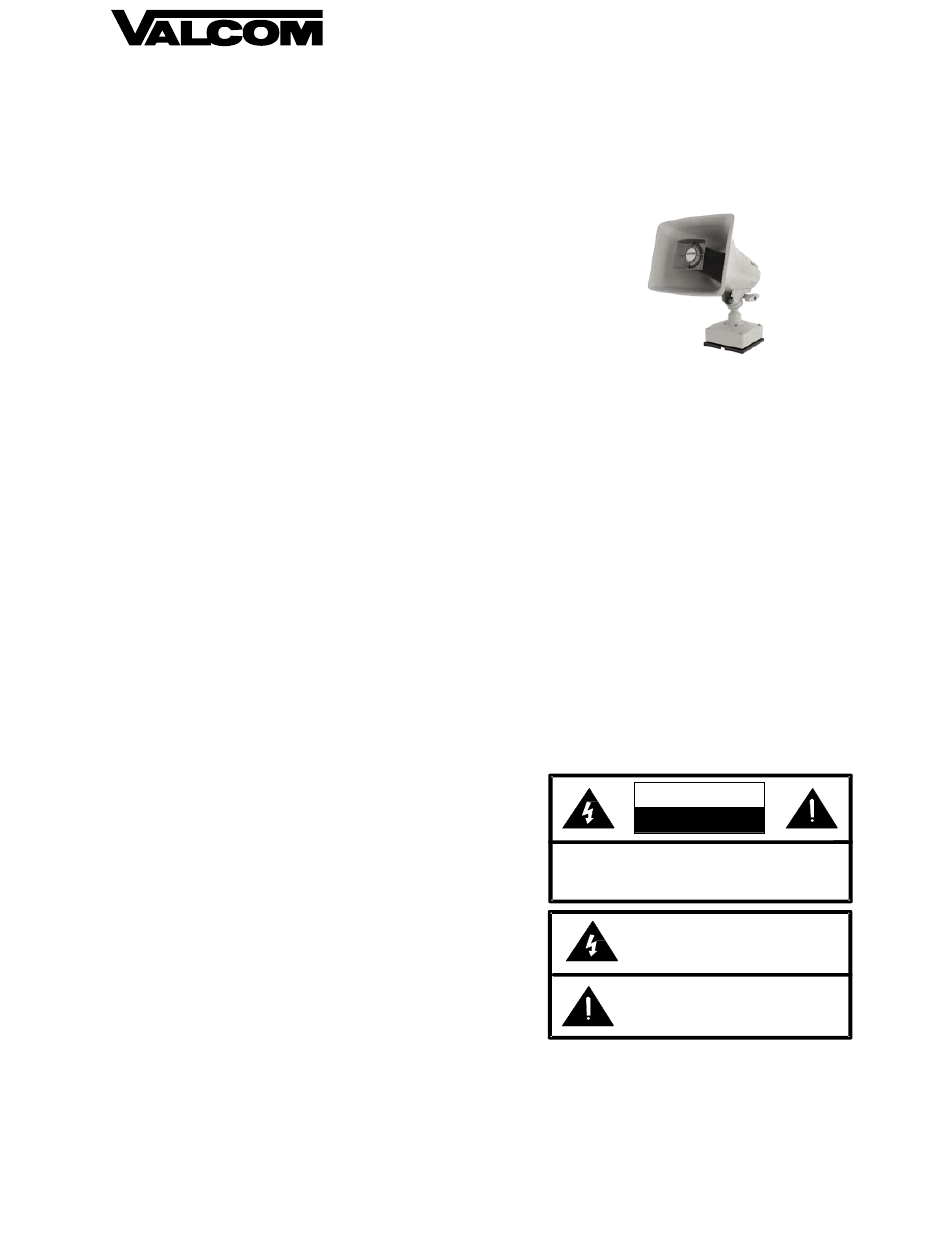

High Power IP Talkback Paging Horn
INTRODUCTION
The VIP-142 IP Paging Horn is a weather-
resistant, high-efficiency horn supporting
multiple audio and control protocols, all
delivered via a PoE-enabled IP network. A
separate microphone facilitates full-duplex
talkback communication. The high-impact
Polycarbonate construction resists the
deteriorating effects of outdoor installation.
SPECIFICATIONS
Access Methods
• SIP telephone system
• Valcom M Cast Page Group
• PBX, FXO Port w/VIP-811A
• POTS telephone set w/VIP-811A
• PBX, FXS Port w/VIP-821A
Features
Indoor / Outdoor use
High Impact Polycarbonate Housing
Omni-Directional Mounting Base
Built-in Microphone
SIP & Multicast Enabled
Power over Ethernet (PoE) 802.3af and
802.3at (PoE+) compatible
Remote Management & Monitoring
Dimensions / Weight
• 11.75" H x 10.0" W x 11.0" D (29.8cm H x
25.4cm W x 27.9cm D)
• 4.3 lbs. (1.95 kg)
Audio Codecs
• G.722, G.711 (uLaw, aLaw)
Frequency Response
• 350 Hz to 7kHz
VIP-142
Audio Dispersion
• 120° Horizontal
• 90° Vertical
Nominal Power Requirements
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24 Vdc, or 48 Vdc (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Environment
Temperature:
Humidity:
CAUTION: To reduce the risk of electric shock,
Refer servicing to qualified service personnel.
1
- 20° to +50° C
0 - 95% non-condensing
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Do not remove cover (or back).
No user serviceable parts inside.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 1
Class 3
Class 4
947103

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP-142 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Valcom VIP-142

  • Page 1 Issue 1 VIP-142 High Power IP Talkback Paging Horn INTRODUCTION The VIP-142 IP Paging Horn is a weather- resistant, high-efficiency horn supporting multiple audio and control protocols, all delivered via a PoE-enabled IP network. A separate microphone facilitates full-duplex talkback communication. The high-impact Polycarbonate construction resists the deteriorating effects of outdoor installation.
  • Page 2: Installation

    This equipment has been tested and found Mounting to comply with the limits for a Class A digital The VIP-142 is shipped with two screws holding device, pursuant to Part 15 of the FCC Rules. the mounting base to the horn. Remove the two These limits are designed to provide screws and save them for reassembly.
  • Page 3: Reset Modes

    9 more times, for a total of 10 starts. On phone number, contact person, and the nature the next boot up, the VIP-142 will reset all of the problem. configuration items (including the password) to Send the unit to: factory default settings.
  • Page 4 Figure 2. Figure 3. Interior Mounting 947103...
  • Page 5 Figure 4. Exterior Mounting Figure 5. Interior I-Beam Mounting 947103...
