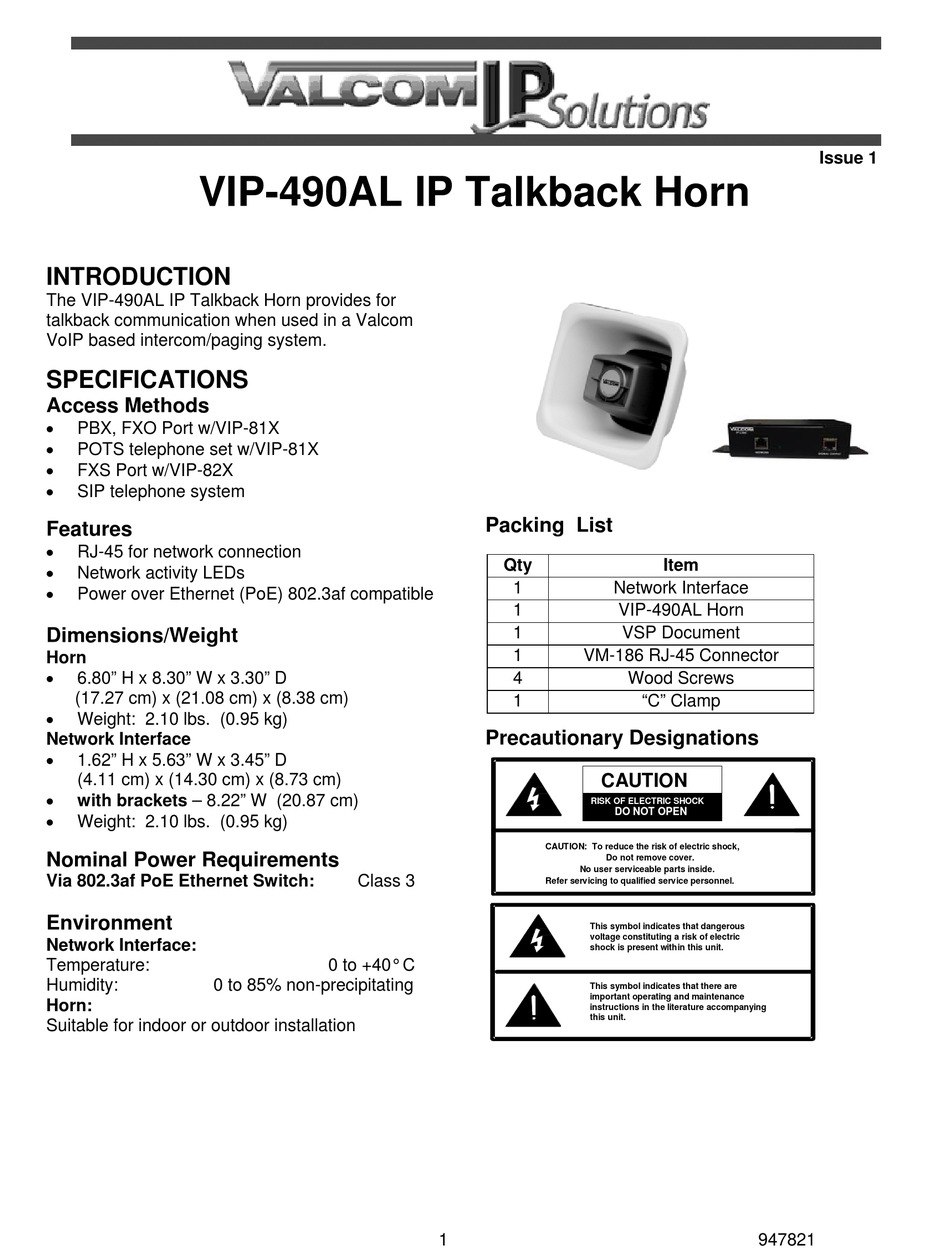

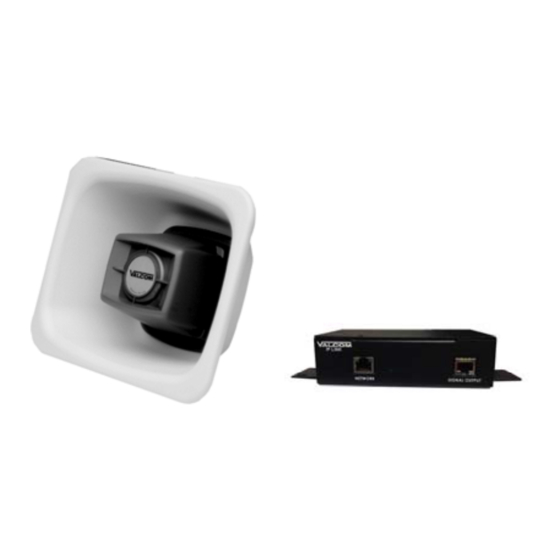

VIP-490AL IP Talkback Horn
INTRODUCTION
The VIP-490AL IP Talkback Horn provides for
talkback communication when used in a Valcom
VoIP based intercom/paging system.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VIP-81X
POTS telephone set w/VIP-81X
FXS Port w/VIP-82X
SIP telephone system
Features
RJ-45 for network connection
Network activity LEDs
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
Horn
6.80" H x 8.30" W x 3.30" D
(17.27 cm) x (21.08 cm) x (8.38 cm)
Weight: 2.10 lbs. (0.95 kg)
Network Interface
1.62" H x 5.63" W x 3.45" D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22" W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
Environment
Network Interface:
Temperature:
Humidity:
0 to 85% non-precipitating
Horn:
Suitable for indoor or outdoor installation
Packing List
Qty
Precautionary Designations
Class 3
0 to +40° C
1
Item
1
Network Interface
1
VIP-490AL Horn
1
VSP Document
1
VM-186 RJ-45 Connector
4
Wood Screws
1
"C" Clamp
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 1
Issue 1
947821

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP-490AL and is the answer not in the manual?

Questions and answers

Summary of Contents for Valcom VIP-490AL

  • Page 1 Issue 1 Issue 1 VIP-490AL IP Talkback Horn INTRODUCTION The VIP-490AL IP Talkback Horn provides for talkback communication when used in a Valcom VoIP based intercom/paging system. SPECIFICATIONS Access Methods  PBX, FXO Port w/VIP-81X  POTS telephone set w/VIP-81X ...
  • Page 2: Installation

    Flush Mount using Mounting Screws Status Indicator Lights The cardboard packing material in which the horn is The VIP-490AL has 2 status indication lights on the shipped also serves as the template for flush front panel: mounting. Using the template, mark location of opening and mounting holes on wall.
  • Page 3: Technical Assistance

    VIP-490AL. Setup will be done using the VIP-102B the problem. Send the unit to: IP Solutions Setup Tool. Download the latest Valcom, Inc.
  • Page 4 VALCOM LIMITED WARRANTY Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that: 1.
  • Page 5: Other Mounting Options

    UNIVERSAL BRACKET SURFACE MOUNTED WITH A UNIVERSAL BRACKET WITH CLAMP UNIVERSAL MOUNTING BRACKET "C" CLAMP FOR "I" BEAM MOUNTING ATTACH CLAMP TO HORN ATTACH FLEXHORN TO BEAM FLUSH MOUNT USING MOUNTING SCREWS: FLUSH MOUNTING IN A STUD WALL USING THE TEMPLATE, MARK LOCATION OF INSTALLED WITH MOUNTING SCREWS OPENING AND MOUNTING HOLES ON WALL.
