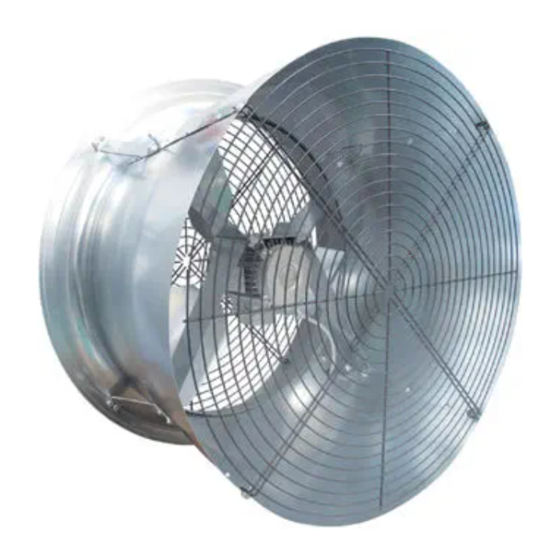

- Page 1 EDC24HE EDC18HE Manual for use and maintenance + CE Declaration of conformity EDC24HE - EDC18HE Air circulation fan Ag/MIT/UmEN-2165-12/13 rev 1.0...
- Page 2 Munters Italy S.p.A. reserves the right to effect modifications to the apparatus in accordance with technical and legal developments.
- Page 3 4.2 Non-permitted conditions of use INSTALLATION 5.1 Choice of site and checking installation requirements 5.2 Installing Series EM fans 5.3 Connection to the electrical system 5.4 Tests and checks before startup COMMISSIONING 6.1 Control devices 6.2 Instructions for machine use © Munters AB, 2013...
- Page 4 Index TECHNICAL DATA 7.1 Dimensions 7.2 Technical specifications 7.3 Motor specifications MAINTENANCE 8.1 Introduction 8.2 Cleaning 8.3 Replacement of propeller 8.4 Replacement of motor SPARE PART LIST WARRANTY © Munters AB, 2013...
-
Page 5: Ce Declaration Of Conformity
DECLARES ON ITS OWN RESPONSIBILITY THAT THE APPARATUS Fan designed for moving air to control temperature and Designation humidity in greenhouses or rearing sheds. Model EDC24HE - EDC18HE Year of manufacture 2013 CONFORMS WITH THE ESSENTIAL SAFETY REqUIREMENTS STATED BY APPARATUS DIRECTIvE 2006/42/EC AND PERFORMANCE REqUIREMENTS COMPLY WITH THE ERP DIRECTIvE 2009/125/CE. -
Page 6: Attached Technical Documentation
The information contained herein has been prepared by qualified experts within Munters. While we believe the information is accurate and complete, we make no warranty or representation for any particular purposes. The information is offered in good faith and with the understanding that any use of the units or accessories in breach of the directions and warnings in this document is at the sole discretion and risk of the user. -
Page 7: Safety Aspects
Unauthorized tampering/replacement of one or more parts of the machine, or the use of accessories, tools or materials other than those recommended by the Warning manufacturer, are prohibited and release the manufacturer from all liability. © Munters AB, 2013... -
Page 8: General Safety Instructions
(emergency system activated and electricity and hydraulic fluid Warning isolated). At the end of maintenance operations, the guards which were removed must be replaced correctly. © Munters AB, 2013... - Page 9 1 Dimensions and positioning in accordance with the instructions Guard of fixed type made of metal Outlet side of fan in the standard UNI EN 13857. mesh. Removable only by means of special tool fig. 2 © Munters AB, 2013...
-
Page 10: Residual Risks
(danger resulting from the presence of live parts), the level of voltage present, the prohibition of tampering by unauthorized personnel and the prohibition on the use of liquids on electrical apparatus in the event of fire. © Munters AB, 2013... - Page 11 Safety aspects Hazards generated by noise (measured at 2m distance) Fan model Sound pressure level Lp [dB(A)] EDC24HE - 0.50 hp - 4 poles 79.5 EDC18HE - 0.33 hp - 4 poles 72.9 EDC18HE - 0.15 hp - 6 poles 62.9...
-
Page 12: Before Using
• propeller with three blades in stainless or zinc magnesium galvanised steel; blades are fixed to the propeller by high-strength pop rivets; • asynchronous three-phases motor; 50 or 60 Hz; B3 form; F class winding insulation, IP55 protection class; single-speed. © Munters AB, 2013... -
Page 13: Operating Conditions
• use in the event of faults and/or tampering with the installed safety devices; • use by personnel not specifically trained; • installation of the fan for extraction or circulation under pressure; • use contrary to existing regulations; • incorrect installation differing from instructions given in this manual; © Munters AB, 2013... - Page 14 Interference with the command and control circuits is prohibited: such operations Warning could cause damage to the equipment and serious danger to the operator. © Munters AB, 2013...
- Page 15 Emission into the atmosphere of harmful particles or gases must be contained within the limits established by current regulations. The fan has been designed and built in such a way that it CANNOT operate in a Warning classified area, according to directive 1999/92/EC. © Munters AB, 2013...
-
Page 16: Choice Of Site And Checking Installation Requirements
The area adjacent to the fan in the premises from which air is being extracted must be kept clear to allow the air to exit freely. It is also prohibited for anyone to remain in this area, because of the presence of organic gases and dust which may be present in the airflow © Munters AB, 2013... -
Page 17: Connection To The Electrical System
The need to fit a switch of differential type depends on the configuration of the electrical system supplying the fan: it is the installer’s responsibility to make this assessment in accordance with the instructions in standard IEC 60364. © Munters AB, 2013... - Page 18 Before activating the electrical supply to the machine by turning the isolator switch to position On, a series of checks must be made: • check that the voltage and frequency of the power source correspond to those indicated in the equipment technical data and electrical diagram; © Munters AB, 2013...
- Page 19 • check the fan visually, verifying that there are no particular mechanical irregularities or foreign bodies inside the structure; • check that the protective structures (fixed guards made of metal mesh) are correctly positioned and fixed; • check that the emergency stop function actuator operates correctly. © Munters AB, 2013...
- Page 20 • check that the guards inside the electrical panel are correctly positioned and fixed; • check that the safety devices are receiving power and are active, and check their effectiveness. After this series of checks has been carried out, the fan is ready for its first startup. © Munters AB, 2013...
-
Page 21: Control Devices
In the event that the fan does not need to be used for an extended period of time, the following stop procedure must be used: • operate the stop button • operate the emergency stop button; • open the main isolator switch (position “0”) on the electrical panel and attach a padlock to the actuator. © Munters AB, 2013... - Page 22 After an emergency stop, the operating cycle must be reset by following the procedure described below: • reset the actuator by which the emergency stop command was given (by turning the relative mushroom button); • for an exact reset sequence, refer to the instructions given in section 6.1. © Munters AB, 2013...
-
Page 23: Technical Data
Technical data 7.1 Dimensions EDC24HE fig.7 EDC18HE fig.8 Model ØA ØB EDC24HE EDC18HE © Munters AB, 2013... -
Page 24: Technical Specifications
230/400 2.4/1.4 1,630 0.33 single 230/400 1.35/0.78 1,370 0.33 single 230/400 1.3/0.75 1,650 single 0.33 multi 1,320 (triac) 0.15 single 230/400 1.2/0.7 * Multi speed motors must be regulated with auto-transformer which is not supplied. © Munters AB, 2013... -
Page 25: Maintenance
In this particular event the manufacturer refuses all responsibility on consequent damages caused to things and people and considers any kind of warranty lost. © Munters AB, 2013... - Page 26 1. Follow the procedure illustrated to remove the propeller and then turn the fan upsdie-down. In this way the motor will not fall down when you will remove the bolts & screws as indicated at point 2. fig. 12 © Munters AB, 2013...
- Page 27 • unpack the components to permit air circulation between the surfaces; noTe • stack the components to allow water to drain out; • keep the packed components in such way to prevent moisture contact with the galvanized surface. © Munters AB, 2013...
-
Page 28: Spare Part List
Spare part list EDC24HE fig.16 © Munters AB, 2013... - Page 29 MOTOR TYPE 18° 3-PHASE 50HZ ONE SPEED - 0.37KW/0.50HP 4P 18° 3-PHASE 50HZ MULTI-SPEED - 0.37KW/0.50HP 4P ZINC AISI 430 MAGNESIUM 12° ONE-PHASE 50HZ ONE SPEED/MULTI-SPEED - 0.37KW/0.50HP 4P 12° 3-PHASE 60HZ ONE SPEED - 0.55KW/0.75HP 4P © Munters AB, 2013...
- Page 30 Chapter9 Spare part list Chapter9 Spare part list EDC18HE 18 19 fig.17 © Munters AB, 2013...
- Page 31 3-PHASE 50HZ ONE SPEED - 0.25KW/0.33HP 4P 18° ONE-PHASE 50HZ ONE SPEED - 0.25KW/0.33HP 4P 18° ZINC AISI 430 MAGNESIUM 3-PHASE 60HZ ONE SPEED - 0.25KW/0.33HP 4P 12° 3-PHASE 50HZ ONE SPEED - 0.18KW/0.25HP 6P 18° © Munters AB, 2013...
-
Page 32: Warranty And Technical Assistance
Munters plant was required: if this is not done, the user is fully responsible for the damage which they could suffer. - Page 33 Requests for technical assistance and spare parts must be made directly to the manufacturer, at the following address: Munters Italy S.p.A Strada Piani, 2 18027 Chiusavecchia (IM), Italy Tel: +39 0183 52 11 Fax: +39 0183 521 333 info@munters.it © Munters AB, 2013...
- Page 34 Munters Brasil Industria e Comercio Ltda, Phone +55 41 3317 5050, Canada Munters Corporation Mason, Phone +1 517 676 7070, China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone +86 10 80 418 000, Denmark Munters A/S, Phone +45 9862 3311, India...
