- Page 1 Manual for use and maintenance EDC GHp Air circulation fan Models: EDC18 GHp - EDC24 GHp Ag/MIT/UmEN-2752-02/20 Rev 1.0...
- Page 2 Munters Italy S.p.A. reserves the right to effect modifications to the apparatus in accordance with technical and legal developments and to make alterations to specifications, quantities, etc., for production or other reasons, subsequent to...
-
Page 3: Table Of Contents
8. MAINTENANCE ..................21 SPARE PART LIST ..................22 Exploded view - EDC18 GHp .................. 22 Spare parts - EDC18 GHp ..................23 Exploded view - EDC24 GHp .................. 24 Spare parts - EDC24 GHp ..................25 © Munters AB, 2020... -
Page 4: Introduction
Munters fans. 1.3 Notes Date of release: 2020. Munters cannot guarantee to inform users about the changes or to distribute new manuals to them. All rights reserved. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of Munters. -
Page 5: Safety Aspects
WARNING Operators must be trained to deal with the occurrence of possible faults, malfunctions or dangerous conditions to themselves or others, and in such an event must: © Munters AB, 2020... -
Page 6: General Safety Instructions
© Munters AB, 2020... -
Page 7: Residual Risks
(danger resulting from apparatus. the presence of live parts), the level of voltage present, prohibition tampering by unauthorized personnel and the prohibition on the use of liquids on electrical apparatus in the event of fire. © Munters AB, 2020... - Page 8 The fan must only be used if it is in perfect operating condition, by personnel, aged more than 14 years who are perfectly aware of the safety measures and possible hazards, and in strict compliance with the instructions given in this manual. © Munters AB, 2020...
-
Page 9: Before Using

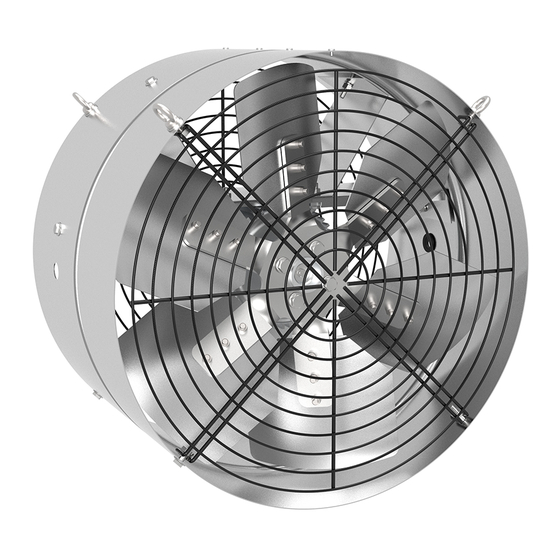

• riveted sheet body in Munters Protect coated steel without welding spots; • propeller with six blades in Munters Protect coated steel; blades are fixed to the propeller by high-strength pop rivets; • asynchronous three-phases electric motor (single-phase on request), 50/60 Hz, IP55 protection class, fixed or adjustable speed;... -
Page 10: Operating Conditions
The following uses are to be considered not permitted and improper: • use in the event of faults and/or tampering with the installed safety devices; • use by personnel not specifically trained; • installation of the fan for extraction or circulation under pressure; © Munters AB, 2020... - Page 11 EC declaration of conformity: it is up to the person responsible for the modification to resubmit the machine to the assessment conformity procedures specified in the applicable directives. © Munters AB, 2020...
- Page 12 Whenever it is intended to use the fans in ambients characterized by the presence of particularly aggressive agents (ammonia, clavulanic acid, etc.) the user, before installing the fan at the installation site must verify that the environmental conditions are compatible with the intended use of the materials that compose the fan. © Munters AB, 2020...
-
Page 13: Installation
WARNING Always check up if cable and chain dimensions are suitable to hold up the fans weight and if they have the proper length to distribute the strain uniformly (fig.1). © Munters AB, 2020... -
Page 14: Connection To The Electrical System
The need to fit a switch of differential type depends on the configuration of the electrical system supplying the fan: it is the installer’s responsibility to make this assessment in accordance with the instructions in standard IEC 60364. fig.3 © Munters AB, 2020... - Page 15 Below are suggested wiring diagrams for connecting the fan to the mains electrical supply. These diagrams are however subject to local laws and regulations and should be modified if necessary to comply with such laws and regulations. fig.3 © Munters AB, 2020...
- Page 16 • check that the protection devices (fuses, magnetothermic switches) are correctly sized, and that the phases are connected in the correct order. © Munters AB, 2020...
-
Page 17: Use
It is necessary to perform periodic cleaning of safety meshes, airflow rectifier and blades using brushes or compressed air. WARNING In order to avoid any damage, cleaning the motor directly with water jets must be avoided. © Munters AB, 2020... -
Page 18: Commissioning
Wait until the electrical power has been switched off and the fan has come to a complete stand still. Lock the electrical switch in the off position with a pad lock while working on the fan. © Munters AB, 2020... -
Page 19: Technical Data
7. TECHNICAL DATA 7.1 Dimensions Dimensions fig.6 EDC24 GHp EDC18 GHp © Munters AB, 2020... -
Page 20: Motor Specifications
IP55 Electric motor winding insulation grade Max noise level at 1.95 m 75.8 75.5 76.5 * The value refers to 3 phases 50Hz single speed motors. Note: airflow data are measured at standard conditions (20°C, 1,013hPa) © Munters AB, 2020... -
Page 21: Maintenance
• check the absence of electrical continuity between the terminals upstream and downstream the thermo-magnetic switch; in case of electrical continuity replace the switch; • close the electrical control panel; • switch on the fan. © Munters AB, 2020... -
Page 22: Spare Part List
SPARE PART LIST Exploded view - EDC18 GHp © Munters AB, 2020... -
Page 23: Spare Parts - Edc18 Ghp
D5 SPRING WASHER D5x20 PLAIN WASHER POP UP RIVET D3.9x7 ALU HOUSING M6 HEX NUT RUBBER FOR CABLE M6x25 HEX SCREW W/FLANGE MOTOR D6 SPRING WASHER MOTOR PLATE D6 SPRING WASHER MOTOR PLATE SUPPORT D6x18 PLAIN WASHER © Munters AB, 2020... -
Page 24: Exploded View - Edc24 Ghp
Exploded view - EDC24 GHp © Munters AB, 2020... -
Page 25: Spare Parts - Edc24 Ghp
PROPELLER M8 HEX NUT MOTOR PLATE SUPPORT RUBBER FOR CABLE HOUSING POP UP RIVET D3.9x7 ALU M6x25 HEX SCREW W/FLANGE D8 SPRING WASHER MOTOR PLATE MOTOR ALUMINIUM HUB WASHER D8X32 D6 SPRING WASHER M6X20 HEX SCREW © Munters AB, 2020... - Page 26 +90 262 7513 750, info@muntersform.com, Phone +1 517 676 7070, aghort.info@munters.com, Export & Other countries Phone +39 0183 5211, info@munters.it Munters reserves the right to make alterations to specifications, quantities, etc., for production or other reasons, subsequent to publication © Munters AB, 2020...
