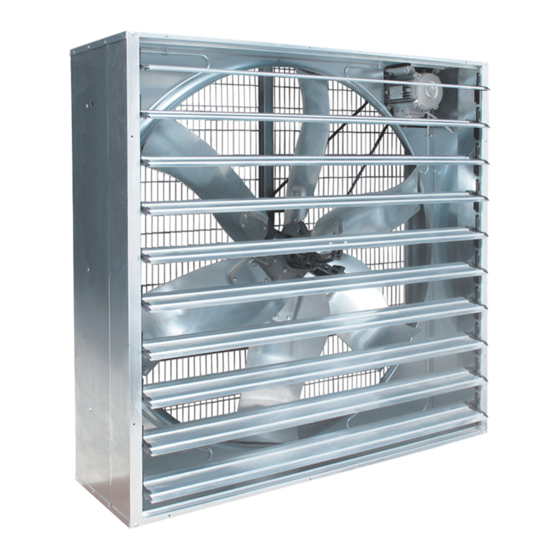

Munters EM52 Assembly Manual

Exhaust fan
Hide thumbs Also See for EM52:
Table of Contents

Advertisement

Quick Links

See also: Use and Maintenance Manual
EM52
Spare Part List + Assembling guideline
EM52
Exhaust fan
Ag/MIT/IGB-2207-09/14 rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Munters EM52

Summary of Contents for Munters EM52

  • Page 1 EM52 Assembly manual Spare part list + Assembling guideline EM52 Exhaust fan Ag/MIT/IGB-2207-09/14 rev 1.0...
  • Page 2 Munters Italy S.p.A. reserves the right to effect modifications to the apparatus in accordance with technical and legal developments.
  • Page 3 Index chapter page SPARE PART LIST EM52 exploded view Spare parts ASSEMBLING TOOLS ASSEMBLING GUIDELINES Housing assembling Centrifugal system and pulley to propeller assembling Shutter blades assembling Motor assembling CE Kit assembling Optional pyramidal shape mesh assembling All the components and spare parts MUST be storaged in dry and clean WARNING environment.
  • Page 4 Spare part list EM52 fig.1 © Munters AB, 2014...

  • Page 5: Spare Parts

    Chapter1 Spare part list Spare parts Ref. Picture Description Q.ty SIDE PANEL CARTER THREADED BUSH M8X12.5 TOP PANEL CENTRAL SUPPORT V-BELT A90 HEXAGONAL NUT M8 CONVEYOR © Munters AB, 2014...
  • Page 6 Chapter1 Spare part list MOTOR EXT TOOTHED WASHER D8 HEXAGON SCREW M8x25 PLASTIC FORK HEXAGON NUT M6 THIN HEXAGONAL SCREW M6X16 STOP COLLAR D7X17 CENTRAL RIGHT BEARING RIGHT BEARING © Munters AB, 2014...
  • Page 7 Chapter1 Spare part list LEFT BEARING PYRAMIDAL REAR SAFETY MESH TIE ROD CENTRAL LEFT BEARING SHUTTER BLADE CENTRAL SHUTTER BLADE KNURLED AXLE HEXAGON SOCKET HEAD CUP SCREW M8X55 PLAIN WASHER D8,4X17 © Munters AB, 2014...
  • Page 8 Chapter1 Spare part list CENTRIFUGAL SYSTEM PROPELLER HEXAGONAL NUT M10 COMPLETE CENTRAL HUB HEXAGONAL SCREW M6X30 HEXAGONAL NUT M6 WITH FLANGE CENTRAL PULLEY WATERPROOF DISTANCE PIECE HEXAGONAL NUT M25 © Munters AB, 2014...
  • Page 9 Chapter1 Spare part list EXT TOOTHED WASHER D10,5X18 OVAL PLATE HEXAGON SOCKET COUNTERSUNK SCREW M10X30 SPRING HOOK BOTTOM PANEL POP UP RIVET D4.8X7 THREADED BUSH D8X17.5 RUBBER GROMMET CAP COVER NUT © Munters AB, 2014...
  • Page 10 Chapter1 Spare part list REAR SAFETY MESH METAL CLIP FOR MESHES PLAIN WASHER D6X24 + SEALING SELF TAPPING SCREW D6.3X19 PLASTIC CLIP FOR MESHES HEXAGONAL SCREW M8X16 PLAIN WASHER D8X32 © Munters AB, 2014...
  • Page 11 SAFETY PROTECTION FOR MOTOR (OPTIONAL) METAL CLIP FOR SAFETY PROTECTION FOR MOTOR (OPTIONAL) SAFETY PROTECTION FOR V-BELT (OPTIONAL) SELF TAPPING SCREW 6.3X19 (OPTIONAL) EUROEMME STICKER 18X131 WARNING STICKER A-1997 35X210 WARNING STICKER B-1997 70X105 PRODUCT LABEL G-1998 95X115 © Munters AB, 2014...
  • Page 12 Chapter1 Spare part list NO HIGH PRESSURE STICKER 42X118 MUNTERS PROTECT STICKER 70X46 © Munters AB, 2014...
  • Page 13 Assembling tools Ref. Picture Description Q.ty RIVETING MACHINE RAC171 INSERTING MACHINE KJ 45 PNEUMATIC SCREWDRIVER 17mm SPANNER 10mm LONG SPANNER 13mm LONG SPANNER 6mm LONG ALLEN SPANNER © Munters AB, 2014...
  • Page 14 Chapter2 Assembling tools 36mm SPANNER PHILLIPS SCREW HEAD ADAPTOR 13mm RING SPANNER SMALL HAMMER 10mm COMBINATION SPANNER SCREWDRIVER RATCHET DRIVE EXTENSION 17MM COMBINATION SPANNER © Munters AB, 2014...
  • Page 15 (ref. 41) for each edge by using riveting machine (ref. 1/Assembling Tools). Insert Venturi (ref. 8) into the housing on the right side as in the picture. Fix Venturi to bottom panel and then to side panels with qty.1 pop rivets for side. © Munters AB, 2014...
  • Page 16 4 screws (ref. 30), qty. 2 oval plates (ref. 7), qty. 4 toothed washers (ref. 36) and qty. 4 nuts (ref. 29). Place the oval plates between propeller central support and panels. © Munters AB, 2014...
  • Page 17 CENTRIFUGAL SYSTEM AND PULLEY TO PROPELLER ASSEMBLING Place the pulley on the hub (ref. 30) and insert the screws (ref. 31). Turn the pulley plus the hub upside down, insert the nuts with flange (ref. 32) over the screws. © Munters AB, 2014...
  • Page 18 (ref. 7) in order to fix the propeller. Tighten the nuts by using pneumatic screwdriver (ref. 3/Assembling tools). Place screws (ref. 25) and plain washer (ref. 26) on the centrifugal system (ref. 27) and then place it on the propeller. © Munters AB, 2014...
  • Page 19 Place V-belt (ref. 6) on the pulley and then rotate the propeller clock-wise in order to tighten the V-belt on the pulley. Check tensioning: right tensioning is obtained when maximum deflexion on one side only (half-way from motor and central pulley) is about 15 mm. © Munters AB, 2014...
  • Page 20 (ref. 11/Assembling tools). Insert the spring hooks (ref. 39) in the holes of the side panels (ref. 1). Insert the free terminal of the spring on the hook. © Munters AB, 2014...
  • Page 21 (ref. 48) with pneumatic screwdriver (ref. 3/Assembling tools). REAR SAFETY MESHES ASSEMBLING Turn the fan upside down and insert the electric cable into the proper hole placed on the side panel. © Munters AB, 2014...
  • Page 22 (ref. 3/Assembling tools). CE KIT ASSEMBLING Before assembling the safety meshes complete the CE kit. Join the plastic safety protection for central pulley (ref. 52/A) with plastic safety protection for the V-belt (ref. 52/D). © Munters AB, 2014...
  • Page 23 The rectangular holes must be positioned horizontally. Fix it to the bottom and top panels by means of qty. 10 plastic clips and qty. 10 screws (ref. 48). The plastic clips must be fixed in the position as in the picture. © Munters AB, 2014...
  • Page 24 Chapter3 Assembling guidelines Fix it by using a pneumatic screwdriver (ref. 3/ Assembling tools). © Munters AB, 2014...
  • Page 25 Euroemme EM52 extraction fan is developed and produced by Munters Italy S.p.A., Italy ® www.munters.com Australia Munters Pty Limited, Phone +61 2 8843 1594, Brazil Munters Brasil Industria e Comercio Ltda, Phone +55 41 3317 5050, Canada Munters Corporation Mason, Phone +1 517 676 7070, China Munters Air Treatment Equipment (Beijing) Co.
