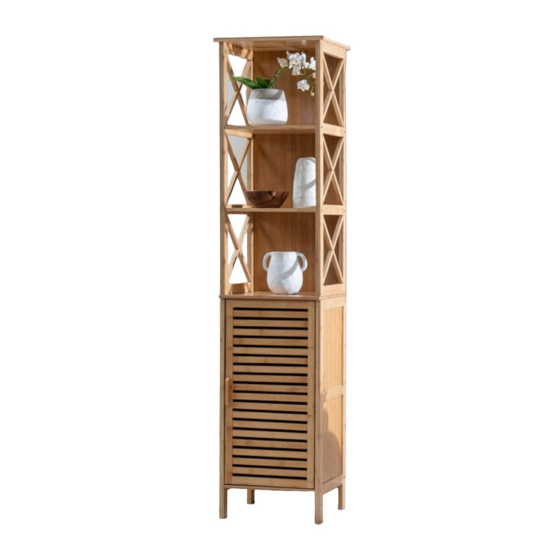

Kuranda Cabinet - Tall
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
long
magnetic
bolt
screw x16
x1
I
H
magnetic
Allen key
shelf plug
bar x1
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
C
locking
small
x8
nut x8
screw x3
K
J
L
door plug
wedge
x4
x2
x8

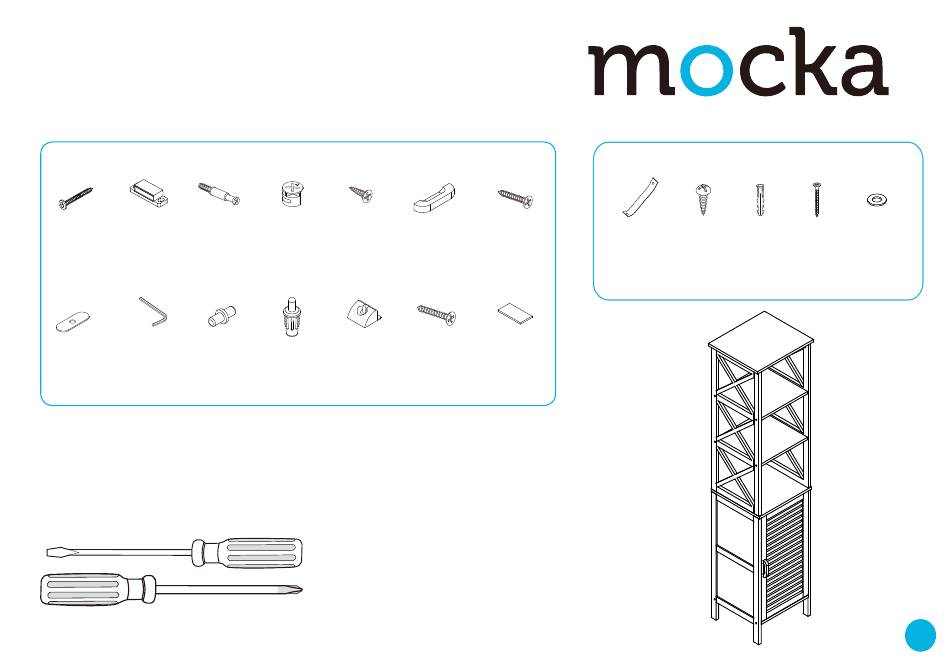

Hardware Supplied
Phillips & Flathead screwdrivers
required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
F
handle
handle
x1
screw x2
M
N
screw
felt
x8
pad x4
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kuranda and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Kuranda

  • Page 1 Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver. Attach 4x bolts (C) and 1x magnetic (B) to panel [2] with 2x small screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Slide panel [6] along the grooves between the panels [3] Attach panels [3] and [4] to panels [5], secure with and [4]. 8x long screws (A).Tighten with an allen key (I). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach panel [2] to panels [3] and [4], secure with 4x long screws (A). Attach panel [1] to panels [3] and [4], secure with 4x locking nut (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Attach panels [8] and [9] to panel [10], secure with 4x long screws (A). Slide panel [11] along the grooves between the panels [8] and [9]. Tighten with an allen key (I). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach 1x magnetic bar (H) to door [7], secure with 1x screw (E). Tighten with a screwdriver. Attach 4x felt pads (N) to panels [8] and [9]. Tighten with a screwdriver. Insert 2x door plugs (K) to door [7] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 Press door plugs (K) and attach door [7] to panels [2] and [10]. Attach 1x handle (F) to panel [7], secure with 2x handle screws (G) and tighten with a screwdriver. Make sure the door open and close easily. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 8x screws (M). Tighten with a screwdriver. Attach 1x safety strap (V), and stable. 1x washer (Z) to the top of the back side of the unit as shown using 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 (V). Fasten to wall using 1x wall anchor (X) and 1x wall screw (Y), 1x washer (Z). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
