Mocka Kuranda Mirror - Large Assembly Instructions

Kuranda Mirror - Large / Small

Thank you for your purchase.

Please follow the instructions below for correct assembly.

dowel

bracket

hanging

bracket x2

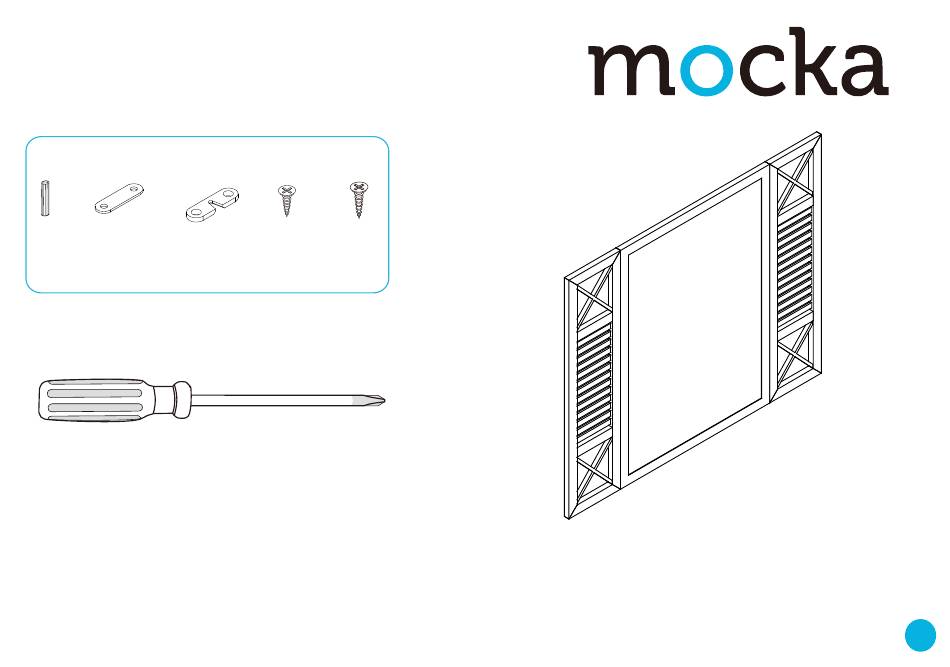

Hardware Supplied

Phillips screwdriver

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

Remark: Wall installation screws included with this product are suitable

for concrete wall only. To install product on other types of wall, please

puchase suitable screws separately.

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

screw

x12

Mirror weight : Small 4 kgs (±5%)

Mirror weight : Large 8 kgs (±5%)

(recommend professional Installation)

Table of Contents

Do you have a question about the Kuranda Mirror - Large and is the answer not in the manual?

Page 1 Remark: Wall installation screws included with this product are suitable for concrete wall only. To install product on other types of wall, please (recommend professional Installation) puchase suitable screws separately. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 2 Attach 6x bracket (B) to panels [1] and [2] with 12x screws (D). Attach 2x Attach panels [2] to panel [1] with 6x dowels (A) as shown. bracket (C) to panel [1] with 4x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 3 Fix the wall anchor and wall screw to the wall according to length of L . Measure the distance between the two hanging bracket (C). Note：Leave the screw outside the wall for 5mm, do not lock into the wall completely mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 4 Kuranda Mirror - Large / Small Assembly Instructions wall screw You’re done, enjoy! Fix the mirror to the wall. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...

Kuranda mirror - small
