Mocka Kids House Bookcase Assembly Instructions Manual

Kids House Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

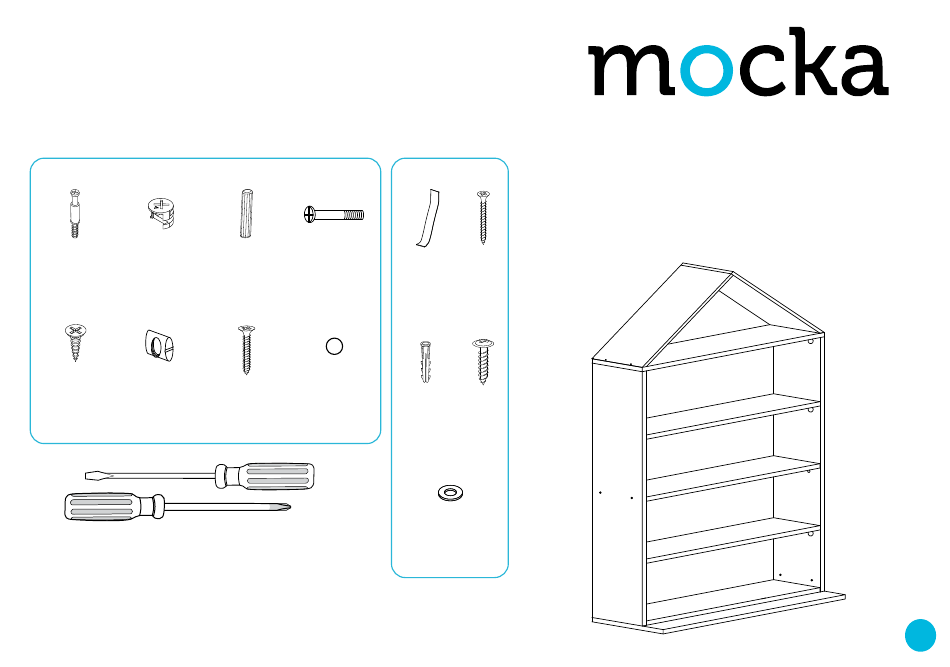

A B
bolt locking
x16 nut x16
E F
small
nut
screw x6
x10
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C D
dowel
long bolt
x26
x4
H I
medium cover
screw x45 x20
WARNING:
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety long
strap screw
x3 x3
X Y
wall screw
anchor x3
x3
Z
washer
x3
Any furniture that is not anchored to a wall has the potential to tip
1
