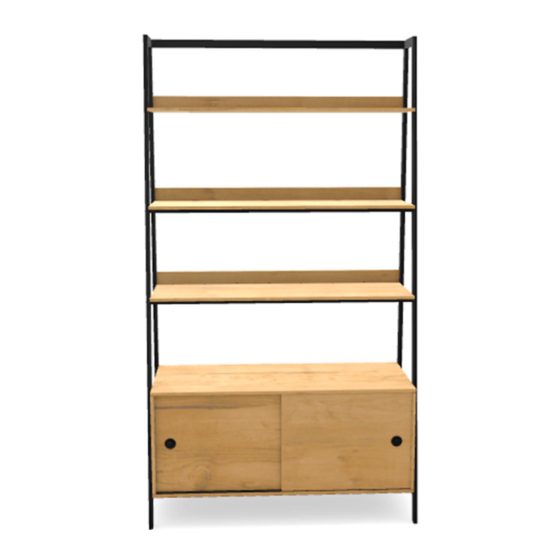

Kirra Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
x18
x15
x6
H
I
J
wedge
screw
wheel
x8
x8
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
locking
screw
long bolt
nut x6
x32
x24
K
L
wheel
allen key
shelf plug
x4
x1
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
nut
x14
M
N
small
x8
bolt
x12
V
W
X
wall
wall
washer
x2
anchor
screw
x2
x2
Wall Strap
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Kirra Bookcase
Summary of Contents for Mocka Kirra Bookcase
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. Attach panel [7] to panel [8] with 2x dowels (A) and secure with 3x screws (B) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [10] to panels [9] and [16], secure with 6x small bolts (N). Attach panels [9], [16] to panels [8] with 4x dowels (A) and secure Tighten with an allen key (L). with 6x screws (B) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panels [3], [4], [5] to panel [1] with 6x dowels (A) and secure Slide panels [6] down along the grooves between the panels [3], [4] and [5]. with 6x locking nut (D) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [2] to panels [3], [4] and [5] with 6x dowels (A) and secure Attach panels [10] to panel [2], secure with 6x small bolts (N). Tighten with an allen key (L). with 6x screws (B) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [13] to panels [2], [7], [9], [11] and [16] with 9x long bolts (F) and secure with 4x nuts (G) as shown. Tighten with an allen key (L). and secure with 4x nuts (G) as shown. Tighten with an allen key (L). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 [17] onto them. Ensure the shelves are balanced Attach 8x wedges (H) to the back of the unit as shown, and secure and stable. with 8x screws (I). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 [14] first and then the front door [15]. Press the clip down on the back of the door to assemble the door. Push the clip back up to lock into place. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Once assembled lift furniture into place, do not drag. Fasten to the You’re done, enjoy! wall using 2x washers (x), 2x wall anchors (v) and 2x wall screws (w). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
