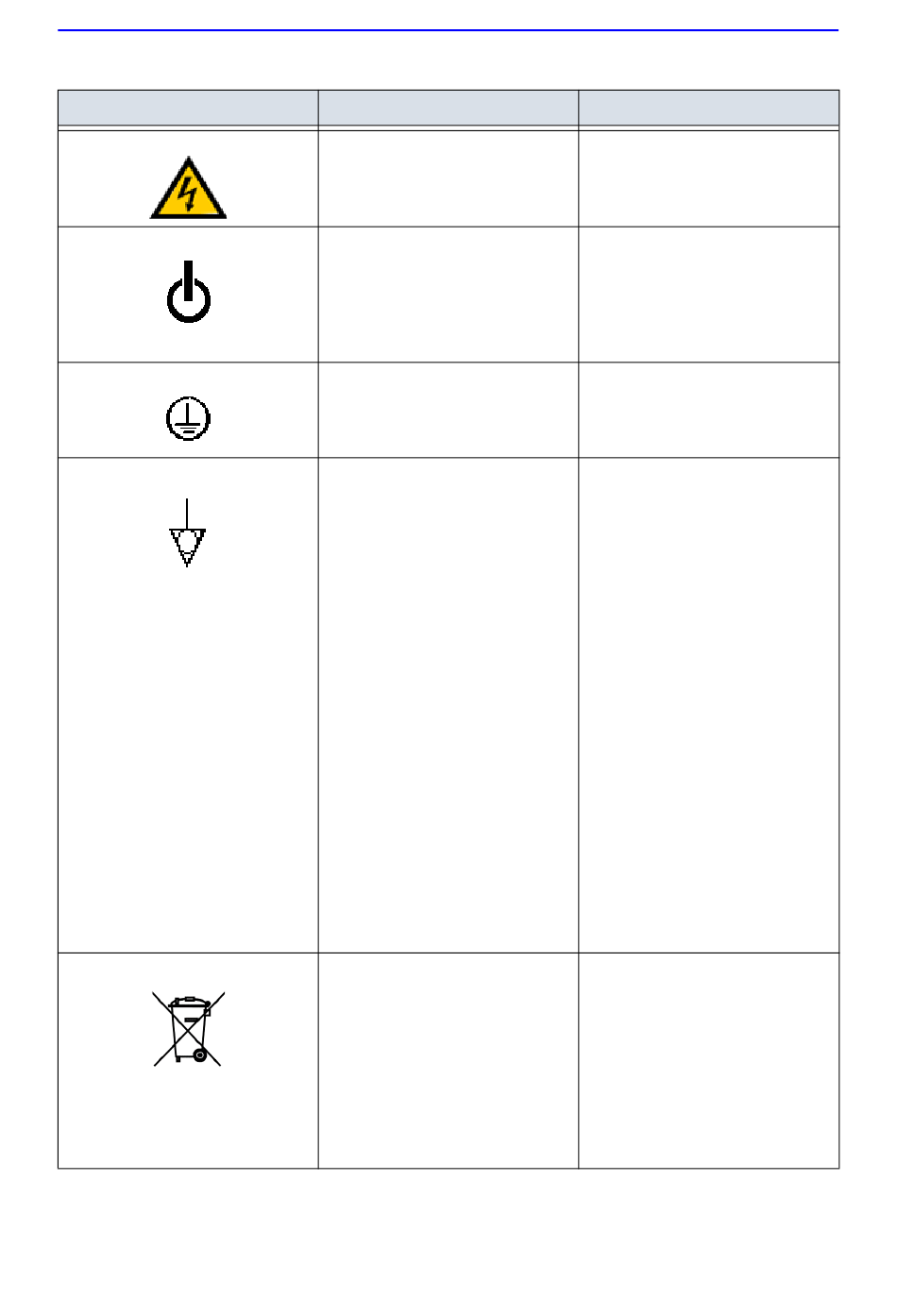

Table 4-6: Label Icons (continued)
Purpose/Meaning
"CAUTION" - Dangerous voltage"
(the lightning flash with
arrowhead) is used to indicate
electric shock hazards.
Indicates the power on and
power off position of the power
switch.
CAUTION: This Power Switch
DOES NOT ISOLATE Mains
Supply.
"Protective Earth" indicates the
protective earth (grounding)
terminal.
"Equipotentiality" indicates the
terminal to be used for
connecting equipotential
conductors when interconnecting
(grounding) with other
equipment.
Connection of additional
protective earth conductors or
potential equalization conductors
is not necessary in most cases
and is only recommended for
situations involving multiple
equipment in a high-risk patient
environment to provide
assurance that all equipment is at
the same potential and operates
within acceptable leakage current
limits. An example of a high-risk
patient would be a special
procedure where the patient has
an accessible conductive path to
the heart such as exposed
cardiac pacing leads.
IEC60417-5021.
This symbol indicates that waste
electrical and electronic
equipment must not be disposed
of as unsorted municipal waste
and must be collected separately.
Please contact an authorized
representative of the
manufacturer for information
concerning the decommissioning
of your equipment.
