Middle Atlantic Products MMB-1X1-12C Instruction Sheet

MOUNTING BASE
REFER TO PARTS LIST ON PAGE 3
Clamp Mounting (FIGURE A)
1) Slide knob on to bolt (short bolt), ensuring the bolt
head is securely engaged into the knob.
2) Screw bolt in to the lower clamp bracket and press clamp
pad on to the threaded end of the bolt.
3) Hook lower clamp bracket into one of the top 2 (of the 3)
positions provided.
4) Position clamp bracket and pole assembly onto work
surface in desired location.
NOTE: Upper clamp bracket must contact edge
of work surface.
5) Using knob tighten pole base assembly securely
to work surface.
Long Hex Bolt
Knob
FIGURE B
Instruction Sheet

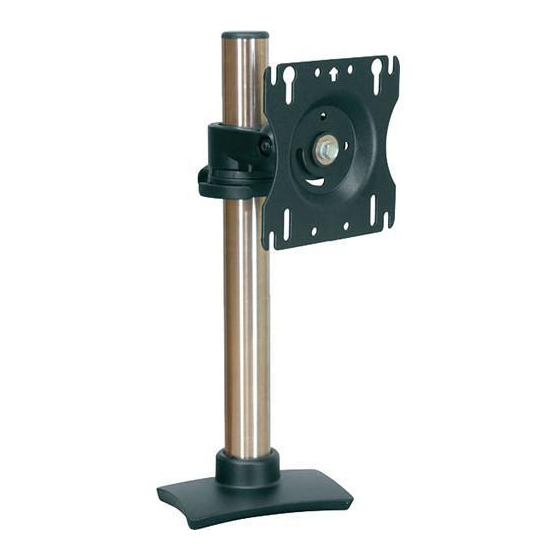

MMB-1X1-12C Monitor Mount
Pole Base Assembly
(2) Phillips Flat Head Screws
Upper Clamp Bracket
Lower Clamp Bracket
Pole Base Assembly
Clamp Pad
Lower Clamp
Bracket
Knob
Short Hex Bolt
Grommet Mounting (FIGURE B)
1) Use Phillips screwdriver to remove two (2) screws which
attach the upper clamp bracket to pole base.
2) Assemble lower clamp bracket to furthest slots on
upper clamp bracket to align clearance holes.
3) Slide knob onto bolt (long bolt).
4) Lay monitor cables through grommet holes in the work
surface.
5) Align pole on work surface.
6) Install bolt through the clearance holes on clamp
bracket. Insert the threaded end through the grommet
and screw into the pole base, using knob to tighten
pole base assembly securely to work surface.
Upper Clamp Bracket
FIGURE A
I-00693 Rev A
