MBRK/OBRK SERIES
THANK YOU

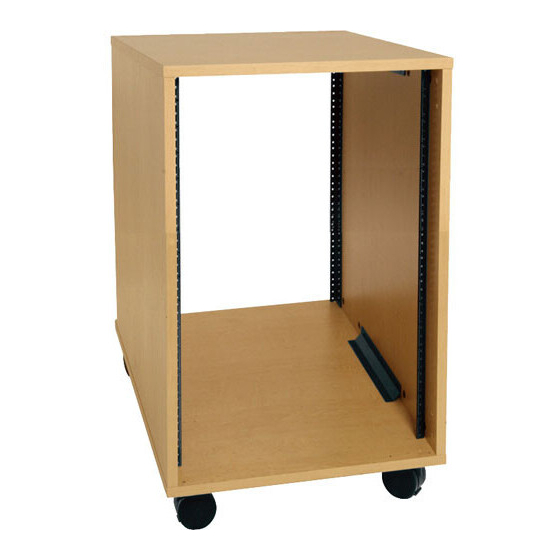

Thank you for purchasing the MBRK/OBRK Series 18" Deep Laminate Rack. Please
read these instructions thoroughly before assembling this product.
PRODUCT FEATURES
- Sturdy design
- Easy to assemble
- Multiple options are available for different configurations
Instruction Sheet
18" Deep Laminate Rack
I-1103
Rev K
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Middle Atlantic Products OBRK Series
Summary of Contents for Middle Atlantic Products OBRK Series
- Page 1 Instruction Sheet MBRK/OBRK SERIES 18" Deep Laminate Rack THANK YOU Thank you for purchasing the MBRK/OBRK Series 18" Deep Laminate Rack. Please read these instructions thoroughly before assembling this product. PRODUCT FEATURES - Sturdy design - Easy to assemble - Multiple options are available for different configurations...
-
Page 2: Tools Required
TOOLS REQUIRED #2 Phillips Driver PARTS TOP/BOTTOM (INTERCHANGEABLE) SIDES (INTERCHANGEABLE) Stick on Bolt 1/2 turn fastener (12) bumper (12) (5 - one extra) Page 2... - Page 3 ASSEMBLY NOTE: It is recommended that any reconfiguring BOLT or addition of rackrail be done after the rack is assembled. 1) Using a screwdriver, install bolts to top/bottom panels as shown. (See FIGURE A) CAUTION: Do Not Over Tighten. FIGURE A TOP/BOTTOM PANEL 2) Install 1/2 turn fasteners into sides as...
- Page 4 ASSEMBLY (Continued) 3) For ease of assembly, install one side panel and one top/bottom panel as shown. (See FIGURE C) Turn 1/2 turn fasteners clockwise to tighten. NOTE: Do Not Over Tighten. FIGURE C RIGHT SIDE 4) Assemble rest of rack as shown (See FIGURE D). Turn 1/2 turn fasteners clockwise to tighten.
- Page 5 ASSEMBLY (Continued) DETERMINE OPTIONS BEFORE CONTINUING Casters, Part # - RKW Quick-Position™ Shelf , Part # - SH-BRK (Cannot be installed with front or rear rackrail in the 3rd setback location - see below) Power Strip, refer to our catalog or middleatlantic.com for a complete listing Rear rackrail, Part # - RK-RRxx Smoked, tempered glass door, Part # - RK-GDxx Rear Access Panel, Part # - RK-RAPxx (Not available for 6 space racks)
-
Page 6: Locking Casters
OPTIONS Casters create a portable rack that locks in place, part # RKW. LOCK LOCKING CASTERS NON-LOCKING CASTERS Rear rackrail (RK-RRxx) for equipment support and cable management REAR RACKRAIL Smoked tempered glass door secures components and enhances appearance, part # RK-GDxx. SMOKED, TEMPERED GLASS DOOR, RK-GDxx Page 6... - Page 7 OPTIONS Quick-Position™ Shelf mounts without rack screws and accepts rear mounting of power strip, part # SH-BRK. NOTE: Shelves can be used with or without rackrail installed. NOTE: Rear Access Pan cannot be used if installing a power strip to the shelf. SH-BRK PD-815SC-NS POWER STRIP SHOWN (When mounting...
-
Page 8: Warranty
WARRANTY Middle Atlantic Products (the "Company") warrants the MBRK/OBRK Series to be free from defects in material or workmanship under normal use and conditions for a period of (7) years from date of shipment by the Company. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
