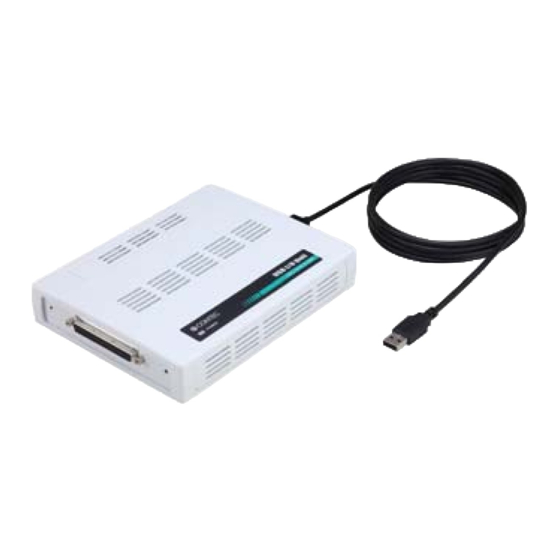

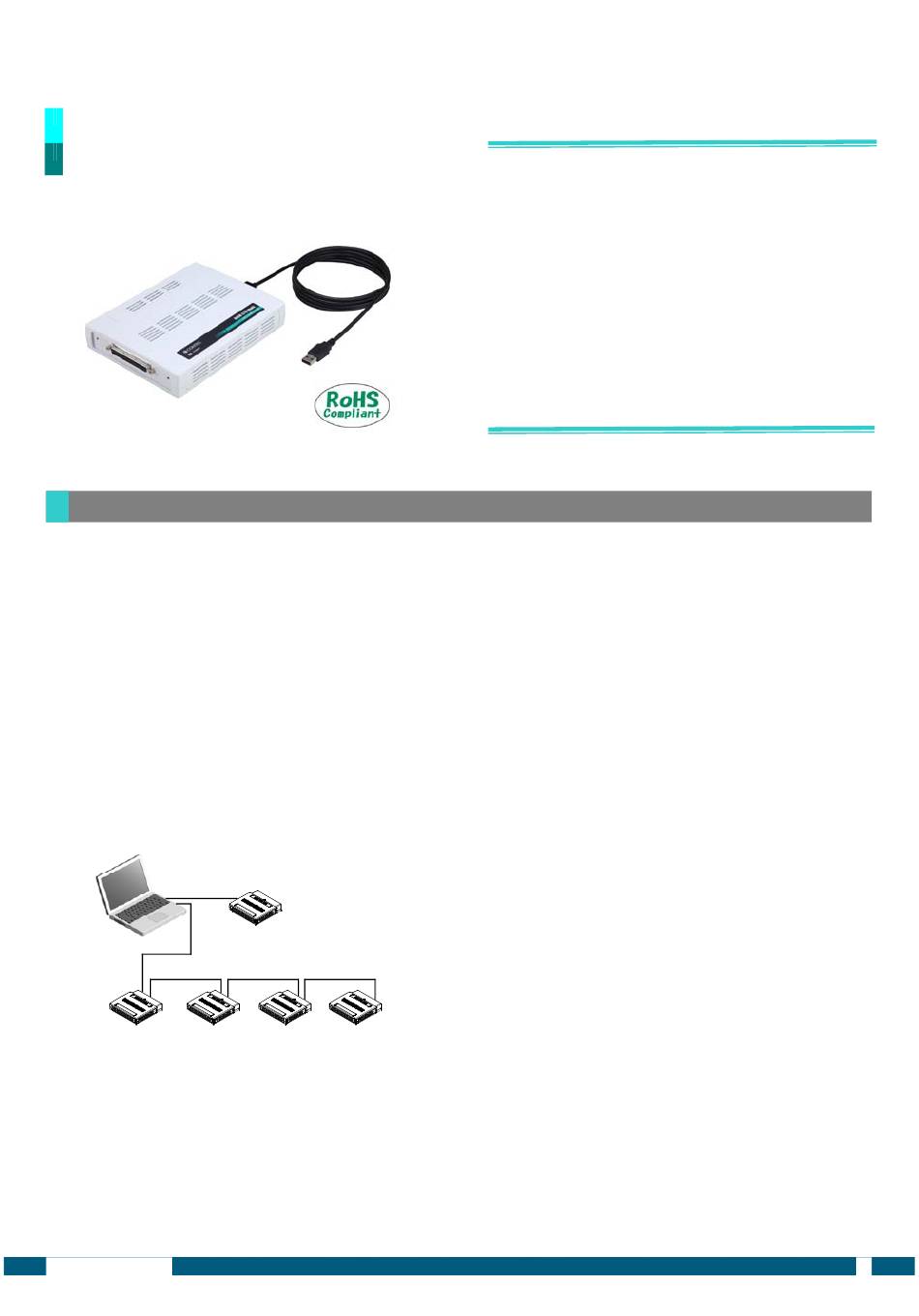

Contec RRY-16CX-USB Quick Start Manual

Digital Output Unit with Relay-Isolation
for USB
RRY-16CX-USB
* Specifications, color and design of the products are subject
to change without notice.
Features
16 independent common reed relay contact outputs (with
a single make contact)
This product has 16 reed relay outputs with a single make
contact. Independent common terminal provided per channel,
capable of supporting a different external power supply.
High-capacity output rating is designed to be a maximum of 2A
125V (AC), 2A 30V (DC) per channel.
Compatible to USB1.1/USB2.0
Compatible to USB1.1/USB2.0 and capable to achieve high
speed transfer at HighSpeed (480 Mbps).
USB HUB function
This product has the USB HUB function. Max. 4
RRY-16CX-USB can be used in 1 USB port of PC. *1
When you use 4 or more RRY-16CX-USB, you can do by
connecting RRY-16CX-USB to the another USB port of PC
side. Also, you can connect the CONTEC's USB device other
than RRY-16CX-USB to the USB port of RRY-16CX-USB.
*2*3
USB cable
USB cable
Connectors are compatible with PCI/PCI Express
bus-compatible board
As there is compatible with RRY-16C(PCI)H and RRY-16C-PE
in terms of connector shape and pin assignments, it is easy to
migrate from the existing system. If the system of this
product is created by the digital I/O driver API-DIO(98/PC), it is
required to replace it with API-DIO(WDM).
RRY-16CX-USB
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
USB cable USB cable
This product is an USB2.0-compliant digital output unit that
output signals to reed relay contacts.
This product provides up to 16 independent common reed
relay contact outputs. Independent common terminal
provided per channel, capable of supporting a different
external power supply. High-capacity output rating is
designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per
channel.
As there is compatible with PCI bus-compatible board
RRY-16C(PCI)H and PCI Express bus-compatible board
RRY-16C-PE in terms of connector shape and pin
assignments, it is easy to migrate from the existing system.
Windows driver is bundled with this product. Possible to be
used as a data recording device for LabVIEW, with dedicated
libraries.
Windows compatible driver libraries are attached.
Using the attached digital I/O driver API-DIO(WDM) makes it
possible to create applications of Windows. In addition, a
diagnostic program by which the operations of hardware can
be checked is provided.
LabVIEW is supported by a plug-in of dedicated library
VI-DAQ.
Using the dedicated library VI-DAQ makes it possible to make
a LabVIEW application.
*1 This product cannot be stacked up for installation.
*2 Do not connect the device other than that of CONTEC's USB to the USB port included
on the RRY-16CX-USB. Otherwise, this may cause a failure or malfunction.
*3 When connecting multiple units with USB HUB function and set up them, do one at a
time and complete setup for the previous unit before starting to do the next unit.
Ver.1.00
