EVM Graphical User Interface (GUI) Software Installation
NOTE: Manually disable any antivirus software running on the computer before downloading the
EVM GUI installer onto the local hard disk. Otherwise, depending on the antivirus settings,
an error message may appear or the installer.exe file may be deleted.
The following steps list the directions to install the software using the ADS8686S as an example.
Download and install the ADS8686SEVM software GUI from he ADS8686SEVM-PDK product folder.
Administrator privileges are required on the PC to install the EVM software.
Accept the license agreements and follow the on-screen instructions to complete the installation, as shown
in
Figure
5, after downloading and starting the GUI installer.
SBAU319 – November 2019
Submit Documentation Feedback
Table 5. Default Jumper Configuration (continued)
Default Position
Open when using the internal reference; closed connects the external onboard
Open
reference

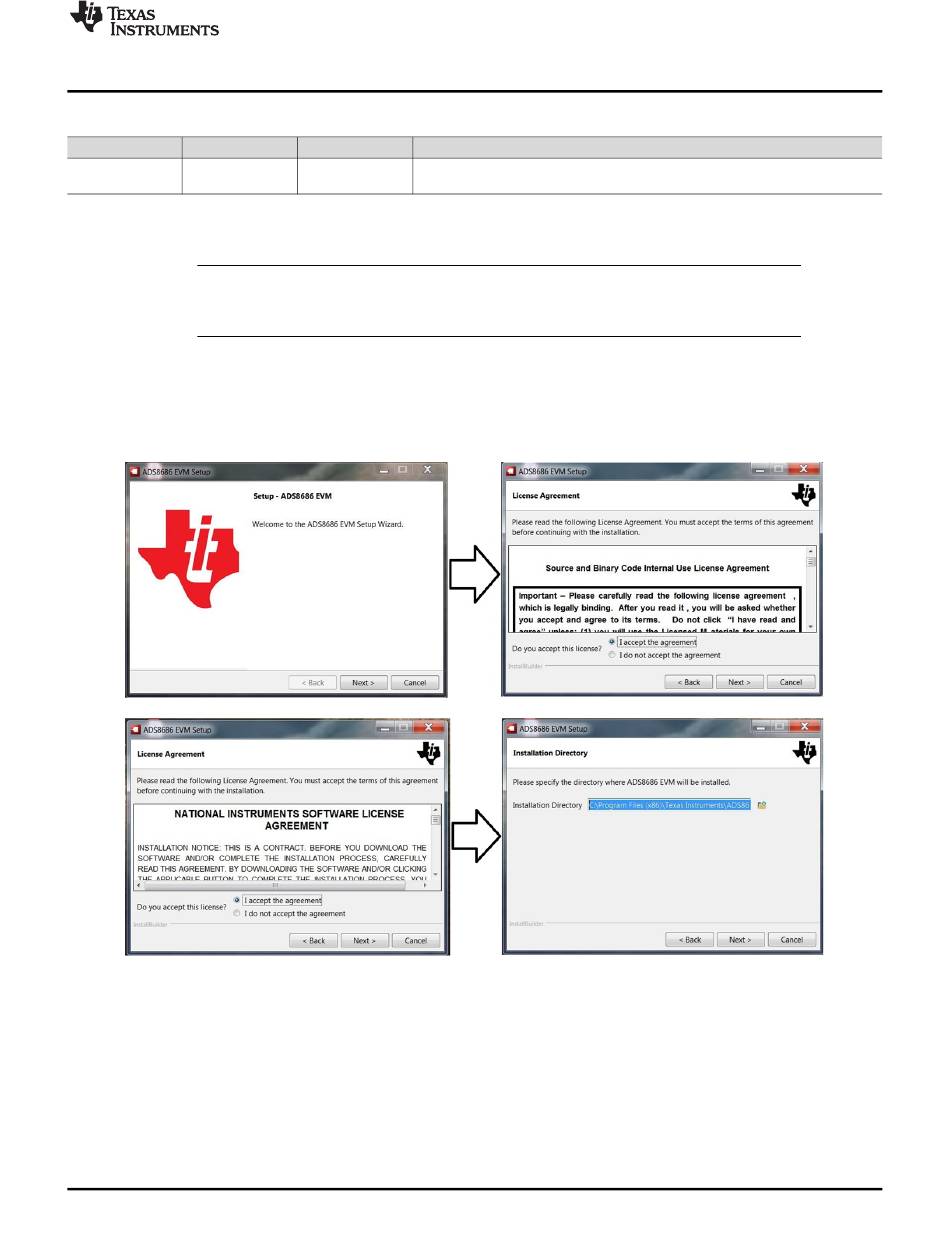

Figure 5. Software Installation Prompts
