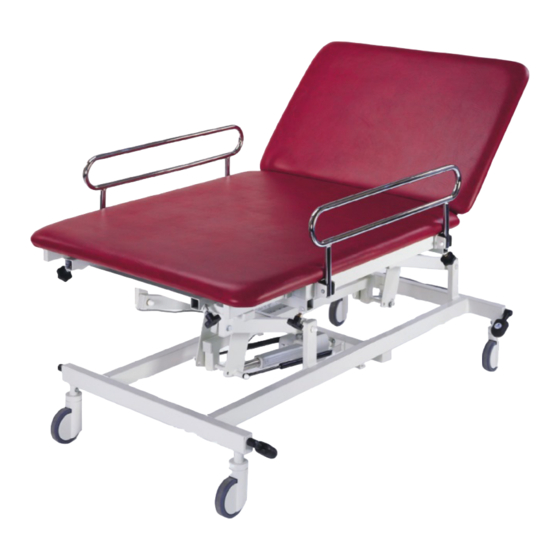

Akron BoBath 5
Instructions for Use
...with people in mind
792-462_03CN.REG • 03/2016

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArjoHuntleigh Akron BoBath 5 4632 and is the answer not in the manual?

Questions and answers

Summary of Contents for Getinge ArjoHuntleigh Akron BoBath 5 4632

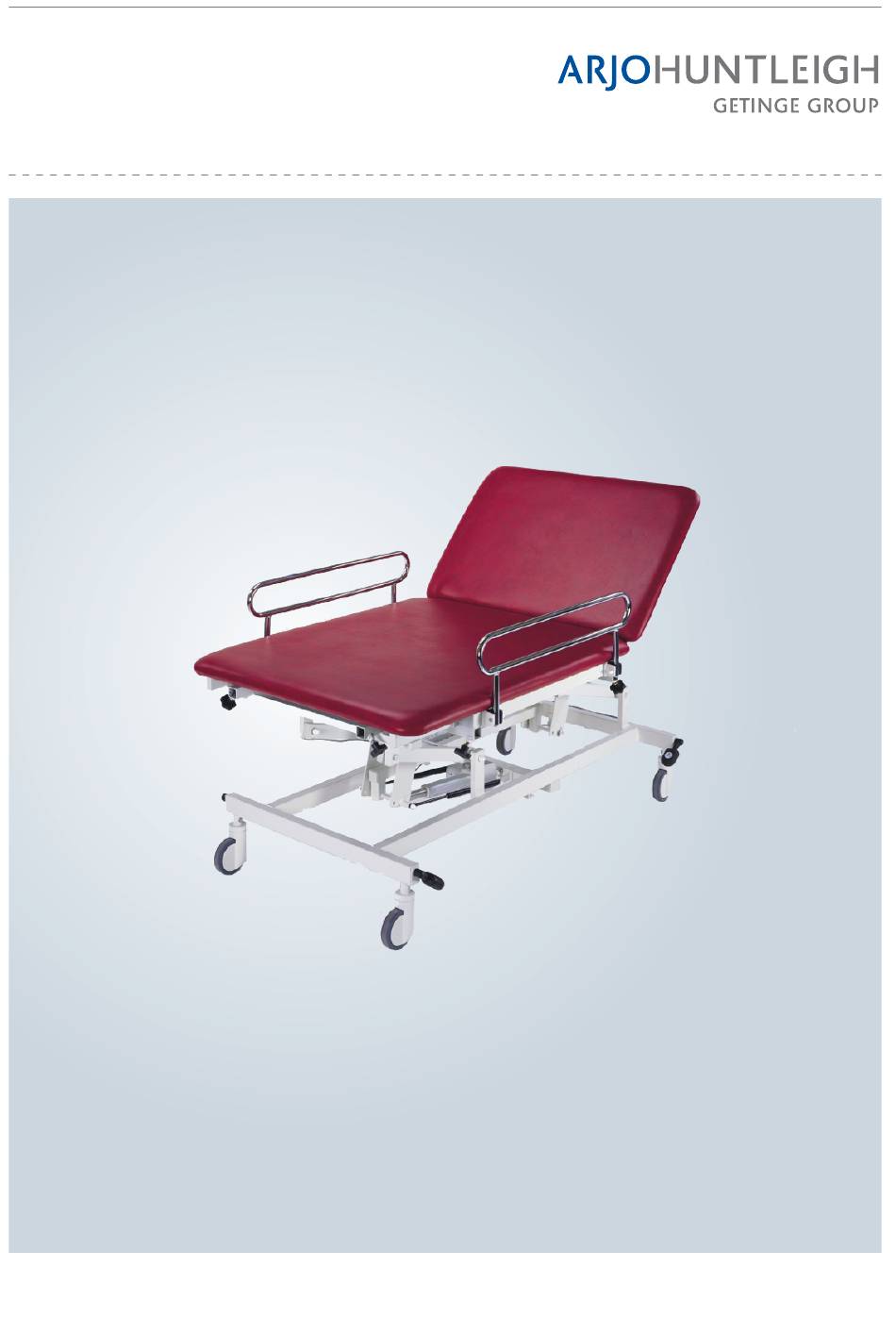

  • Page 1 Akron BoBath 5 Instructions for Use ...with people in mind 792-462_03CN.REG • 03/2016...
  • Page 2 Intentionally left blank...
  • Page 3 ® AKRON BOBATH 5 Model 4632 USER MANUAL UM ENGLISH 792-462-02...
  • Page 4: Table Of Contents

    AKRON 4632 Contents Introduction Warnings, Cautions General Warnings Installation Operation Optional Accessories Cleaning and Decontamination Troubleshooting Maintenance Warranty and Service Revision Status Technical Specification Transport and Storage Environmental Protection mark on this product demonstrates conformity with the EC Directive 93/42/EEC.
  • Page 5: Introduction

    AKRON 4632 1. Introduction Always keep this Operating Manual available for reference. Warnings & Cautions WARNINGS Warnings identify possible hazards in procedures or conditions which, if not correctly followed, could result in death, injury or other serious adverse reactions. CAUTIONS Cautions identify conditions or procedures which, if not correctly followed, could result in equipment failure or damage.
  • Page 6: Installation

    AKRON 4632 2. Installation WARNING Do not insert the 2-pin mains connector directly into a 3-pin 13A mains outlet. Always use the adapter provided. Plug acts as a disconnect device. Use adapter if 3 pin 13A plug is required. (Order reference 5S0409Z) Ensure mains supply cable is not stretched when connected.
  • Page 7: Operation

    AKRON 4632 3. Operation Elevation Controls WARNING Safely position patient before elevating table. Position all electrical cables away from the moving parts. Position Hand/Foot switch where accidental operation is not possible. Press up to raise table Press down to lower table Press up to raise backrest Press down to lower backrest Handswitch...
  • Page 8: Optional Accessories

    AKRON 4632 4. Optional Accessories - Operating Instructions The accessories specifically designed for use with this product can be viewed on the Bobath 5 video which can be found on the 2005 Catalogue CD Rom. The video covers a range of clinical procedures that utilise these accessories and gives further details on fitting these items ready for use.
  • Page 9 AKRON 4632 4. Optional Accessories - Operating Instructions Patient Support Loops - Model 4603 These can be fitted to either side or at the foot of the couch. They can be used for a wide range of sitting or standing exercises, balance training and wheelchair transfers. When locating them into the fixing brackets, make sure that the ‘spring pins’...
  • Page 10 AKRON 4632 4. Optional Accessories - Operating Instructions Arm/Leg Support - Model 4607 This accessory can be fitted to either side or at the foot end of the couch. The padded support surface can be adjusted and set at 3 different angles by releasing the red knobs at each side of the attachment and relocating the integral pins into different holes.
  • Page 11 AKRON 4632 4. Optional Accessories - Operating Instructions Knee Block & Low Level Seat - Model 4608 The knee block is located and positioned into brackets on the base frame at the foot end of the couch via chrome plated right angled brackets that are inserted and then secured on each side by locking knobs. The knee block can be adjusted for height and is easily removable when not in use.
  • Page 12: Cleaning And Decontamination

    AKRON 4632 5. Cleaning and Decontamination WARNING Do not use Alkalis or other organic solvents for routine cleaning. Replace torn or damaged vinyl immediately. Always cover vinyl with fresh paper or sheet between patients. If contamination is known or suspected always decontaminate table before use. Frequency of routine table cleaning will depend on exact application.
  • Page 13: Troubleshooting

    AKRON 4632 6. Troubleshooting – Electric Actuator Symptom Possible cause Action Actuator will not work Power disconnected Ensure mains supply is connected Fuse blown Replace fuse in socket Hand/footswitch disconnected Check that the hand/foot switch is Thermal protection fully inserted into the actuator Disconnect power cord from mains supply.
  • Page 14: Warranty And Service

    AKRON 4632 8. Warranty and Service (UK only) ArjoHuntleigh AB standard terms and conditions apply to this couch. A copy is available upon request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service or maintenance please contact: Service Department Huntleigh Healthcare...
  • Page 15: Revision Status

    AKRON 4632 8. Warranty and Service (Outside UK) ArjoHuntleigh AB standard terms and conditions apply to this couch. A copy is available upon request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this, or any other ArjoHuntleigh AB Product, please contact: ArjoHuntleigh AB...
  • Page 16: Technical Specification

    AKRON 4632 10. Technical Specification 4632 Head Length (cm) 71±1.5 Foot Length (cm) 124±1.5 Width (cm) 107±1.5 Overall Length (cm) 196±3 Height Range (cm) 50±1.5 97±1.5 Max. Load Weight 325 Kg Elevation Control Electric Electrical Data 230v Voltage 220-240v / 50Hz Current 0.8A Power...
  • Page 17: Transport And Storage

    AKRON 4632 11. Transportation and Storage Handle with care. Do not drop. Avoid shock or violent impact. The equipment should be stored in a clean, dry and well ventilated area. The following limits apply during transport and for a storage period of up to 15 weeks: Ambient temperature -25°C to +70°C Relative humidity...
  • Page 18 AKRON 4632 Intentionally left blank 792-462-03...
  • Page 19 AKRON 4632 AKRON ® BOBATH 5 电动床 型号 4632 使用说明书...
  • Page 20 AKRON 4632 目录 1. 简介 警告,注意事项 通用警告 2. 安装 3. 操作 4. 配件操作 5. 清洁与去污 6. 故障排除 7. 维护 8. 质量担保与售后服务 9.修订校正数据信息 10. 技术参数 11. 运输与储存 12. 环境保护 标志表示该产品符合 EC 条款 93/42/EEC 的要求 产品上的...
  • Page 21: 警告,注意事项

    AKRON 4632 1. 简介 请将此用户手册保存以备将来作为参考使用。 警告 & 注意事项 警告 对如果不遵循使用手册使用而造成的死亡,受伤或者其他严重的不良反应 的行为或条件进行明确警告。 注意事项 对如果不遵循使用手册使用而造成的设备运行失败或者受损 的行为或条件进行提醒注意。 通用警告 警告 只能使用专门为此设备设计或者经过认可的附件。 在有可燃性气体诸如麻醉剂的情况下请不要使用电动椅。 最大负载 325Kg (715 lbs) 且均匀分布。 请不要将重量只集中在设备的一边。 插头作为断开设备连接使用。 任何时候都不要让小孩在设备上玩耍。 在设备附近要对孩子进行看护监管。...
  • Page 22 AKRON 4632 2. 安装 警告 不要将 2 相的电源插头插入 3 相 13A 的电源插口中, 请使用设备提供的适配器。 如需要请使用 3 相 13A 插头 (参考编号 5S0409Z) 连接时请确保电源线未拉长连接。 在使用电动床时,确保移动过程中没有障碍。 在移动电动床部件时,请确保手动开关或者导线不要绞入设备。 注意事项 设备不使用时,请关闭开关。拔掉插头断开与设备的连接。 备用电池 注意事项 备用电池用于在电源断电时或非正常情况时使用。 请在使用电动床时一直保持与电源连接 控制盒上的灯亮表示电源已打开。 当电源为开时,电池是涓流充电-以防电源故障 电池处于充电状态时,短暂的按住开关键可以激活控制元件。...
  • Page 23 AKRON 4632 3. 操作 升高控制 警告 在升高电动床之前请确保患者处于安全位置。 将所有活动电线远离活动部件。 将手控开关放置于不会发生事故的位置。 按下上升按钮升高电动床 按下下降按钮降低电动床 按下上升按钮升高靠背 按下下降按钮降低靠背 靠背角度 = +85 – 0 手动遥控开关 (正负 3°误差) 锁定滚轮 警告 在运送患者或者治疗之前请锁定电动床的滚轮/脚轮。 可伸缩的脚轮不适合用于运送患者。 在放置电动床之前请断开电源并将电线远离活动部件。 滚轮 锁定滚轮 定向锁定 释放滚轮 台面摆动量 电动床空载下,台面呈最高位置时,应保持水平并应符合下列要求: a) 纵向摆动量不大于 15mm; b) 横向摆动量不大于 10mm; c) 水平侧向摆动量不大于 18mm;...
  • Page 24: 配件操作

    AKRON 4632 4. 可选配件 – 操作指南 专门为 Bobath 5 设计的专用配件可以在 2005 年产品手册的光盘录像中看到。录像视频中包 括了使用这些配件的临床过程以及这些配件使用的进一步细节。 注意事项 使用前请确保配件是安全的。 可折叠安全护栏 – 型号 4604(铬) / 4605(尼龙) 可折叠安全护栏的电动床为患者提供了额外的安全保证。 A) 当侧边处于下方而将其升高时,可朝您的方向抬高并旋转 180 度。一旦到达直立位置,向下推动侧栏插入模块中直到 完全锁定。 B) 要从直立位置降低安全护栏,从模块中拉出护栏并向下旋转 180 度即可。 患者支撑手柄 – 型号 4602 这些手柄可以帮助患者站立。其专门为体型较大和较小的患者进行了设计。 A) 插入支撑手柄,将锁销插入插孔中。 B) 确保手柄完全锁定。 C) 要拆下支撑手柄,可以松开锁定按钮并从插孔中拔出支撑手...
  • Page 25 AKRON 4632 4. 可选配件 – 操作指南 患者支撑手环 – 型号 4603 手环可以放置在两边或者放在脚部的位置。他们可以有助于患者进行站立或者坐立的练习, 锻炼平衡性以及轮椅运送患者时使用。在固定手环时,使用之前请确保“弹簧锁销”在插孔 位置中并且锁定按钮已经锁定。 A) 插入支撑手环,将锁销插入插孔中。 B) 确保手环完全锁定。 C) 要拆下支撑手环,可以松开锁定按钮并从插孔中拔出支撑手 环即可。...
  • Page 26 AKRON 4632 4. 可选配件 – 操作指南 手臂/腿部支撑 – 型号 4607 这些配件可以放置在两边或者放在脚部的位置。 支撑面可以调节并且通过释放两边的红色按 钮或者重新放置锁销至新的插口中来设置 3 中不同的方向。 这个附件可以广泛的练习上下肢 及活动能力。也可以利用额外的膝盖挡板练习俯卧站立。患者的安全带(型号 TT1 – 与膝盖 挡板配套提供)有助于增强安全性并且通过手臂/腿部框架加以固定保证安全。 调整手臂支撑台: A) 将手臂支撑台放在支架上。 B) 确保支撑台完全锁定。 C) 调整手臂支撑台角度,松开台面下方的扳手,调整到 需要的位置并拧紧扳手。...
  • Page 27 AKRON 4632 4. 可选配件 – 操作指南 膝盖挡板 & 低位座椅 – 型号 4608 膝盖挡板位于电动床脚部位置底座的支架上, 通过镀铬的直角支架插入并利用锁定按钮固定 在两边。 可以调整膝盖挡板的高度并且不使用时很简单的就可以拆下。 这一附件为患者在站 立过程中提供了额外的稳定性并且可以与手臂/腿部支撑一同使用。 通常是手臂/腿部支撑与 支撑手环与这个附件组合使用。 膝盖挡板 低位座椅 也可以将膝盖挡板平放作为低位座椅使用。 这就需要重新安装电动床腿部下方的座椅框架并 将其两边的锁定按钮锁住。 拆除座椅框架: A) 松开下方的锁定按钮。 B) 从电动床中水平滑出座椅框架。 重新安装座椅框架: A) 将座椅框架插入套管中。 B) 顺时针扭动锁定按钮来拧紧框架。 呼吸孔与插口 患者处于俯卧位置时取掉呼吸孔塞子。 向下方推出塞子即可。...
  • Page 28: 清洁与去污

    AKRON 4632 5. 清洁与去污 警告 日常清洁时请勿使用碱性物质或者其他有机溶剂。 立即更换破损的乙烯瓶。 使用保鲜纸或者纸板将患者与乙烯隔开。 如果已知存在污染或者怀疑受到污染,在使用前请清洗设备。 清洗设备的频率取决于设备的正确使用程度。 清洁与去污 1. 穿好防护服:一次性塑料围裙和手套。 2. 断开所有电源连接并锁定座椅滚轮。 3. 可以使用 70%的酒精擦拭遥控器。 4. 准备温水与中性清洁溶剂。 5. 从电动床的顶部向下进行清洁。 6. 从头部向中间躯干部分进行擦拭。 7. 擦拭剩余的患者平躺表面部分,并朝脚部方向进行擦拭。 8. 擦拭床体下表面部分。 9. 擦拭床体表面下方所有垂直部件。 10. 擦拭遮蔽罩 (如果已经安装)。 11. 擦拭滚轮部分。 12. 在再次使用之前保证床的所有部件干燥。 13. 安全丢弃使用的清洁材料。 14. 仔细洗手。 去污时请重复步骤...
  • Page 29: 故障排除

    AKRON 4632 6. 故障排除 – 电子螺线管 症状 可能的原因 解决办法 电子传动装置不工作 未连接电源 确保电源已连接 保险丝熔断 更换保险丝 手控开关断开连接 检查手控开关是否完全插入 热保护 电子传动装置中 拔掉电源线。冷却元件 1 分 钟左右并再次连接电源。 如果问题仍然存在,请咨询当地的供应商。 7. 维护 使用前肉眼检查电动床。 每 6 个月执行一次例行维护或者频繁使用后进行维护。 必须由经过专业培训的人员进行维护修理。 警告 在进行任何的维护修理工作之前,请断开电动床的所有电源连接。 拔掉设备插头即可断开连接。 要检查电动床是否有损害的迹象。确保所有螺钉,扣带和其他紧固装置是否紧固。当然也不 要过紧,这样会造成捆绑束缚。 检查靠垫是否牢靠,如果需要可以进行更换。 检查铰链螺栓,确保没有针脚伸出。 检查气柱控制,检查全方位的移动锁定和辅助措施。 检查液压表是否平稳运行,是否存在泄露。 警告 所有电器方面的检查都应由具有专业资格的电工人员进行。...
  • Page 30: 质量担保与售后服务

    AKRON 4632 8. 质量担保与售后服务(仅限英国) ArjoHuntleigh AB 的标准条款与条件适用于本产品。根据需要可提供拷贝。这里面包含了具 体的质量担保的细节以及不限制消费者的法定权利。 需要售后服务或者维护请联系: Service Department Huntleigh Healthcare 310 – 312 Dallow Road Luton Beds LUI 1TD 电话: 01582 745700 传真: 01582 745869 需要产品信息,质量担保与零配件信息请联系 ArjoHuntleigh AB Verkstadsvagen 5 241 38 Eslov Sweden www.arjohuntleigh.com 如任何原因要求退货,在送回之前请联系 ArjoHuntleigh AB 并且: 1.
  • Page 31: 修订校正数据信息

    AKRON 4632 8. 质量担保与售后服务(英国以外地区) ArjoHuntleigh AB 的标准条款与条件适用于本产品。根据需要可提供拷贝。这里面包含了具 体的质量担保的细节以及不限制消费者的法定权利。 需要产品信息,质量担保与零配件信息请联系 ArjoHuntleigh AB Verkstadsvagen 5 241 38 Eslov Sweden www.arjohuntleigh.com 如任何原因要求退货,在送回之前请联系 ArjoHuntleigh AB 并且: 1. 清洁设备,参考设备清洗章节。 2. 将产品进行包装。 3. 请在包装外面贴上消毒证明(或者其他声明来证明产品已经清洗过)。 4. 在包装上标明“Service Department” 。 本产品由英国 ArjoHuntleigh AB 生产。作为可持续性发展计划的一部分,本公司保留对产品 进行修改以及不告知座椅材料的权利。 9. 修订校正数据信息 4632 页...
  • Page 32: 技术参数

    AKRON 4632 10. 技术参数 4632 头部长度 (cm) 71±1.5 腿部长度 (cm) 124±1.5 宽度 (cm) 107±1.5 整体长度 (cm) 193±3 50±1.5 高度范围 (cm) 97±1.5 325 Kg 最大负载重量 升降控制 电动 电气数据 230v 230v 50/ 60Hz 220 – 240v / 50Hz 电压 0.8A 电流 0.8A 24v / 6A 功率...
  • Page 33: 运输与储存

    AKRON 4632 11. 运输与储存 小心轻放。请勿掉落。避免震动或者撞击伤害。 设备应储存在干净,干燥和通风良好的环境中。请注意在运输期间以及最大储存 15 周期间 的限制: -25℃ 到 +70℃ 环境温度 10% 到 75% 相对湿度 50kPa 到 106 kPa 大气压 在操作过程中或者长期储存过程中应遵守下列限制: +10℃ 到 +40℃ 环境温度 30% 到 75% 相对湿度 70kPa 到 106 kPa 大气压 12. 环境保护 应按照当地地方法规对部件进行丢弃处理。...
  • Page 34 Intentionally left blank...
  • Page 35 Intentionally left blank...
  • Page 36 代理人住所: 上海市长宁区临虹路 128 弄 3 号 4 楼 代理人联系方式: 021 - 61973999 Getinge Group is a leading global provider of products and systems that contribute to quality enhancement and cost effi ciency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, Getinge and Maquet.
