Summary of Contents for Getinge 9900 Series

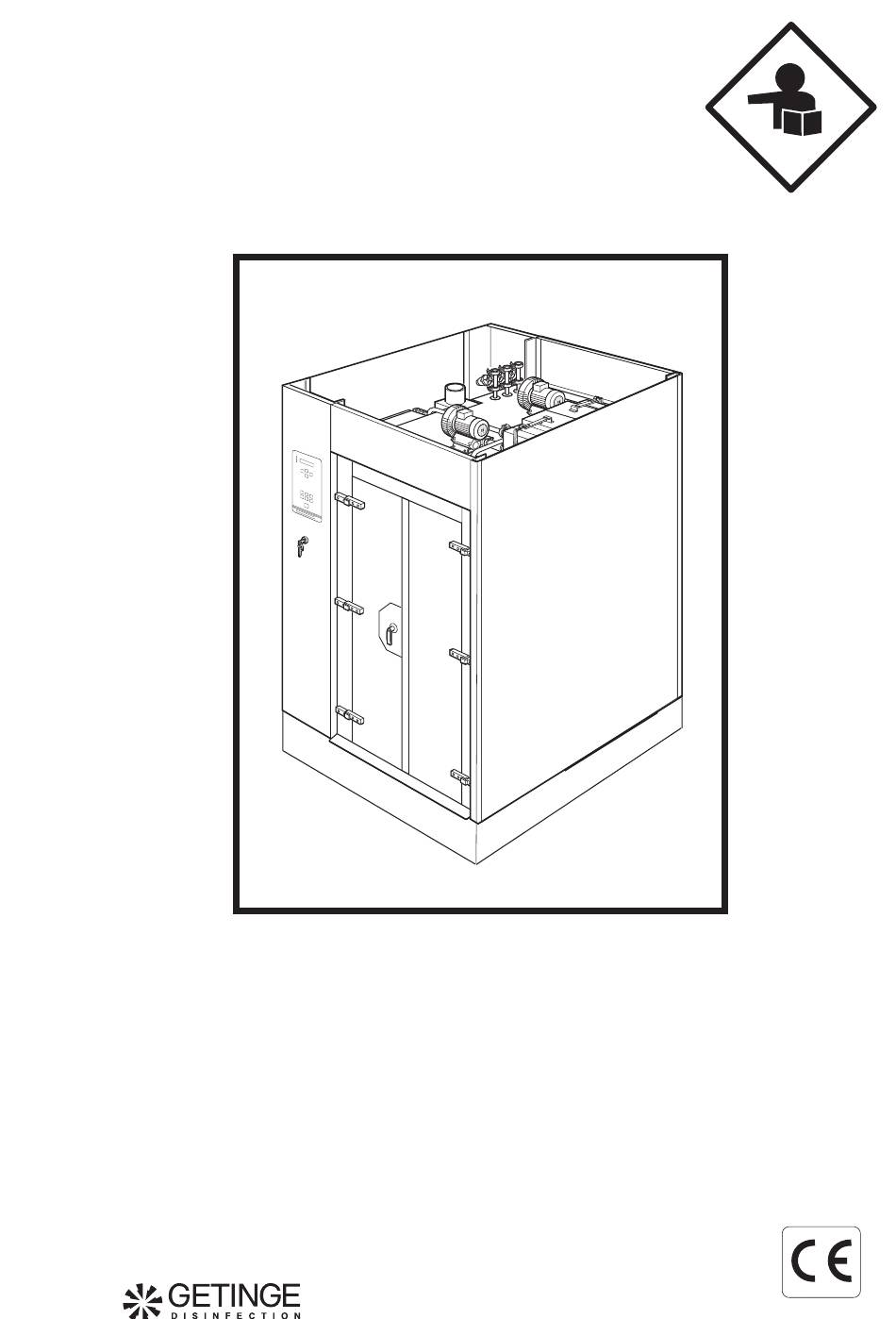

- Page 1 Operating instructions Getinge 9900-series OPERATING INSTRUCTIONS GETINGE 9900-serie Decomat Serial no. 23818- 5005847-00 0103...
-
Page 2: Table Of Contents
General safety rules _______________________________________ 3 Service in washing chamber ________________________________ 3 Power cut-off device ______________________________________ 3 Caution symbols _________________________________________ 3 Getinge 9900- series ________________________________________ 4 Programming device ______________________________________ 5 Door function ___________________________________________ 5 Dispenser system ________________________________________ 6 Operation _________________________________________________ 7... -
Page 3: Safety Rules
• Caution must be observed when using corrosive detergents. • Safety precautions must be observed when using hot water or steam. • Getinge 9900 may only be used for what it is designed and intended for , see operating instructions. -
Page 4: Getinge 9900- Series
Getinge 9900-series Operating instructions Getinge 9900- series The Getinge 9900-series is a fully automatic washer disinfector for the cleaning and disinfecting of contaminated dishware in hospitals, laboratories and the pharmaceutical industry. The machine is provided with four spray arms and can be equipped with a variety of accessories for different cleaning requirements. -
Page 5: Programming Device
Programming may only be carried out by authorized personnel. Door function Getinge 9900 is provided with either one or two doors. Doors are of the vertical sliding type. Two doors are used when you want to have an interlocking function between clean and soiled side of the machine. -
Page 6: Dispenser System
Getinge 9900-series Operating instructions Dispenser system In its standard version the machine has two different dispenser systems. One system for alkaline detergent and one system for rinse-aid or acidic detergent. The size of the dispenser dose can be individually set for each program and each separate part of the program. -
Page 7: Operation
Operating instructions Getinge 9900-series Operation Before starting: Selected program During process: Program phase (eg, ”Rinsing”) Program number Yellow: Process in progress Rinsing Remaining 047°C 00:30 program time Green: Process completed Red: Not disinfected Programming buttons (see ”Service instructions”) Actual temperature... -
Page 8: Error Indication
Getinge 9900-series Operating instructions Error indication Fill detergent 1 Red lamp: Not disinfected Error message or error code A B C D E F V337 Red lamp lights If the red lamp lights at K, this is an indication that disinfection is aborted because the temperature is too low. -
Page 9: Error Codes (F-Codes)
Operating instructions Getinge 9900-series Error codes (F-Codes) Error code: 05 The error codes indicate a serious malfunction in the washing sequence. Such errors must be attended to by authorized personnel. The following error codes can appear: Code Fault Comments Filling with water too slow Water level sensor not activated within 10 minutes from commencement of filling. -
Page 10: Maintenance
Getinge 9900-series Operating instructions Maintenance Marking for position of the washing cart Daily • Check that no object has fallen to the bottom of the washing chamber and is left lying there. • Ensure that the spray arms can rotate freely. Ensure that the holes in the spray arms are not clogged. -
Page 11: If Necessary
Operating instructions Getinge 9900-series If necessary The washing chamber The washing chamber should be kept free of limescale deposits. Remove remaining deposits by spraying on a normal acid-based detergent. Then run a program to cleanse the washing chamber (if the correct dosage of descaling compound is used, this should not normally be necessary). -
Page 12: Maintenance
Getinge 9900-series Operating instructions Maintenance How often maintenance will be required depends to a great extent on the quality of the water supply and how often the machine is used. The period between each maintenance should be determined in each particular case. We recommend, however, that the following maintenance measures should be performed once or twice every year. - Page 13 Operating instructions Getinge 9900-series 0103...
- Page 14 This product is manufactured by: GETINGE DISINFECTION AB, Ljungadalsgatan 11, Box 1505, 351 15 Växjö, Sweden...
