Maxi Air
Instructions for Use
...with people in mind
001-35001-EN Rev 6 • 12/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arjohuntleigh Maxi Air and is the answer not in the manual?

Questions and answers

Related Manuals for Getinge Arjohuntleigh Maxi Air

Summary of Contents for Getinge Arjohuntleigh Maxi Air

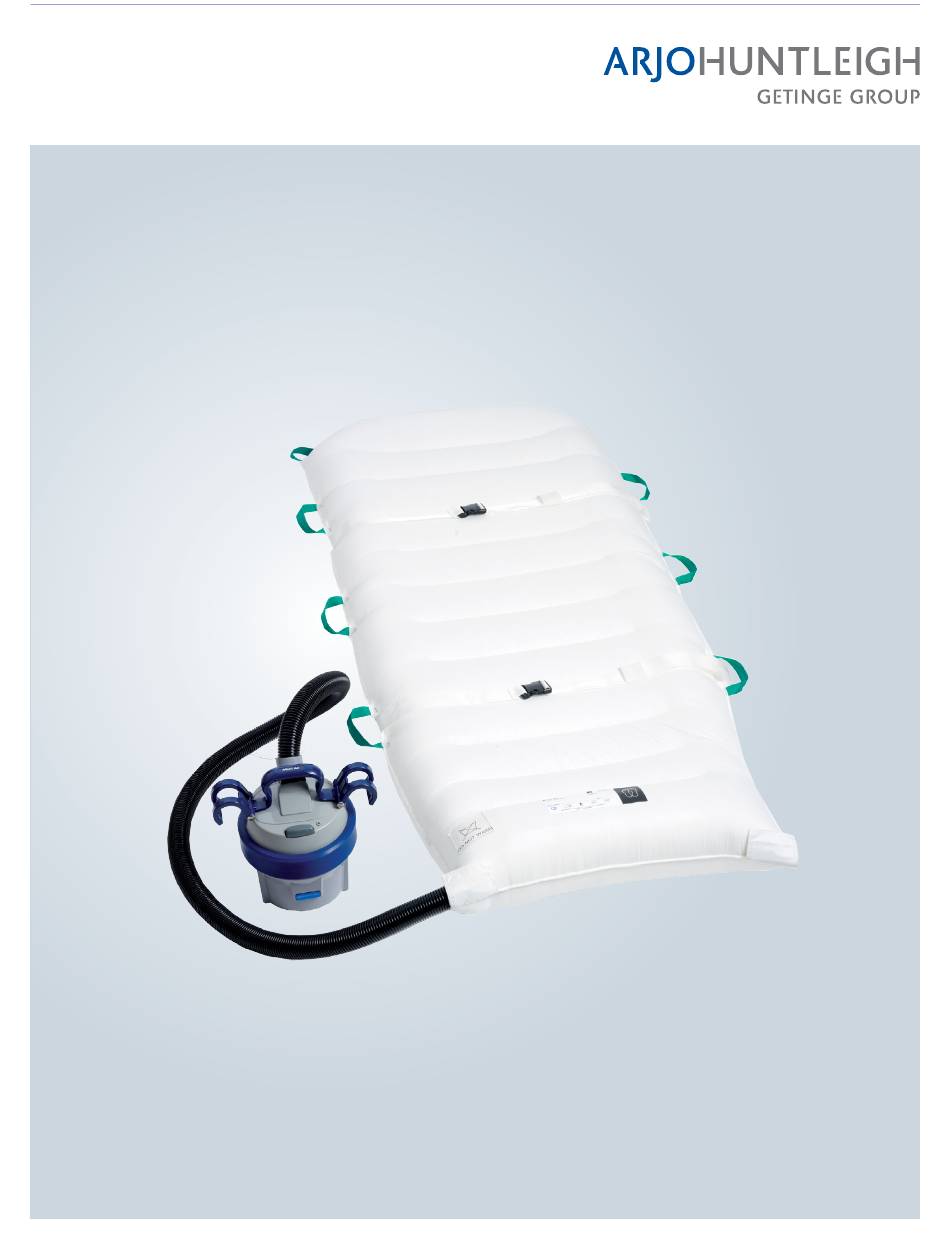

  • Page 1 Maxi Air Instructions for Use ...with people in mind 001-35001-EN Rev 6 • 12/2018...
  • Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanying documents before using the product. PRODUCT SERVICE PRODUCT SERVICE Production monitored Safety tested NRTL Made by Arjo Eslöv, Sweden It is mandatory to read the Instructions for Use. LATEX LATEX Design Policy and Copyright...

  • Page 3: Table Of Contents

    Table of Contents Foreword ..........................1 Intended Use ........................... 2 Safety Instructions ........................3 Preparations ..........................4 Product Specifications ......................5 Parts Designation ........................6 Product Description/Functions ..................... 7 Correct Placement of the Patient ..................8 Correct Placement of the Maxi Air air supply ..............9 Transfer ..........................
  • Page 4 Intentionally left blank...

  • Page 5: Foreword

    Foreword Thank you for purchasing Manufacturer Information ArjoHuntleigh equipment. This product was manufactured by: Your Maxi Air™ is a part of a series of quality ArjoHuntleigh AB products designed for patient transfers, Hans Michelsensgatan 10 especially for hospital and professional 211 20 Malmö...

  • Page 6: Intended Use

    Intended Use Contraindications This equipment should only be used for the purpose specified in this Instructions for This equipment can be unsuitable for patients Use (IFU). Any other use is prohibited. with thoracic, cervical or lumbar fractures. The equipment can be unsuitable for patients whose The Maxi Air is intended for lateral transfer or body shape is such that they do not comfortably repositioning of hospital and professional...

  • Page 7: Safety Instructions

    Safety Instructions WARNING Do NOT use the equipment for any type of lifting of patients. WARNING Do NOT use the equipment if the power cord is damaged. A damaged power cord may cause serious injury to the patient and the caregivers.

  • Page 8: Preparations

    Preparations Actions Before First Use Actions Before Every New Patient 1) Visually inspect the Maxi Air system for 1) Select a suitable Maxi Air mattress size damage. according to sections “Correct Placement of the Patient” and “Product Specifications”. 2) Check that all parts are supplied. Compare with section Parts Designation in this IFU.

  • Page 9: Product Specifications

    Product Specifications Maxi Air air supply Dimensions: 12,5 x 7 x 7”(317,5 x 178 x 178 mm) Weight: 11 lb (5 kg) Material: ABS Plastic Air Hose Lengths: 78” (1980 mm), 300” (7620 mm) Optional Power Cord Length: 180” (4570 mm) Maxi Air mattress Widths: L 34”...

  • Page 10: Parts Designation

    Parts Designation Maxi Air air supply Maxi Air mattress 1) Carrying handle 14) Connection points 2) Attachment hooks 15) Hook and loop strap 3) Socket inlet 16) Snap lock button 4) Push button (On/Off) 17) Safety belts 5) LED mains power indicator 18) Transfer handles 6) Rubber bumper 7) Cover...

  • Page 11: Product Description/Functions

    Product Description/Functions Maxi Air, connecting the air supply and mattress 1) Connect the air hose from the Maxi Air air supply to either the left or right foot end connection point of the Maxi Air mattress, see “Fig. 1”. 2) Attach the snap lock button on the Maxi Air mattress to the air hose snap lock button, see “Fig.

  • Page 12: Correct Placement Of The Patient

    Correct Placement of the Patient WARNING Always make sure the patient has the correct size of the Maxi Air mattress. If the Maxi Air mattress is too narrow, the Maxi Air mattress can tip over during transfer causing serious injuries to the patient and the caregivers WARNING To avoid bodily injuries, make sure the patient is correctly positioned on the Maxi Air mattress.

  • Page 13: Correct Placement Of The Maxi Air Air Supply

    Correct Placement of the Maxi Air air supply WARNING Before every transfer, always make sure the Maxi Air air supply is: • Secured from movement and from falling. • Not in the way of the electrical outlet in use. • Not placed on the floor. An incorrectly placed Maxi Air air supply can cause hazards (e.g.

  • Page 14: Transfer

    Transfer Transfer between surfaces Fig. 9 Sending surface/side = surface the patient lays on Receiving surface/side = surface the patient is transferred to 1) Apply the brakes on the sending surface. 2) Make sure the patient is in a horizontal position.
  • Page 15 7) Adjust the sending surface height slightly higher than the receiving surface, see “Fig. 12”. WARNING To avoid bodily injuries during the transfer, always make sure to: • Apply the brakes on both the sending and receiving surface. • Raise and lock the bed rail on the receiving surface.
  • Page 16 WARNING To avoid bodily injuries, make sure the Maxi Air mattress is completely inflated before starting the transfer. A partly inflated Maxi Air mattress can cause the patient to hit the underlying surface, causing bodily injuries. The pull force will increase with a partial inflated mattress and this can cause bodily injuries to the caregiver as well.
  • Page 17 13) Receiving side: meet up the Maxi Air mattress when it is halfway over the receiving surface, see “Fig. 16”. WARNING To avoid bodily injuries, make sure that the Maxi Air mattress is centred on the receiving surface, before the Maxi Air mattress is deflated.

  • Page 18: Disinfection Instructions

    Disinfection Instructions For the best results, only use LATEX WARNING ArjoHuntleigh branded disinfectant. Do NOT wash the Maxi Air mattress! The If you have any questions regarding disinfecting Maxi Air mattress is a patient specific product the equipment or wish to order disinfection fluid and is not intended for use between patients.
  • Page 19 5) If cleaning fluid cannot be removed in step 2.2 and step 2.4 spray water on the affected part and wipe off with disposable towels/ cloth. Repeat until all of the cleaning fluid has been removed. Step 3 - Disinfection 1) Spray cleaning fluid on the air supply.

  • Page 20: Care And Preventive Maintenance

    Care and Preventive Maintenance The Maxi Air system is subject to wear and tear, and the following actions must be performed to make sure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.
  • Page 21 WARNING To avoid injuries and/or unsafe product, maintenance activities must be carried out at the correct frequency by qualified personnel using correct tools, parts and knowledge of procedure. Qualified personnel must have documented training in maintenance of this device. QUALIFIED PERSONNEL Every Year Action/Check Change the air filter...
  • Page 22 4) Check the air filter (D) for dirt. 5) If the air filter is dirty, replace it. Do not use the Maxi Air air supply until the air filter has been changed. 6) Attach the cover (C) and the rubber ring (B).

  • Page 23: Troubleshooting

    Troubleshooting PROBLEM ACTION No air flow • Check power supply. • Check power cord connections on the Maxi Air air supply and the electrical outlet. Low pressure in the Maxi Air mattress. • Check air hose connections between the Maxi Air air supply and the Maxi Air mattress. •...

  • Page 24: Technical Specifications

    Technical Specifications Technical Data Maxi Air air supply Weight 11 lb (5 kg) Expected life 5 years Protection class Not protected against ingress of water Environment pollution 2 maximum degree for use Operating force: Push button 30.0 N Maximum duty cycle For continuous use Sound Level 74 dBA MRI classification MR unsafe 120 VAC, 60 Hz, 1100 W (North America)
  • Page 25 Allowed Combinations Mattress Before using allowed devices that were not manufactured by ArjoHuntleigh, please refer to the appropriate Instructions for Use for proper operation, care and maintenance. ArjoHuntleigh is not responsible for device malfunction for devices manufactured elsewhere and is not liable for any resulting damage and/or injury.
  • Page 26 Environmental Conditions Operating Temperature +10 °C to + 32 °C (+50 to +90 °F) Humidity 10-70% at +20 °C (+68 °F) Atmospheric pressure 700 hPa to 1060 hPa Transport and Storage - Maxi Air air supply Temperature -40 °C to +80 °C (-40 °F to +176 °F) Humidity 10-70% at +20 °C (+68 °F) Atmospheric pressure...

  • Page 27: Labels On Maxi Air Mattress

    PRODUCT SERVICE PRODUCT SERVICE Labels on Maxi Air mattress Production monitored Safety tested NRTL Made by Arjo Eslöv, Sweden PRODUCT SERVICE PRODUCT SERVICE Production monitored Safety tested NRTL Made by Arjo Eslöv, Sweden PRODUCT SERVICE PRODUCT SERVICE Production monitored Safety tested NRTL Made by Arjo Eslöv, Sweden Type B, Applied part: protection...

  • Page 28: Labels On Maxi Air Air Supply

    LATEX Production monitored LATEX Safety tested NRTL Made by Arjo Eslöv, Sweden Labels on Maxi Air air supply LATEX LATEX PRODUCT SERVICE PRODUCT SERVICE Production monitored Safety tested NRTL Made by Arjo Eslöv, Sweden PRODUCT SERVICE PRODUCT SERVICE Production monitored Safety tested NRTL Made by Arjo Eslöv, Sweden...

  • Page 29: Approvals And List Of Standards

    Identification Label The identification label states the product number, the serial number and the manufacturing date. The identification label is located under the top lid. Access the identification label, see “Fig. 22”. 1) Turn the screws (A) to an unlocked (A1) position.

  • Page 30: Electromagnetic Compatibility

    Electromagnetic Compatibility The Maxi Air has been tested for compliance with current regulatory standards regarding its capacity to block EMI (electromagnetic interference) from external sources. Nonetheless, some procedures can help reduce electromagnetic interferences: • Ensure that other devices in patient-monitoring and/or life-support areas comply to accepted emissions standards.
  • Page 31 Electromagnetic Emissions Guidance and Manufacturer’s Declaration - Electromagnetic Emissions - For all Equipment and Systems The Maxi Air is intended for use in the electromagnetic environment indicated below. The customer or the user of the Maxi Air should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance...
  • Page 32 Electromagnetic Immunity Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems The Maxi Air is intended for use in electromagnetic environment specified below. The customer or the user of the Maxi Air should assure that it is used in such an environment. IEC 60601 test Electromagnetic environment - Immunity test...
  • Page 33 (continued) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance 3 V outside ISM bands 3 V outside ISM bands between 0.15-80 MHz between 0.15-80 MHz Conducted RF 6 V inside ISM and 6 V inside ISM and...

  • Page 34: Parts And Accessories

    Parts and Accessories Power Cord Air Hose Extended Air Hose 6364343 - AUS Hospital Grade 8664411 8662971 6364344 - US Hospital Grade 6364346 - United Kingdom 6364347 - Europe 6364348 - South Africa 6364349 - India For disinfectant, contact your local representative.
  • Page 35 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Poznań) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13 Fax: +48 61 662 15 90...
  • Page 36 ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjohuntleigh.com ArjoHuntleigh is a world-leading provider of integrated products and solutions that improve the lives of patients and residents with reduced mobility. We help healthcare facilities deliver wellness and effective everyday care, early mobilisation, safe patient handling, venous thromboembolism prevention, pressure injury prevention, hygiene routines, bariatric care and diagnostics.
