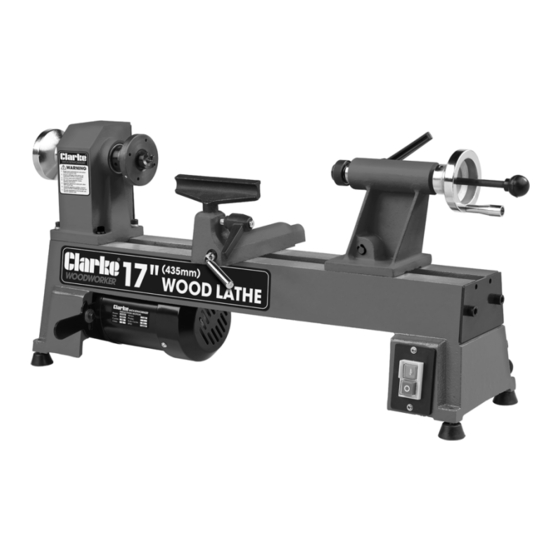

- Page 1 17” WOOD LATHE MODEL NO: CWL435 PART NO: 6500671 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL0621 Rev1...
-
Page 2: Specifications
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Warnings
SAFETY WARNINGS CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite accidents. 2. DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. -
Page 4: Personal Safety
9. Maintain your tools. Keep all handles and grips dry and clean. 10. If the machine requires repair, always contact your CLARKE dealer. Always insist on original spare parts. Repairs carried out by unauthorized persons may be dangerous and invalidate the guarantee. - Page 5 Check for alignment of moving parts, breakage of parts, mountings, and any other condition that may affect the machine’s operation. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your local CLARKE dealer. SERVICING 1.
-
Page 6: Safety Symbols
5. ALWAYS stop the lathe before removing workpieces, work supports or swarf from the table. 6. ALWAYS be sure that the workpiece is securely locked in position 7. ALWAYS keep hands and fingers away from the moving workpiece. SAFETY SYMBOLS The following safety symbols may be found on the machine. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 8 Ensure the wood lathe and its components suffered no damage during transit and that all components are present. Should any loss or damage be apparent, please contact your CLARKE dealer immediately. The following components are supplied with the lathe assembly.
- Page 9 ASSEMBLY 1. Fit the tailstock centre cup into the tail axis. NOTE: To detach the tailstock centre cup, place the drift rod into the adjusting wheel as far as it goes and give it a tap. 2. Fit the tool rest into the tool rest base.
-
Page 10: Operation
4. Install the headstock centre spur by sliding it into the headstock spindle as shown NOTE: To detach the headstock centre spur, place the drift rod into the hand wheel as far as it goes and give it a tap. OPERATION 1. - Page 11 ADJUSTING THE BELT POSITION The lathe is fitted with a 5 step pulley set-up, which allows for a range of speeds, as shown. Change the pulley range as follows. NOTE: Make sure that the lathe is unplugged from the power supply. 1.
-
Page 12: Maintenance
MAINTENANCE For maximum performance, it is essential that the machine is properly maintained. Always inspect before use. Any damage should be repaired and faults rectified. The machine requires very little maintenance other than the following guidelines. IMPORTANT: Disconnect from mains power before cleaning. 1. - Page 13 9. Tighten the pulley taper screw (69) and close the rear belt door (7) Please refer to TROUBLESHOOTING on page 14. If you are unable to rectify any faults, please contact your local dealer or CLARKE International Service Department on 0208 988 7400 for assistance.
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem Check Solution Motor stops and 1. Defective/broken switch. Send to your CLARKE dealer will not run. for repair. 2. Damaged power cable. Send to your CLARKE dealer for replacement. 3. Open circuit, loose Send to your CLARKE dealer connections or burned out for replacement. -
Page 15: Associated Products
ASSOCIATED PRODUCTS Wood Turning Chisel Set 4 Sided Diamond SAE30 Motor Oil - 1 litre - CHT874 Sharpener - CHT593 •8 piece wood turning •Multi-purpose •For lubricating chisel set sharpener with four tailstock & screw different grits threads •Part No. 1801874 •Part No. -
Page 16: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 17: Parts List
PARTS LIST PART DESCRIPTION PART DESCRIPTION Motor Hex Socket Screw M10 x 12 Lock Lever Retaining Plate Retaining Ring Quill Adjusting Wheel Tool Rest Tailstock Tool Rest Base Lock Lever Assembly Bolt Eccentric Axis Lock Plate Tail Axis Hex Nut Taper Rod Lock Handle for Tool Rest Ball Bearing 80102... -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 19 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
