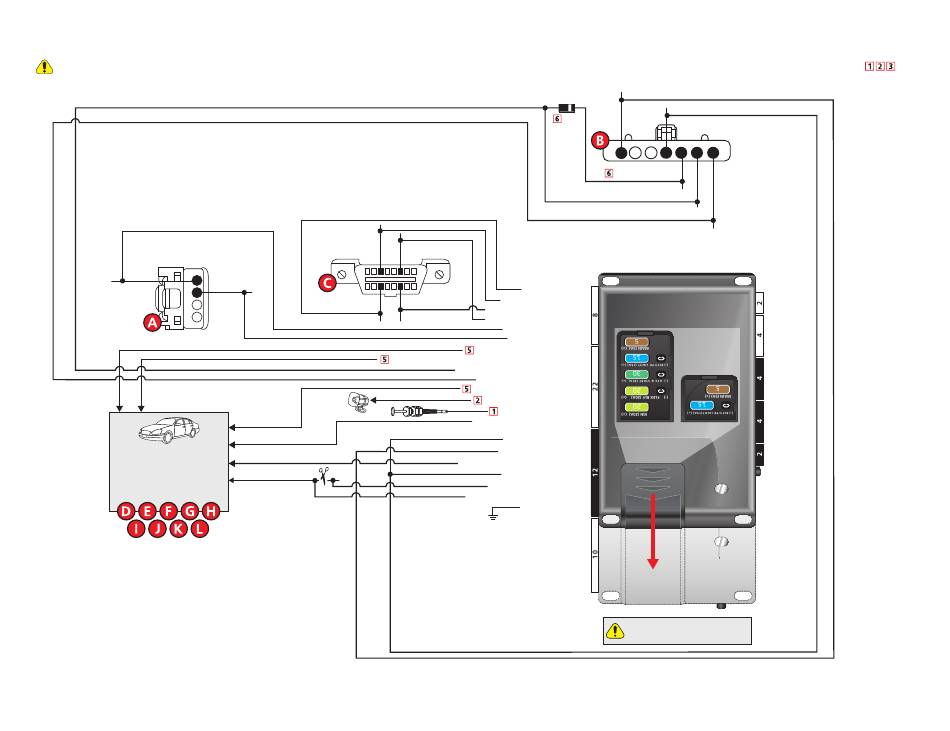

Directed DS4+ Installation Manual page 9

Type 1
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
P.A.T.S. - 4-pin
(at ignition switch)
RX: Pin 4
4
TX: Pin 3
3
2
1
Refer to the Vehicle wiring
reference charts for wire and
connector details related to
the standard connections in
the vehicle.
9
OBDII Diagnostic
(connector side view)
MS CAN High: Pin 3 HS CAN High: Pin 6
1
9 16
MS CAN Low: Pin 11 HS CAN Low: Pin 14
(-) Trunk Hatch Release/Power Liftgate Output: Red/White: 4
Siren
Driver Door Trigger
Cut
1A Diode
8
MS CAN Low: Tan: 1
MS CAN High: Tan/Black: 2
HS CAN Low: Orange/Brown: 3
HS CAN High: Orange/Green: 4
Data RX: Orange/Black: 7
Data TX: Yellow/Black: 8
(-) Lock Output: Dk. Green/Black: 3
(+) Accessory/Keysense Output: White: 7
(+) Starter Output: Violet/Black: 8
(-) Unlock Output: Dk. Blue/Black: 9
(+) Siren Output: Brown/Red: 11
Hood Pin
(-) Hood Pin Input: Gray: 21
(AC) Tach Output: Violet/White: 22
(+) 12V Input: Blue/Red: 2
(+) Ignition Output: Blue: 3
(+) Parking Light Output: White: 5 & 11
(+) 12V Input: Red: 6 & 12
RAP Off Interrupt: Lt. Green: 8
RAP Off Interrupt: Lt. Green/White: 9
(-) Ground: Black: 10
(+) Ignition: Pin 1
(+) 12V: Pin 4
Ignition Switch
1 2 3 4 5 6 7
(black conn.
at ign. switch)
(+) Keysense: Pin 5
(+) Accessory: Pin 6
(+) Start: Pin 7
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
© 2017-12-13 Directed. All rights reserved.
).
DS4+ FORD6
