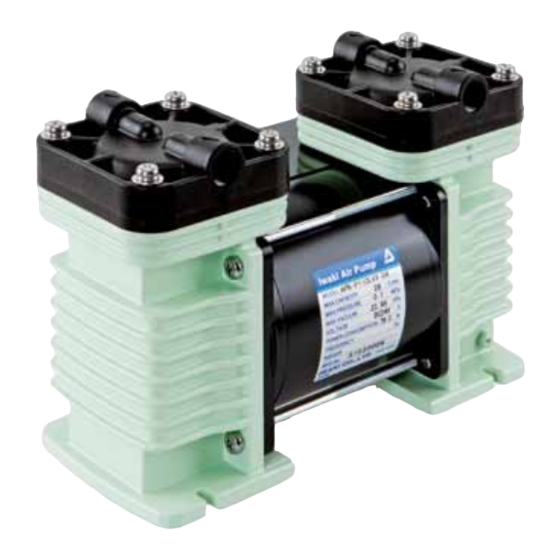

- Page 1 Iwaki Air Pump APN-P110-D4 (built-in type) Instruction manual Thank you for choosing our product. Please read through this instruction manual before use. This instruction manual describes important precautions and instructions for the product. Always keep it on hand for quick reference.
-
Page 2: Order Confirmation
Order confirmation Open the package and check that the product conforms to your order. If any problem or inconsistency is found, immediately contact your distribu- tor. a. Check if the delivery is correct. Check the nameplate to see if the information such as model codes, discharge capacity and discharge pressure are as ordered. -
Page 3: Table Of Contents
Contents Order confirmation ..................... 2 Safety instructions ............... 5 WARNING ......................6 CAUTION ......................7 Precautions for use ..................9 Overview ..................12 Introduction .....................12 Pump structure & Operating principle ............12 Part names.......................13 Identification codes ..................14 Installation .................. 15 Pump mounting ....................15 Pipework ......................16 Tube connection ..................16 Wiring .......................17... - Page 4 Maintenance ................21 Troubleshooting ....................21 Inspection ....................... 23 Daily inspection ..................23 Wear part replacement .................. 24 Wear part list ....................24 Before service ....................24 Diaphragm replacement ................25 Valve replacement ..................26 Specification/Outer dimension ..............27 Specification ....................27 Outer dimension ..................28 Performance curves ...................
-
Page 5: Safety Instructions
Safety instructions Read through this section before use. This section describes important information for you to prevent personal injury or property damage. ■ Symbols In this instruction manual, the degree of risk caused by incorrect use is noted with the following symbols. Please pay attention to the information associated with the symbols. -
Page 6: Warning
WARNING Turn off power before service Risk of electrical shock. Be sure to turn off power to stop the pump and related devices before service is performed. Electrical shock Stop operation If you notice any abnormal or dangerous conditions, suspend op- eration immediately and inspect/solve problems. -
Page 7: Caution
CAUTION Qualified personnel only The pump should be handled or operated by qualified personnel with a full understanding of the pump. Any person not familiar with the product should not take part in the operation or maintenance of Requirement the pump. Keep electric parts and wiring dry Risk of fire or electric shock. - Page 8 Preventative maintenance Follow instructions in this manual for replacement of wear parts. Do not disassemble the pump beyond the extent of the instructions. Requirement Do not use a damaged pump Use of a damaged pump could lead to an electric shock or death. Prohibited Disposal of a used pump Dispose of any used or damaged pump in accordance with local...
-
Page 9: Precautions For Use
Precautions for use • Electrical work should be performed by a qualified electrician. Otherwise, personal injury or property damage may result. Caution • Do not install the pump in a place where the pump can get wet. Avoid using wet gas, or internal con- densation will build up and consequently result in the short lives of the valve and diaphragm. - Page 10 • Do not tube pump heads in series. It may prevent the motor from starting, causing burning out or may damage the diaphragm or piping. • Do not tube two or more pumps in series. It may prevent the motor from starting and lead to a burn out.
- Page 11 • The pump can not start with full discharge/suc- Suction pressure tion pressure. Remove pressure before operation. After a long period of stoppage, pump perfor- mance at the beginning of operation becomes occasionally unstable. In this case, warm the pump up for 10 minutes with no discharge line pressure.
-
Page 12: Overview
Introduction Pump structure & Operating principle The APN-P110-D4 is a diaphragm type air pump with a brushless DC motor. The rotary motion of the motor is converted through a connecting rod to the reciprocation of the diaphragm in the pump chamber, where gas is transferred from the inlet to outlet. -
Page 13: Part Names
Part names Pump head Not capable of liquid transfer. Air transfer purpose only. Outlet Inlet Outlet Inlet Base Always fix with screws. Specification label Use the pump accord- ing to the specifica- tions on the label. Pump body (with a built-in drive unit) Part names... -
Page 14: Identification Codes
Identification codes The model code represents the following information. APN - P 110 L V X - D4 - 02 c d e a. Pump head : Dual-head b. Pump size c. Tubing direction : In-line type d. Diaphragm/Valve materials : EPDM : FKM e. -
Page 15: Installation
Installation This section describes the installation of the pump, tubing and wiring. Read through this section before work. Observe the following points • Risk of electrical shock. Be sure to turn off power to stop the pump and related devices before service is performed. •... -
Page 16: Pipework
Pipework Connect tubes to the pump. Tube end (Side view) Before operation • Cut the tube ends flat. Tube connection a. The short tubing with the minimum bends is optimal to reduce resist- ance. b. Use vinyl tubes resistant to the pumping pressure. Tube I.D. -
Page 17: Wiring
Wiring Wiring for power source, earthing and external signal. Observe the following points • Electrical work should be performed by a qualified electrician. Conform to local electric codes. • Do not perform wiring work while power is on. Otherwise, an electrical shock or short circuit may result, and consequently the pump may fail. - Page 18 • In order to make the ON-OFF operation, install the switch between the DC power supply and the pump. Installing it between the DC power supply and the AC power supply, the pump may not run. Good No good DC power DC power supply supply...
-
Page 19: Operation
Operation The pump becomes ready after pipework and wiring is completed. Pump operation Start-up Before operation a. Check that the pump is firmly fixed on a mounting position. b. Check that a suction tube is connected to the inlet and a discharge tube is connected to the outlet. -
Page 20: Before A Long Period Of Stoppage (1 Week Or More)
After the pump has reached a specified stroke rate, initiate full scale operation. • Always adjust an air flow by a suction valve. • In case electric power has failed while the pump is running, switch off main power. Otherwise, the motor may not restart or may burn out depending on a line pressure at the time of power recovery. -
Page 21: Maintenance
Maintenance This section describes troubleshooting, inspection, wear part replacement, exploded views and specifications. Observe the following points • Follow instructions in this manual for replacement of wear parts. Do not disassemble the pump beyond the extent of the instructions. • Always wear protective clothing such as an eye protection, chemical resistant gloves, a mask and a face shield during disassembly, assembly or maintenance work. - Page 22 Pump Power voltage is too low or too • Observe the rated voltage of operation high. 24VDC. unintention- Suction line pressure is higher than • Keep it lower than atmospheric ally stops. atmospheric pressure. pressure. Discharge line pressure is higher •...
-
Page 23: Inspection
Inspection Perform daily and periodic inspections to keep pump performance and safety. Daily inspection Check the following points every day. If you notice any abnormal or dangerous conditions, suspend operation immediately and remove problems according to "Troubleshooting". When wear parts come to the life limit, replace them by new ones. Contact your distributor for detail. -
Page 24: Wear Part Replacement
Wear part replacement To run the pump for a long period, wear parts need to be replaced periodically. It is recommended that the following parts are always stocked for immediate replacement. Contact your nearest distributor for detail. Wear part list If pump performance has remarkably reduced, replace diaphragms and valves with new ones. -
Page 25: Diaphragm Replacement
Diaphragm replacement Unscrew all the pump head fixing screws. Pump head Take out the combination of the pump fixing screw head, valve and valve seat. * Do not separate each part. Pump head Remove the diaphragm fixing screw Valve Mating and detach the retainer plate and dia- point Valve seat... -
Page 26: Valve Replacement
Valve replacement Unscrew the pump head fixing screws. Take out the pump head and valve from the valve seat. Replace the old valve with new one. Always check the mating point and fit a new valve onto the valve seat. Mount the pump head. -
Page 27: Specification/Outer Dimension
Specification/Outer dimension Specification Information in this section is subject to change without notice. Max dis- Motor Connection Lowest Max air charge Model code Weight starting flow pres- vacuum Power Rated Tube Thread temp. sure con. current APN-P110 LV 23.99 (14×2) 55.2W ø8 Rc1/4... -
Page 28: Outer Dimension
Outer dimension X type 4×Rc1/4 (134) (212) (500) (103) Performance curves 0.15 0.10 Discharge pressure (MPa) 0.05 101.32 74.66 Vacuum pressure AIR FLOW (kPa) [abs] (L/min) 47.99 23.99 21.33 7.99 Specification/Outer dimension... -
Page 29: Part Names & Structure
Part names & Structure Part names Q'ty Part names Q'ty Pump head Connecting rod Valve Bracket Valve seat Motor Diaphragm Set screw Retainer plate Screw Eccentric shaft Screw with washer Bearing Screw Under retainer plate Specification/Outer dimension... - Page 32 TEL : (47)23 38 49 00 FAX : 23 38 49 01 China IWAKI Pumps (Guangdong) Co., Ltd. TEL : (86)750 3866228 FAX : 750 3866278 Singapore IWAKI Singapore Pte. Ltd. TEL : (65)6316 2028 FAX : 6316 3221 China GFTZ IWAKI Engineering &...
