- Page 1 IWAKI Auto-Dampener PDA-W Instruction Manual Read this manual before use of product This is patent pending product...
-
Page 2: Table Of Contents
We thank you for selecting IWAKI Auto-dampener PDA-W series. This instruction manual, which is divided into five sections of "Safety", "Outline of product", "Instal- lation", "Operation" and "Maintenance", deals with the correct handling and opera- tion procedures for the auto-dampener. To make maximum use and to ensure safe and long time operation of the auto-dampener, please read this manual thoroughly and carefully prior to operating the auto-dampener. -
Page 3: Safety Section
Important instruction For the Safe and Correct Handling of the Auto-dampener ● Before use of the auto-dampener, read this "Safety Section" to prevent accidents and to avoid the damage or loss of assets. ● Observe and abide by the instructions described in this "Safety Section". These instructions are very important for protecting pump users or other persons from hazard or loss of assets. - Page 4 Safety instruction WARNING ● Power off Be sure to turn off power prior to any inspection/maintenance and installation works. Be careful power is not turned on unintentionally while working on the dampener. In a noisy or dark place, display a sign Power off of "Men Working"...
- Page 5 Safety instruction CAUTION ● Countermeasure against static electricity When low electric conductivity liquid such as the ultra-pure water and the fluor inactive liquid (e.g. Fluorinert™) are handled, static electricity may generate in the pump, which may cause a static discharge and the pump breakage.
-
Page 6: Outline Of Product
Product outline ......1. Unpacking and inspection ........2. Outline of product ..........3. Model code ..........4. Specification ......... 5. Dimension and mass ....6. Structure and names of parts ......7. Main parts and labelling - 4 -... -
Page 7: Unpacking And Inspection

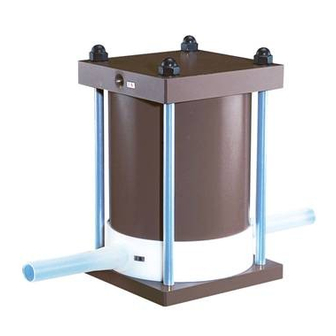

(2) if the product is not broken or bolts and nuts are not loosened during transportation. 2. Outline of product IWAKI auto-dampener the PDA-W series are exclusively designed for the pneumatic driven bel- Air exhaust Air supply lows pump to dampen the liquid pulsation. -
Page 8: Specification
4. Specification Model PDA-20W PDA-40W PDA-80W Applied pump FW-20, FS-30 FW-40, FS-60 FW-80 10-100 101-150 151-180 10-100 101-150 151-180 10-80 Temp. range ( ) Max. liquid press. (MPa) Supply air press. (MPa) 0.2-0.5 0.15-0.3 0.15-0.2 0.2-0.5 0.15-0.3 0.15-0.2 0.2-0.5 Within 0.06 (in case liquid viscosity is within 1 - 50 mPa•s) Pulsation press width (Mpa) Liquid pipe connection PFA tube ø19 mm ø... -
Page 9: Dimensions And Mass
5. Dimension and mass ■ PDA-20, 40, 80W Mass (kg) ø 19 × ø 16 PDA-20W ø 25 × ø 22 PDA-40W ø 25 × ø 22 PDA-80W - 7 - - 7 -... -
Page 10: Structure And Names Of Parts
6. Structure and names of parts ■ PDA-20, 40, 80W Name Q'ty Material Remarks Name Q'ty Material Remarks Bellows unit PTFE, PFA 16 Slider pin SUS304 Cylinder A6063 Fluor coat O-ring Plate A5052 Fluor coat Cap nut Fluor coat OUT guide SUS304 Plate washer Fluor coat... -
Page 11: Main Parts And Labelling
7. Main parts and labelling OUT label Nameplate shows model and MFG.No. Air exhaust port OUT label Air supply port Discharge port IN label Cover IN label Suction port Fix the cover at installation - 9 - - 9 -... -
Page 12: Installation
Installation ..........1. Before use ..........2. Installation ............3 Piping - 10 -... -
Page 13: Before Use
1. Before use (1) Do not stop the supply air to the dampener while discharge piping is pressurized. Otherwise the bellows may be deformed. Also, the pulsation reduction effect can not be received. (2) Do not use the dampener at a higher pressure than the specified pressure of the pump. The dampener may fail if it continuously operates exceeding the max. -
Page 14: Piping
3. Piping ■ Liquid piping Piping example (1) There is the distinction of suction and discharge Filter side tubes of dampener. Pay attention to the con- Pressure gauge nection. "I" is marked for suction side and "O" Discharge side (PG2) for discharge side. - Page 15 ■ Air piping CAUTION Use the instrument air which is dust free and dehumidified as supply air. If the supply air contains foreign matters, water, or oil, the pressure adjusting valves may malfunction and air may leak from the air exhaust port. (1) Air piping should be connected to the dampener on the discharge tube beyond the pressure reducing valve.
-
Page 16: Operation
OPERATION ......1. Preparation for operation ........... 2. Operation ............. 3. Stopping - 14 -... -
Page 17: Preparation For Operation
1. Preparation for operation When the pump is operated first time together with the dampener, check the followings. (1) Check to see if no damage, loosened bolts or leakage are found on dampener (pump). (2) Air pressure adjustment This auto-dampener automatically adjusts the air pressure to be sealed depending on handled liquid pressure, which requires no adjustment on the dampener. -
Page 18: Stopping
CAUTION Do not run the pump in time-lag operation. In the time-lag operation, the bellows of auto- dampener may fail in a short time. Also pulsation dampening effect can not be obtained. When the auto-dampener is used, the time-lag should be zero. Time-lag operation: When proximity switches detects the bellows movement and the switching-over signal is transferred to the solenoid valve, the switching-over signal is outputted with time lag. -
Page 19: Maintenance
Maintenance ........1. Troubleshooting ...... 2. Maintenance & inspection ........3. Consumable parts - 17 -... -
Page 20: Troubleshooting
1. Troubleshooting Trouble Cause Countermeasure Inspection & check items Large pulsation Too high discharge pres- ○ Check filter and replace. a. Filter blinding or drying ● sure. b. If filter is wetted enough. (Beyond speci- fied range) Air pressure adjusting valve ○... -
Page 21: Maintenance And Inspection
2. Maintenance & inspection WARNING ● Wear protectors When piping is removed or pump is disassembled/assembled, wear protective gear such as safety goggles and protective gloves etc. ● Release pressure inside piping If pressure is not released from piping, liquid may be splashed. Release residual pres- sure before maintenance works start. - Page 22 U.S.A. : IWAKI America Incorporated TEL : (1)508 429 1440 FAX : 508 429 1386 Australia : IWAKI Pumps Australia Pty. Ltd. TEL : (61)2 9899 2411 FAX : 2 9899 2421 Italy : IWAKI Italia S.R.L. TEL : (39)02 990 3931...
