8. If defining a ditch enter the depth of the ditch as a negative value
in the Height field. If defining a curb, enter the height of the curb
as a positive value in the Height field.
9. Enter the horizontal width of the curb or ditch in the Offset From
Edge of Road field.
Note: You can tap in the graphic portion of the screen to open the
graphic in a larger window.
10. Tap Next > to continue to the next screen.

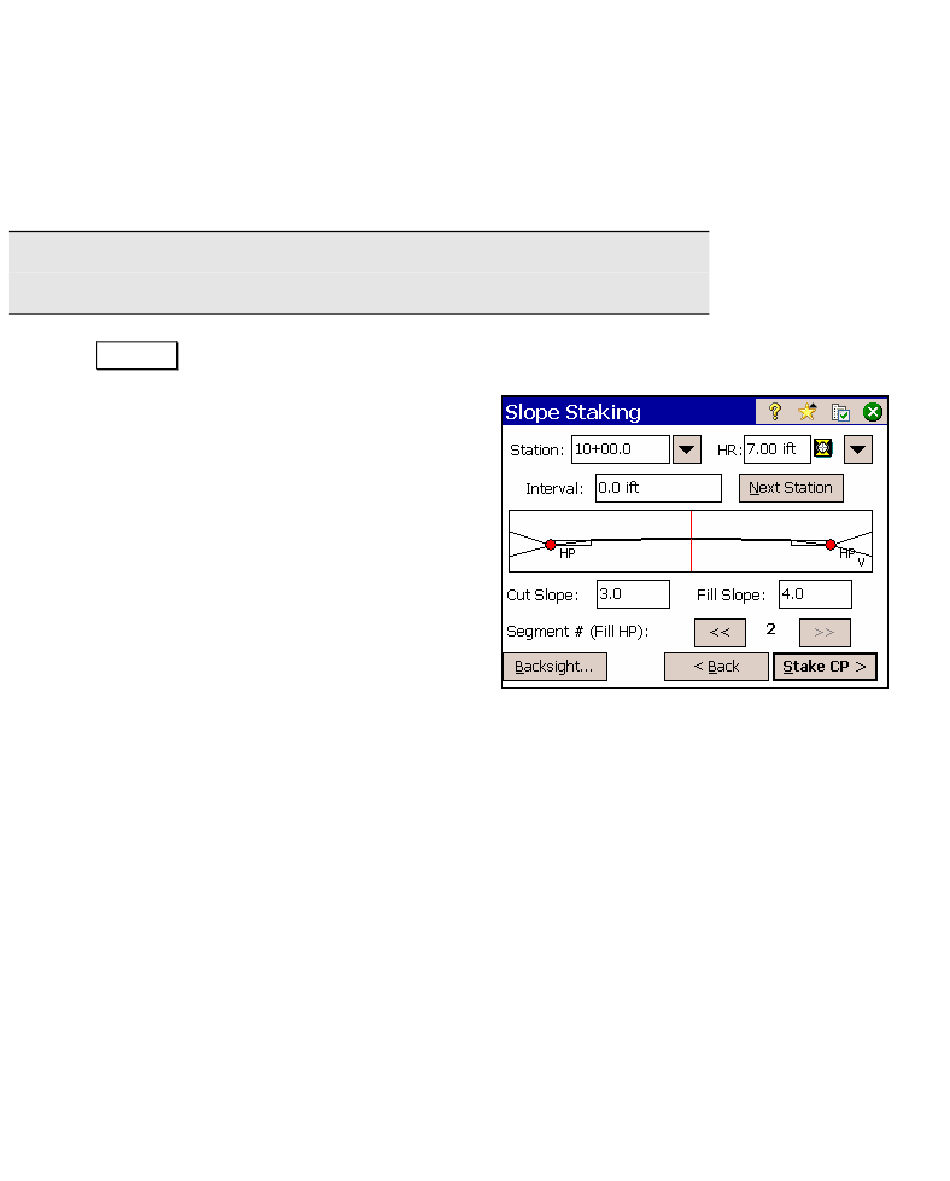

11. Enter the first station that you want to
stake in the Station field. This station will
be referenced from the Begin Station,
assigned to the starting point of the
centerline earlier.
12. Enter the distance between each station
that you want to stake in the Station
Interval field.
13. Enter the Fill Slope and Cut Slope in the
respective fields. These slopes will be used
to compute the location of the catch point
for either cut or fill situations.
