User's Manual – Conventional Mode

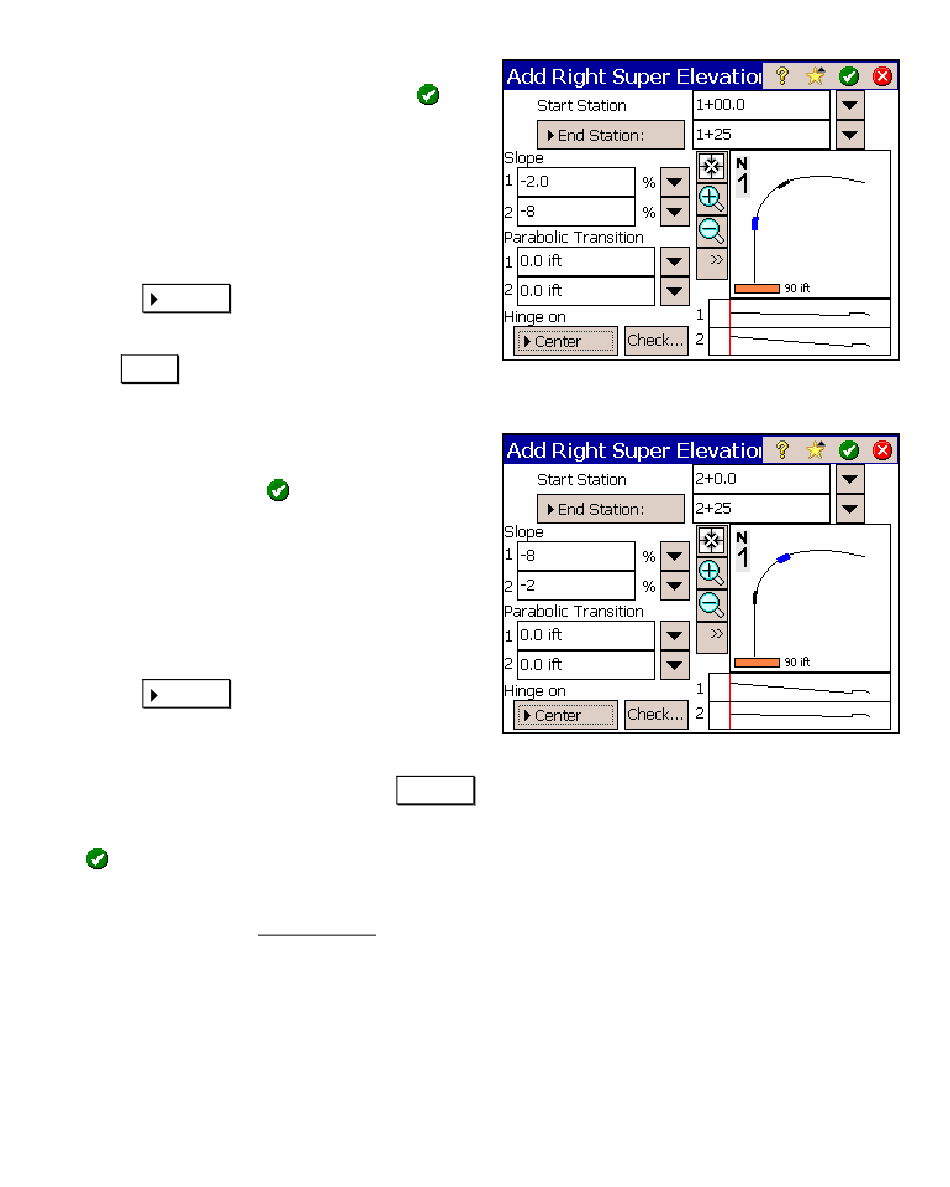

34. Enter the following data just as you did for
the left side of the road and then tap
Start Station: 1+0
End Station: 1+25
Slope 1: -2
Slope 2: -8 (note this is a negative value)
Parabolic Transition 1: 0.0
Parabolic Transition 2: 0.0
Center
Hinge on:
35. With <End> selected in the Right column,
tap the Add... button again to add the final
super elevation.
36. Enter the following data to describe the
second super elevation on the right side of
the road and then tap
Start Station: 2+0
End Station: 2+25
Slope 1: -8
Slope 2: -2
Parabolic Transition 1: 0.0
Parabolic Transition 2: 0.0
Center
Hinge on:
37. This completes the definition for an entire
road including templates, widenings and super elevations. To
make sure there are no errors, tap Check.... You should get a
message stating success.
38. Tap to save the road.
You are now ready to stake the road in the field. Close any open
windows to return to the Main Menu.
