Ú Note:
The display key on the O2000 controller is only used for configuration. The
behavior described in the O2000 User manual is not relevant when used in an R5000
system.
Assigning the O2000 to a control station

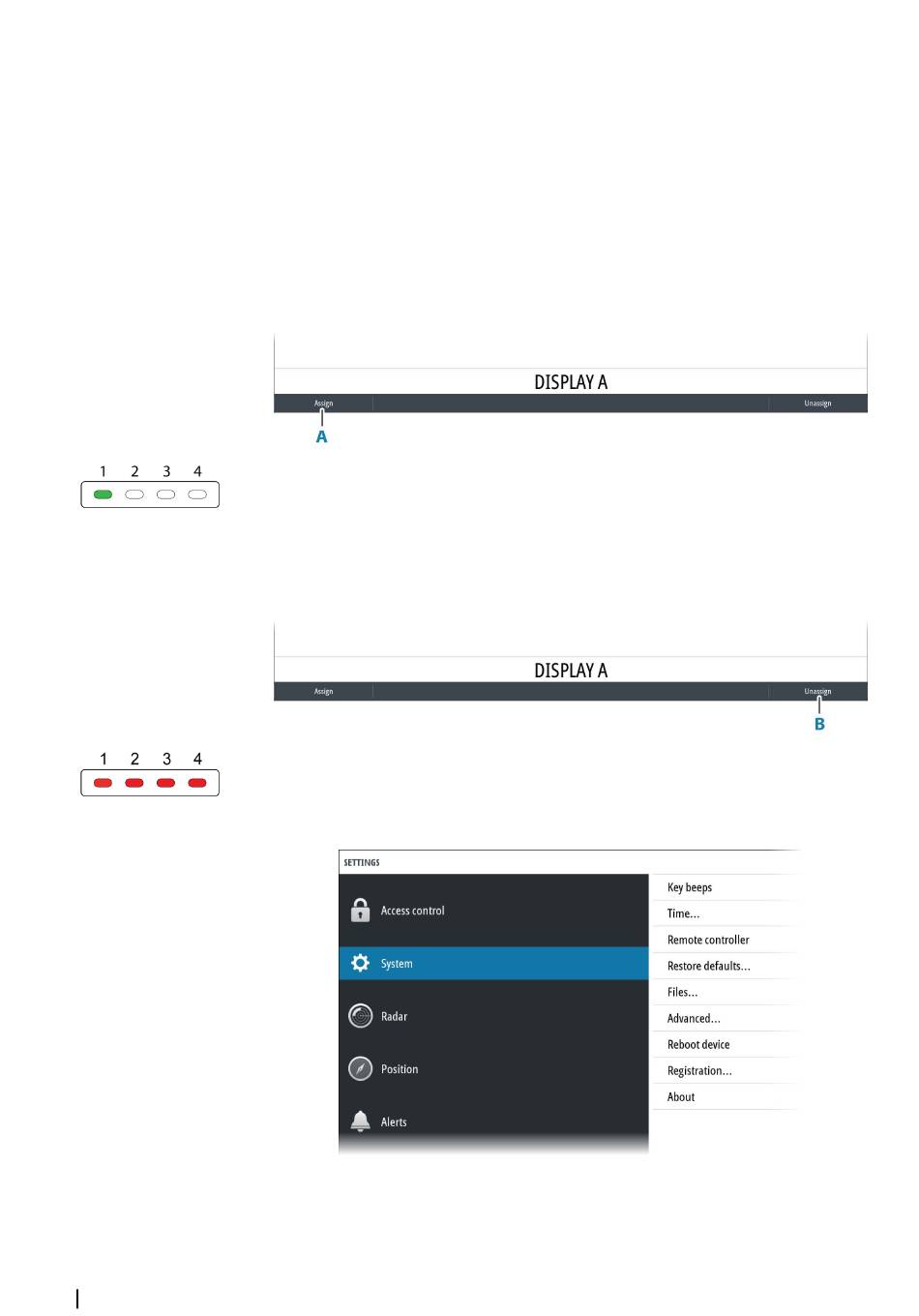

With the O2000 configuration dialog open:
1.
Press the 1, 2, 3 or 4 key on the O2000 to assign the radar control station to LED position 1,
2, 3 or 4 respectively
Ú Note:
By default, a radar station is assigned to LED position 1. Other LED positions might
be used in a multiple radar installation where the LED can be used to indicate the
location (left to right) of the radar control station.
2.
Select the assign button (A) to confirm your selection and to exit configuration mode
The assigned LED on the O2000 is now green to indicate that the unit is assigned to operate
the connected radar control station.
Un-assigning the O2000 control unit
With the O2000 configuration dialog open:
1.
Press the 1, 2, 3 or 4 key on the O2000 controller to select the assigned LED position
2.
Select the un-assign button (B) to un-assign the O2000 and to exit configuration mode
All LEDs on the O2000 are now red to indicate that the unit is not assigned to operate any
radar control station.

System settings

Key beeps
Controls the loudness of the beep sound when a key is pressed.
