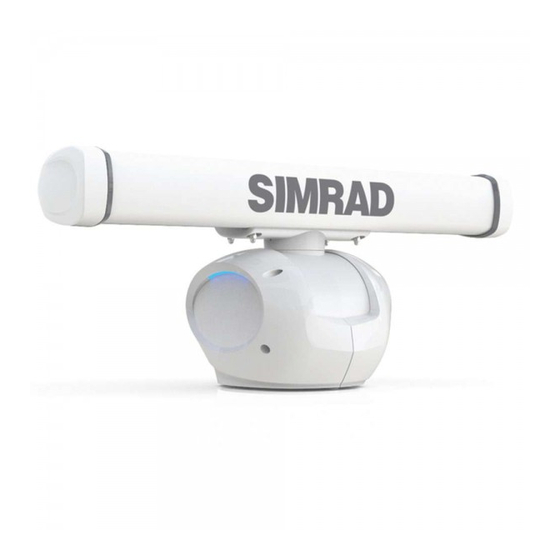

Simrad Halo 000-11468-001 Product Brief

Hide thumbs

Advertisement

Quick Links

Download this manual
™
PRODUCT BRIEF Halo
Pulse Compression Radar
A REVOLUTION IN RADAR
External Final
Don Korte, PM
th
April 15
, 2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the Halo 000-11468-001 and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad Halo 000-11468-001

Summary of Contents for Simrad Halo 000-11468-001

  • Page 1 ™ PRODUCT BRIEF Halo Pulse Compression Radar A REVOLUTION IN RADAR External Final Don Korte, PM April 15 , 2015...

  • Page 2: Product Overview

    Product Overview...
  • Page 3 Halo™ - Product Description - Styling...
  • Page 4 Halo™- Arrays...
  • Page 5 Halo™- Main Components Antennas: 3ft , 4ft, 6ft Pedestal RI-12 Interface box...
  • Page 6 72nm Range Meets latest, tough EU RF emission regulations • 1.2° Beamwidth <0.8° Target Works exclusively with SIMRAD NSS and NSO evo2 MFD systems • HALO-6 Separation @ High Commercial Grade - built for long life, reliable duty cycle •...
  • Page 7 GoFree screen mirror application. This is not streaming video, but a radar screen replication. SPECIAL NOTE: • Older, SIMRAD non-evo2 version MFDs such as NSS, NSO, NSE do not function with Halo. Also all LOWRANCE MFDs do not function with Halo.
  • Page 8 Halo™- Integration Multifunction Displays, Systems, and Control • Compatible only with newest multifunction NSO/NSS evo2 . • Uses same cable as 3G/4G – available in 10/20/30m. 20m is standard. • New Radar Processor box RI-12 has and same yellow Ethernet network connectors as 3G/4G.
  • Page 9 Halo™- Competitor Comparis FURUNO RAYMARINE GARMIN SIMRAD HALO™ “UHD” Models 4 models HD/SHD Series 3 models xHD2 Series 3 models SIMRAD 3.5’ DRS4A 4kW; 4/6’HD 4kW; 4’ xHD2 4kW; HALO™ Pulse Compression Radar 4’ DRS6A 6kW 4/6’SHD 4kW 4/6’xHD2 6kW 3’/4’/6’...
  • Page 10 Dual Range operation is available with Simrad NSS and NSO display systems and our DSP technology has NO target detection degradation in Dual Range mode.
  • Page 11 ™ Halo - Product Description HALO™ Pulse Compression Radars have: Solid State Broadband X-Band 25W Transceiver in pedestal using Pulse Compression Technology - no magnetron lifetime degradation or AFC tuning issues – EVER. Unprecedented Target Resolution using Beamsharpening (with Target Separation Control) for all the open array antennas.
  • Page 12 ™ Halo - Safety benefits HALO™ Pulse Compression Radars have only 25w peak RF power An open array is never quite huggable for servicing dealers but Halo gets as close as possible and 100% safe outside the swing circle of the antenna for all models for anyone Model 100W/m2 –...
  • Page 13 Halo™- Ease of Use Setup is 100% easy…...Just: • Select antenna size – 3/4/6’ • Set antenna height – default is 13 ft • Set the BEARING ZERO to align with your vessels lubber line No Range Offset is ever needed No AFC tuning is required Auto Harbour/Offshore/Bird/Weather optimized out of the box.
  • Page 14 Halo™- USER Modes Advantages Custom: Manual Control Harbour: Best resolution to provide a clear image in a congested environment. Sea clutter control is optimized to suppress wind-borne chop and handle strong close land targets. Offshore: Low resolution to present isolated point targets as large and easy-to-see returns.
  • Page 15 SPECIAL NOTE: Release #1 (RTM1) does not include: Buoy Netfinder SaRT Latest Software Versions for MFD and Halo are on SIMRAD website. Check for updates regularly for latest functionality. Minimum baseline code: NSS_evo2: V2.0-51.1.80 NSO_evo2: V3.0-51.1.80 Halo: V5.1.0 or later...
  • Page 16 - NOT as safe as 3G/4G. “Cannot be hugged”. emissions - Can run in anchorages and marinas Connects to range of SIMRAD evo2 multi-function displays via Ethernet using RI-12 Interface Connectivity and box. Same radar cable to scanner as 3G/4G. Easier to install with small diameter connectors Installation and thinner/lighter cabling than competitor Open Arrays.
  • Page 17 ™ Halo - Product Description - Models Halo System Part Numbers: Halo P/N Navico EAN Description SPECIAL NOTE: 000-11468-001 9420024128794 HALO RADAR, NO ARRAY w/RI12/20M CBL Release #1 excludes sales 000-11469-001 9420024128800 HALO 3 RADAR, w/3’ ARRAY/RI12/20M CBL 000-11470-001 9420024128817 HALO 4 RADAR, w/4' ARRAY/RI12/20M CBL 000-11468-001 000-11471-001 9420024128824 HALO 6 RADAR, w/6' ARRAY/RI12/20M CBL...
  • Page 18 ™ Halo - Product Description – RI-12 ALL Halo Models use SIMRAD’s new, universal RI-12 Radar Interface Box: Designed to accommodate either vessel 12 and 24 volt systems and used for all Halo models Rugged screw in power connector block (DC cable not supplied –...
  • Page 19 Technology and Design...
  • Page 20 Halo™ - Radar Technologies...
  • Page 21 Halo™- What made it possible… X-band pulse compression radar has only become possible outside the military around the last 5 years or so. The first non-military X-band marine pulse compression radar was the Kelvin-Hughes’ Sharpeye. This radar can only be made in small volumes and is extremely expensive. What has made Halo Pulse Compression radar affordable for the recreational marine market? Solid State transmit power: Gallium Nitride (GaN) X-band power amplifier devices.
  • Page 22 Halo™ - Radar Technologies Range SHORT SHORT-MEDIUM MEDIUM MEDIUM-LONG LONG 0-0.1KM 0.1KM -2KM 2KM-20KM 20KM-50KM >100KM PULSE RADAR – 6kW FMCW (3G/4G) RADAR Halo sees radar targets as close as 20ft from the radar - 3G/4G sees as close as 10ft. Halo™...
  • Page 23 Halo™ - What Is It? HALO™ Pulse Compression Radar has Combined Characteristics...
  • Page 24 Halo™ - Conventional Pulse Radar Short high-power pulse Power 100nsec Fixed Frequency: 9.4GHz Transmitted Object Radar Reflected Time The radar transmits a powerful, but very short pulse, at fixed frequency. The pulse propagates outwards in a direction determined by the angle of the rotating radar antenna at the time of transmission.
  • Page 25 Halo™ - How Navico 3G/4G Works Navico Broadband Radar - Long Swept Frequency Modulated pulse FMCW = Frequency Modulated Continuous Wave (a Frequency Diversity mode) The transceiver transmits a ‘rising tone’ (Tx wave) with linear increasing frequency – at the same time the signals are received –...
  • Page 26 Halo™ - How Halo™ Works Navico Halo Pulse Compression - Medium power FM ‘Chirp’ Halo™ Pulse Compression technology is somewhat similar to the Navico “Chirp” technology, except for custom modulation/Burst RF Transmission sequences and applied to radar instead of sonar. A ‘chirp’...
  • Page 27 Halo™ - 6 Radars in 1 - ‘Chirp Burst’ Navico Halo Pulse Compression - FM ‘Chirp Burst’ Simple pulse compression method of transmitting a single chirp is not possible or practical: • A short chirp gives good minimum range but poor long range target detection •...
  • Page 28 Halo™- Image Composition Each chirp covers sub-range of the full radar range. For example: NOTE: Each pulse/Chirp covers up to the blind range of the next longer chirp. LONG Tx times creates huge dead zones (main bang time) that have to be managed well in DSP. A Radar Mile = 12.1us to target and back, so a 96us long pulse = ~7.9nm.
  • Page 29 Halo™- Image Composition The sub-ranges are seamlessly joined together to build a complete radar image NOTE: It is important to match STC values across the chirp boundaries or a target discontinuity will occur. Notice the smooth, clean target image crossing the chirp1 and chirp 2 range edges.
  • Page 30 Halo™- How Halo™ Works Halo™ Pulse Compression – How is a 25W Halo a 6kW equivalent?
  • Page 31 HALO radars target detection performance is below with Noise Rejection = HIGH. HALO-4 has similar target detection performance as SIMRAD 6kW TX06S-1. SPECIAL NOTE: IMO standard IEC 62388 target detection specs are met with a HALO-6/HALO-4 installed 15m high. Beacon /Racon triggering range is around 1nm - less than the 5nm IMO spec.
  • Page 32 Product Placement & Proof of Performance...
  • Page 33 Halo™- Pulse Compression Radar Hand Selected Cool Radar Performance Shots...
  • Page 34 Halo™- Proof of Performance Halo4 + Garmin 6kW 4 xHD Halo4 + Ray 4kW4’ SHD Halo-4 + Garmin 6kW 4’ xHD...
  • Page 35 Halo™- Proof of Performance HALO 4 + Furuno 6kW 4’ DRS-6A...
  • Page 36 Halo™- Proof of Performance Florida, USA Halo™ with 4’ Array + TX06S-1 6kW 4’ Halo™ with 6’ Array + TX06S-1 6kW 4’...
  • Page 37 Halo™- Proof of Performance NZ SEALINK with Halo™ + 4G running with daily ferry service Local NZ Charter Boat...
  • Page 38 Halo™- Long Range – past 65nm...
  • Page 39 Halo™- Fine Grained Weather...
  • Page 40 Halo™- Beam Sharpening – like 4G NOTE: ALL Halo models have Beam Sharpening – 6’ array has an unprecedented 0.8 degrees...
  • Page 41 Halo™- Beam Sharpening – like 4G SUPERIOR TARGET SEPARATION Halo™ shows clear separation of even the smallest targets, as seen in this sailing dingy race.
  • Page 42 Halo™- Rock Jetty in NZ...
  • Page 43 Halo™- Proof of Performance The best BIRD FINDING boat in the world (Whales and Dolphins Tour Vessel) is located in Auckland. They are partners and have had both Halo™ and our TX06S-1 6kW 4’ radars on board. Halo-4 Literally thousands of on-water radar hours have been logged with all these and other...
  • Page 44 Halo™- Dual Range Sees targets 20’ from the radar...
  • Page 45 Halo™- Short Range + smallest main bang Halo™ easily sees Kayaks and paddle boarders REAL 20’ (9m) Main Bang - No competition here! Other pulse radars are at least 85’ and more...
  • Page 46 Halo™- Trails with Fast Update Halo shows target trails of 4 fast moving jets skis in Clearwater, FL. harbor...
  • Page 47 Halo™- Birdfinder Radar Got BIRDS?
  • Page 48 Halo™- Birdfinder Radar We Do….FISH ON!
  • Page 49 Halo™- Birdfinder Radar 2X Zoom Fisherman’s Dream! Birds mean fish. In NZ, Halo’s dedicated BIRD mode means it’s easy to find flocks of birds – >3.5nm here. Notice that this mode does not fill the screen with high gain clutter. DSP magic.
  • Page 50 Halo™- Birdfinder Radar More “spread out”, individual large birds are even seen...
  • Page 51 Halo™- BONUS – Halo Target detection in Rain The unique properties of pulse compression mean Halo sees through rain better at short range (best for collision avoidance) while still seeing distant rain (that you want to avoid) as well as conventional pulse radar. This applies regardless of what user range the radar is operating on.
  • Page 52 Halo™- Sector Blanking Halo Sector blanking (available in release #2 code in May) has up to 4 zones with 3 magenta arcs...
  • Page 53 Halo™- Sector Blanking Halo Sector Blanking on water showing 2 zones with 3 magenta arcs...
  • Page 54 Halo™- Sector Blanking Halo Sector on water showing 2 zones with 3 magenta arcs with chart overlay...
  • Page 55 Halo™- Actual Results...
  • Page 56 Halo™- Actual Results...
  • Page 57 Halo™- Actual Results Halo easily sees all targets and 11m RIB to ~9nm – horizon limits – radio confirmed...
  • Page 58 Halo™- Live Our fully loaded Yellowfin DEMO at Hawk’s Cay Jan 2015 Media Event...
  • Page 59 Halo™- Blue Light Now the really COOL part…. Our HALO pedestal has BLUE BLING Recessed, illuminated, soft glow Blue LED accent pedestal lighting with 4 level control COOL GLOW! NAVICO Legal Disclaimer Statement: Halo™ Pulse Compression Radar’s blue 4 level static accent pedestal lighting may not be approved for use in your boating location.
  • Page 60 Halo™- Blue Light Our HALO Radar is badly PARTY TIME needed here BLUE all over...
  • Page 61 Advanced User Functionality and Specs...
  • Page 62 Halo™- Construction Features Stunning styling with unique blue night lighting Designed for long maintenance free operation • Brushless motor • Helical gear transmission • Solid state transmitter – no loss of performance over product 10,000hr lifetime Commercial grade build quality •...
  • Page 63 35.5dba The SIMRAD HALO radar was 8dba quieter than Ray at high speeds and just 1dba more at 24RPM. Garmin was 6dba more than Ray at high speed. After 190 hrs of running continuously at 48RPM, the HALO sound level with the 6’ array was 45 dba.
  • Page 64 Halo™- Technical Specifications Description Halo™ Pulse Compression Scanner with Radar Interface Box RI-12. (20m cable supplied). FCC/IC/R&TTE Type Certification FCC ID: RAYHALO Type of emission IC ID: 4697A-HALO R&TTE: Emissions compliant to SM1541-4 (including -40dB/dec future design objectives) Operating Temperature: -25 to +55°C Relative humidity: IEC60945 Exposed product...
  • Page 65 Halo™- Technical Specifications Description Halo™ Pulse Compression Scanner with Radar Interface Box RI-12. (20m cable supplied). 3 ft model: 48nm Instrumented Range 4 ft model: 64nm 6 ft model: 72nm Plane of polarization Horizontal Polarization 3 ft model: 2.4°+/-10% (-3dB width) – 1.7deg with Beamsharpening Mode ON 4 ft model: 1.8°+/-10% (-3dB width) –...
  • Page 66 Halo™- Technical Specifications Description Halo™ Pulse Compression Scanner with Radar Interface Box RI-12. (20m cable supplied). SART/RACON Triggering Yes – trigger distance: about 1nm – weather, sea state, and SART position dependent (Future) Duplexer Circulator and isolator Mixer MIC front-end Center frequency: 28.625MHz Bandwidth:...
  • Page 67 Halo™- Dimensional Drawings - all models...
  • Page 68 Halo™- Dimensional Drawings Antenna rotation – maximum rotation...
  • Page 69 Halo™- Dimensional Drawing RI-12 Note: • It is best to mount the RI-12 vertically...
  • Page 70 Halo™- Mounting Antenna Tips NOTE: • A dual radar installation of 3G or 4G on same vessel as Halo needs to have vertical separation of at least 3m (9 ft).
  • Page 71 Halo™- Mounting Antenna Tips...
  • Page 72 Halo™- Mounting Antenna Tips Best Performance...
  • Page 73 Halo™- Mounting Antenna Tips...
  • Page 74 Halo™- Installation & Mounting Pedestal...
  • Page 75 Halo™- Installation Reference Tools Radar installation manual is on SIMRAD website. Below is Halo Drill Template – included.
  • Page 76 Halo™- Installation & Mounting Antenna Remove the protective cap from the pedestal and the protective tape on the antenna that protects the wave guide. Only remove the waveguides protective cap Immediately before installing the antenna Carefully lower the antenna on to the pedestal.
  • Page 77 Halo™- Installation & Mounting Pedestal Pole mount...
  • Page 78 Halo™- Pedestal Box Contents Part No. Description 000-11463-001 Radar pedestal Interconnection cable (20 m (65 ft) (other AA010212 lengths available) 089-0483-00 Lifting strap Blanking plug (used when interconnection 072-3263-001 cable is not rear exit 024-0305-00 Anti-corrosion grease 000-12514-001 Pedestal mounting bolts and washers a) Bolts, hex head, M12 x 35 mm, 316 s/s b) Bolts, hex head , M12 x 50 mm, 316 s/s c) Flat washer M12 x 36 x 3, 316 s/s...
  • Page 79 Halo™- Antenna Box + RI-12 Contents Key Part No. Description Key Part No. Description 000-11467-001 RI-12 Radar Interface Module Halo Antenna (one of the following) Ethernet adapter. RJ45 male to 5 pin female 000-11246-001 150 mm (5.9”) 000-11464-001 3 ft (3.70 ft Antenna 1127 mm (44.37”) 000-0127-51 Ethernet cable 1.8m (6ft) 000-11465-001 4 ft (4.70 ft Antenna 1431 mm (56.34”)
  • Page 80 Halo™- Nameplates IMPORTANT NOTE: FCC PART 80 Type Certification Approved Pending: IC Canada, CE, SoO, DoC and final compass safe distance...
  • Page 81 Halo™- FCC GRANT IMPORTANT NOTE: FCC PART 80 Type Certification is completed Pending: IC Canada, CE, SoO, DoC, and final compass safe distance...
  • Page 82 Halo™- System Builder Capture...
  • Page 83 Halo™- System Builder Capture...
  • Page 84 Halo™- Installation Manual- Wiring - RI-12 2 WIRE DC Power cable is custom for each installation and is not provided...
  • Page 85 Halo™- Options & Accessories HALO™ Pulse Compression Radar Mounting Options Hardware Mounting kits Radar Plate and Tower mounts • Scanstrut • Edson • Seaview...
  • Page 86 Halo™- Options & Accessories Individual Halo Hardware Mounting Kits 000-12515-001 HALO, ANTENNA MOUNTING KIT 000-12514-001 HALO, PEDESTAL MOUNTING KIT 000-12514-001 HALO, PEDESTAL MOUNTING KIT 072-0482-01 POLY BAG 4" X 6" AUTOBAG 051-3190-00 LBL WH POLYESTER 50x11mm BLANK 089-0485-00 BOLT, HEX, M12x35, 316 s/s 089-0486-00 BOLT, HEX, M12x50, 316 s/s 089-0487-00...
  • Page 87 151-10446-001 HALO SPARE,PED SEAL KIT 151-10447-001 HALO SPARE,ANT END CAP,IN+OUT 1SET 000-12514-001 HALO SPARE,PED MOUNTING KIT 000-12515-001 HALO SPARE,ANT MOUNT KIT 151-10450-001 HALO SPARE,WARRANTY + TAMPER STICKERS IMPORTANT NOTE: These -151 parts are used for SIMRAD radar servicing dealers ONLY.
  • Page 88 Halo™- SCANSTRUT® Mounts Radar Fit Model Description Image HALO-3/4/6 APT6003 150mm (6") Aluminium PowerTower® for all open array http://www.scanstrut.com/products/product-page.php?range_id=10002&type=Powerboats HALO-3/4 DPT-40-SO3 Dual PowerTower® for 40cm satcom + 4' open array radars http:// www.scanstrut.com/products/product-page.php?range_id=10003&type=Powerboats HALO-3/4 DPT-60-SO3 Dual PowerTower® for 60cm satcom + up to 4‘...
  • Page 89 Halo™- EDSON® Mounts This new Halo mounting plate Edson part number 68575. It fits: • 68110 6” Tower for open arrays • 68120 12” Tower for open arrays • 68250 Dual tower for open arrays and sat domes • 68350 Triple tower The 3’/4’...
  • Page 90 Halo™- EDSON® Mounts Radar Fit Model Description Image HALO-3/4/6 68110 with 150mm (6") Tower for plate 68575 all open array http://www.edsonmarine.com/marinestore/index.php?main_page=product_info&cPat h=87_322_323_327&products_id=1767 HALO-3/4/6 68120 with 300mm (12") Tower plate 68575 for all open array http://www.edsonmarine.com/marinestore/index.php?main_page=product_info&cPa th=87_322_323_327&products_id=1618 HALO-3/4 68250 with Dual Tower for open plate 68575 arrays and sat domes http://www.edsonmarine.com/marinestore/index.php?main_page=product_info&c...
  • Page 91 Halo™- EDSON® Mounts Radar Fit Model Description Image HALO-3/4/6 68950 Hardtop Mounting Plate http://www.edsonmarine.com/marinestore/index.php?main_page=product_info&cPath=87_322_323_382&products_id=1800 This is available from Edson direct.
  • Page 92 Halo™- Seaview® Mounts Dual Tower for open arrays and sat domes PMA-DM2-M2 with Simrad Halo PMA-57-M1 + ADA-R1 + ADA-HALO3 (shown with optional light bar) With accessories added These are all available from Seaview direct. Easy 3 step process to build a modular mount for Halo Radars.
  • Page 93 Halo™- Seaview® Mounts Step 1: Select a Mount for Halo 5” (127mm) tall aft leaning mount These are all available from Seaview direct.
  • Page 94 Halo™- Seaview® Mounts Step 2: Select a Top Plate for Halo Step 3: Select accessories – Light bars, etc. For all Halo mounts, go to http://seaviewglobal.com/system/attachments/Simrad_Catalog_ver1.pdf...
  • Page 95 Garmin closed dome radar. Mounting holes pick up these existing radar brand domes and our new Simrad HALO open array mount. All Halo holes are inside the plate with no drill holes required in the boat itself in the Halo mounting area. Very useful for OEMs in tight center console top channels.
  • Page 96 Release #1 Software Versions for MFD (NSS_evo2: V2.0-51.1.80 and NSO_evo2: V3.0-51.1.80 and up) and Halo (V5.1.0 and up) are posted on SIMRAD website. Sector Blanking will be functional end of May with MFD (NSS_evo2: V3.0-52.x.xx and NSO_evo2: V4.0-52.x.xx and up) and Halo (V5.1.x and up).
  • Page 97 Halo™- System Resets In very rare cases of a lockup, just Power the radar off and on. It is best to turn off all boat DC power and back ON again. Try that if a Radar ON/OFF does not work. This will fix any systems issue.
