Troubleshooting
10.1 Overview

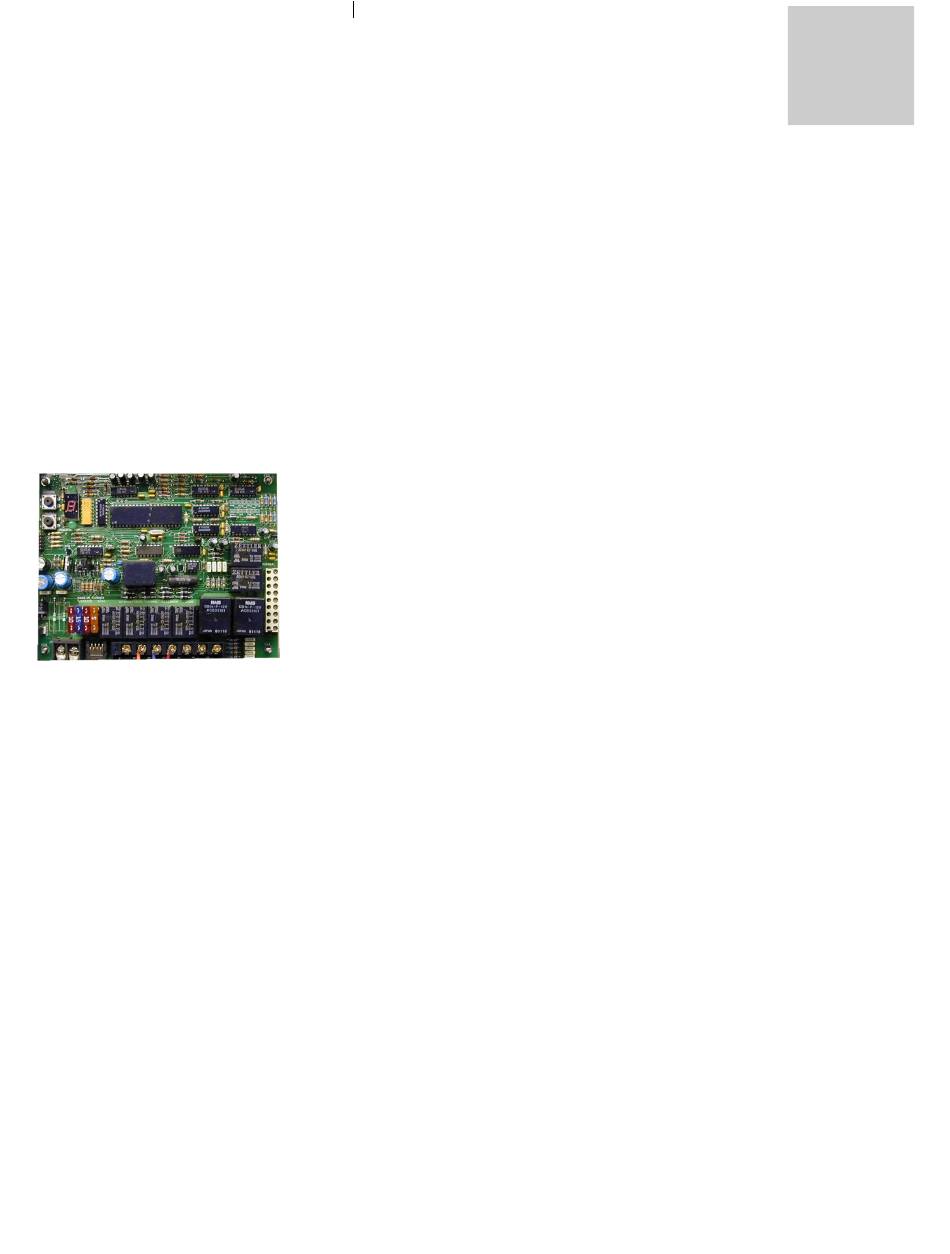

The
electronic
board
consists
of
a
flash
microcontroller
programmed to monitor the timing and safety functions of the
heater. Each time the board is energized by a call for heat, it will
check its own circuits for any problems. Should a problem exist,
the board will shut down.
You can easily monitor your Hurricane® Zephyr™ HW heater's
operation by checking the electronic control box. Any fault or
problem will be immediately picked up by the control board and an
LED diagnostic code indicator will light up to pinpoint the fault.
Once the fault has been corrected, it can be reset by switching the
service or remote switch OFF, then ON again. The diagnostic codes
are described below.
10.2 Power On (Green)
The POWER ON indicator is lit whenever the service switch on the
control box is ON and if the remote panel is switched ON, a small
red LED near the lower right-hand side of the digit on the remote
panel will also glow. If this light does not come on, check to see if
the service switch is ON.
If the power on light does NOT come on:
·
Check for a blown fuse.
10.3 Burner On
No diagnostic code will be displayed on the main board or the
remote panel when the burner is ON and operating normally. A
small red LED will glow near the lower right-hand side of the digit
on the remote panel, indicating it is ON.
