Section 2, Mounting the Heater Unit
2.5
Remote Operating Touch Screen
Panel Mounting Procedure
The Remote Operating Panel is mounted inside the Yacht, in an
easy to access location. An opening for the remote panel must be
cut in the wall or mounting panel. The Remote Operating Panel
will be screwed in place using the 4 mounting holes.

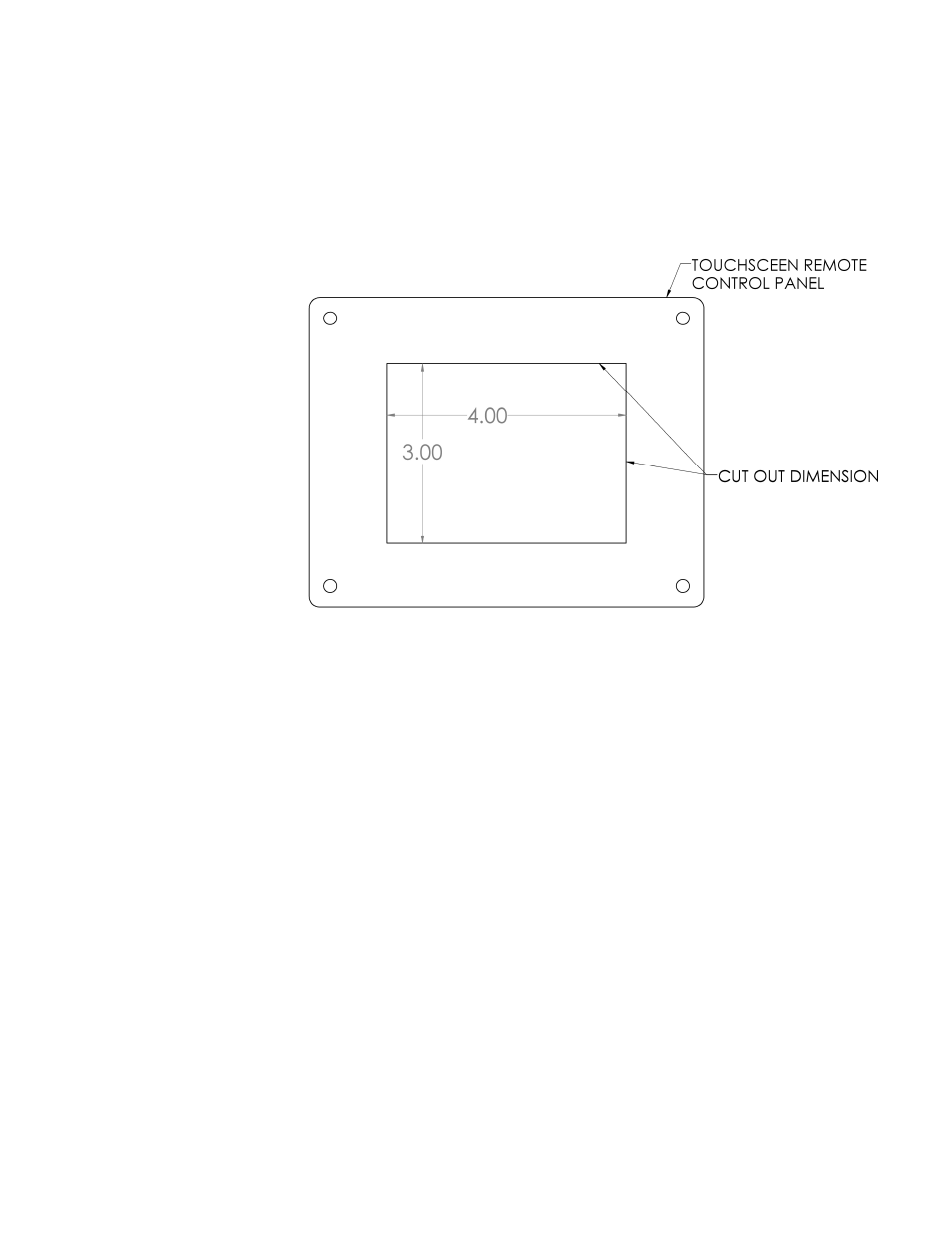

Figure 2-3: Touchscreen Operating Panel Mounting
International Thermal Research
2-5
