SportsArt Fitness P721 Owner's Manual

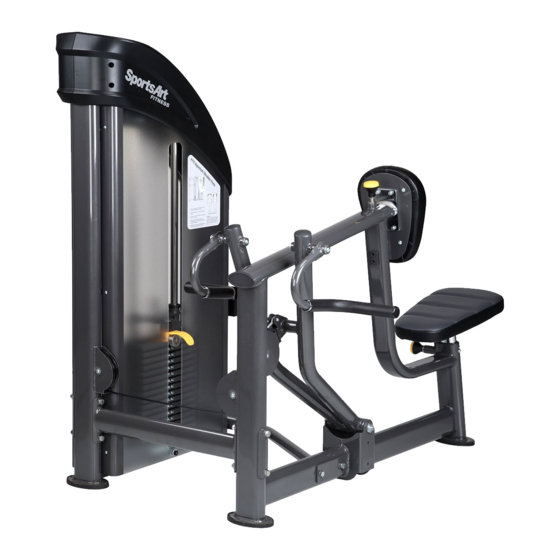

Dependent mid row machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P721 OWNER'S MANUAL CONTENTS
1. INTRODUCTION ................................................................................ 2
2. SAFETY PRECAUTIONS ..................................................................
3. LIST OF PARTS .................................................................................
4. ASSEMBLE THE PRODUCT .............................................................
STEP 2 Weight Stack Installation ......................................................... 14
STEP 3 Handles Installation ................................................................. 18
STEP 4 Cable Installation ..................................................................... 20
STEP 5 Chest Cushion Installation ........................................................ 22
STEP 6 Seat Bottom Installation ............................................................ 23
STEP 7 Apply the Weight Stack Sticker ................................................. 24
STEP 8 Front Cover and Rear Cover Installation .................................. 25
STEP 9 Top Covers Installation ............................................................. 26
STEP 10 Storage Tray Installation ......................................................... 27
STEP 11 Cable Adjustment .................................................................... 28
STEP 12 Stack Fork Inspections ........................................................... 29
5. OPERATION INSTRUCTION ............................................................ 30
6. MAINTENANCE ................................................................................ 31
MAINTENANCE Schedule .................................................................... 32
MAINTENANCE Task List .................................................................... 33
MAINTENANCE One-Year Maintenance Log ....................................... 34
7. CONSIGNES DE SÉCURITÉ IMPORTANTES ................................. 35
3
4
9
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P721 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SportsArt Fitness P721

Summary of Contents for SportsArt Fitness P721

  • Page 1: Table Of Contents

    P721 OWNER’S MANUAL CONTENTS 1. INTRODUCTION ................2 2. SAFETY PRECAUTIONS ..............3. LIST OF PARTS ................. 4. ASSEMBLE THE PRODUCT ............. STEP 1 Cover Support Plate and the Connector Installation ....STEP 2 Weight Stack Installation ............14 STEP 3 Handles Installation ..............18 STEP 4 Cable Installation ..............

  • Page 2: Introduction

    1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the P721 Dependent Mid Row machine. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual.

  • Page 3: Safety Precautions

    2. SAfETy PRECAUTIONS This product was designed and built for optimum safety. However certain precau- tions apply during the use of this product. Please note the following safety precau- tions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual.

  • Page 4: List Of Parts

    3. LIST Of PARTS Box A...
  • Page 5 Box B Box C...
  • Page 6 Box A - Main frame Components No. Name Qty. No. Name Qty. Weight stack top right Stack rod cover Weight stack top left Cover bracket cover A3 Main frame Cover support plate A A4 Cover support plate B-2 Rear cover A5 Cover support plate B-1 Front cover A6 Storage tray...
  • Page 7 Components in the Hardware Kit Name Qty. Specification Notes Screw socket SGN-07 Mushroom top inner hex screw M6*P1.0*L12 Mushroom top Phillips screw M5*L15 Mushroom top Phillips screw M5*0.8*L8 Ronund head Phillips screw M6*P1.0*L12 Round head inner hex screw M6*P1.0*20 Bushing D21.5*10.5 L-shaped Allen wrench (M4)
  • Page 8 Components on the Product Name Specification Notes Round head inner hex screw M8*P1.25*L18 Spring washer M8*t2.0 Flat washer D17*d8*t1.5 Mushroom top inner hex screw M8*P1.25*L15 Flat washer D26*d8.5*t2 Mushroom top inner hex screw M6*P1.0*L12 Spring washer Flat washer D20*d6.3*t1.5 Axle D15*L26 Axle D10*L23...

  • Page 9: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.
  • Page 10 *Loosen and remove the screws (30) (31) (32) and the connecting plates from the components (A26) (A27) as shown.
  • Page 11 Brackets and the cover support plates installation (a). Insert the screw sockets (10) into place in the main frame (A3) as shown, and then use the screws (11) (12) to secure the brackets (A16) (A17) in place. (Note: The bracket (A16) must be secured to the top of maim frame as shown.)
  • Page 12 (b). Use the screws (13) to secure the cover support plates (A10) to the straight frame of the main frame (A3) and then secure the cover support plates (A4) (A5) to the both side of the curved frame as shown. (Note: The cover support plates must be secured outside of the bracket (A16) (A17).)
  • Page 13 Connector and the seat frame installation (a). Use the connector A (A26) to connect the main frame (A3) to the seat frame (A23) and then use the screws (30) to loosely secure these pieces. Do not tighten screws yet. (b). Use the connector B (A27) to connect the main frame (A3) to the seat frame (A23) and then use the screws (31) (32) to secure these pieces.

  • Page 14: Step 2 Weight Stack Installation

    STEP 2 Weight Stack Installation...
  • Page 15 (a). Hold the upper stack carriage set (33), and then cut the zip tie. Gently lower the upper stack carriage set (33) into place as shown. (b). Remove the screws (34). Set the guide rod (35) downward into place as shown.
  • Page 16 (d). Loosen and remove the screws (36) from the stack fork (A7) and insert the weight stack rod (A8) into the central mounting position of the upper stack carriage set (33). Use the screws (36) to secure the stack fork (A7) into place of the upper stack carriage set (33) as shown.
  • Page 17 (f). Tilt the guide rods (35) back into place and then lift them up to their mounting position, and then secure the assembly with the screws (34).

  • Page 18: Step 3 Handles Installation

    STEP 3 Handles Installation...
  • Page 19 (a). Loosen and remove the screws (37) from the handles (A24) (A25) as shown. (b). Place the axles of the handles (A24) (A25) onto the main frame (A23) and then scecure with the screws (37) as shown.

  • Page 20: Step 4 Cable Installation

    STEP 4 Cable Installation (a). Insert the cable nut as indicated by the arrows onto the weight stack rod (A8) at least 15-20mm deep as shown. (b). Loosen and remove the screws (38), the axle (39) and the pulley from the seat frame (A23) as shown.
  • Page 21 (c). Loosen the cable and thread the cable as indicated by the arrows and through under the guide wheel as shown and secure the axle (39). Do not tighten the screws yet. And then secure the pulley back into place with the screws (38).

  • Page 22: Step 5 Chest Cushion Installation

    STEP 5 Chest Cushion Installation (a). Loosen and remove the screws (40) (41) from the chest cushion (A22) and the seat frame (A23) as shown. (b). Use the screws (41) to secure the chest plate to the extension tube of the seat frame (A23) as shown.

  • Page 23: Step 6 Seat Bottom Installation

    STEP 6 Seat Bottom Installation (a). Loosen and remove the screw (40) (41) from the seat bottom (A21) and the seat frame (A23) as shown. (b). Use the screws (41) to secure the seat plate to the extension tube of the seat frame (A23) as shown.

  • Page 24: Step 7 Apply The Weight Stack Sticker

    STEP 7 Apply the Weight Stack Sticker Note: Before applying weight plate stickers, please wipe the area clean, and clean your hands before proceeding to the next step. (a). Align and tape the cardboard to the upper left corner of the weight plate (A30).

  • Page 25: Step 8 Front Cover And Rear Cover Installation

    STEP 8 front Cover and Rear Cover Installation (a). Use the screws (11) to secure the cover bracket (A9) in place on the main frame (A3) as shown. (b). Slide the rear cover (A14) and the front cover (A15) from the top down into the cover support plates’...

  • Page 26: Step 9 Top Covers Installation

    STEP 9 Top Covers Installation *Secure the weight stack top right covers (A1) and the top left cover (A2) with the screws (14). (Note: During assembling, place the bracket of the top covers inside of the cover support plates (A4) (A5) as shown.)

  • Page 27: Step 10 Storage Tray Installation

    STEP 10 Storage Tray Installation (a). Loosen and remove the screws (42) (43) from the storage tray (A6) and the main frame. (b). Hold the storage tray (A6) in place and secure it with the bracket and the screws (42) (43) as shown.

  • Page 28: Step 11 Cable Adjustment

    STEP 11 Cable Adjustment * Insert the stack fork into the gap under the lowest weight plate, and then adjust the large nut at area C. Adjust until the upper stack carriage set moves slightly. To adjust the cable, first insert the (Z) rod and loosen the (Y) nut, and then adjust the (X) nut.

  • Page 29: Step 12 Stack Fork Inspections

    STEP 12 Stack fork Inspections * Please follow operating instructions on the product sticker to test operation and confirm that the equipment is working properly. * Insert the stack fork to make sure that every weight plate can be engaged easily.

  • Page 30: Operation Instruction

    5. OPERATION INSTRUCTION * Seat bottom height positioning can be adjusted. Simply, put out the related knob, make the adjustment, and release the knob to secure the desired position. * To move the chest cushion position toward yourself, simply pull it. To move the chest cushion away from yourself, pull the knob and press the chest cushion.

  • Page 31: Maintenance

    6. MAINTENANCE This section covers maintenance topics and includes a maintenance schedule, task list, and log. Maintenance Machine Maintenance 1. Apply lubricant to the guide rods every week. Procedure: (a). Put some lubricant on a clean, lint-free cloth. Rub the lubricated cloth on the guide rods.

  • Page 32: Maintenance Schedule

    Maintenance Schedule (P721) Maintenance Schedule Area Day Week Month Quarter Year Notes 1 Exterior Clean. Inspect for looseness and 2 Screws secure if necessary. Check for proper equipment 3 Test operation. Seat bottom/ Use damped cloth to clean. Chest cushion Check for damage or wear.

  • Page 33: Maintenance Task List

    Maintenance Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.

  • Page 34: Maintenance One-Year Maintenance Log

    Maintenance One-year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...

  • Page 35: Consignes De Sécurité Importantes

    7. CONSIGNES DE SÉCURITÉ IMPORTANTES Le produit SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous utilisez votre produit. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
