Summary of Contents for Janam XG3

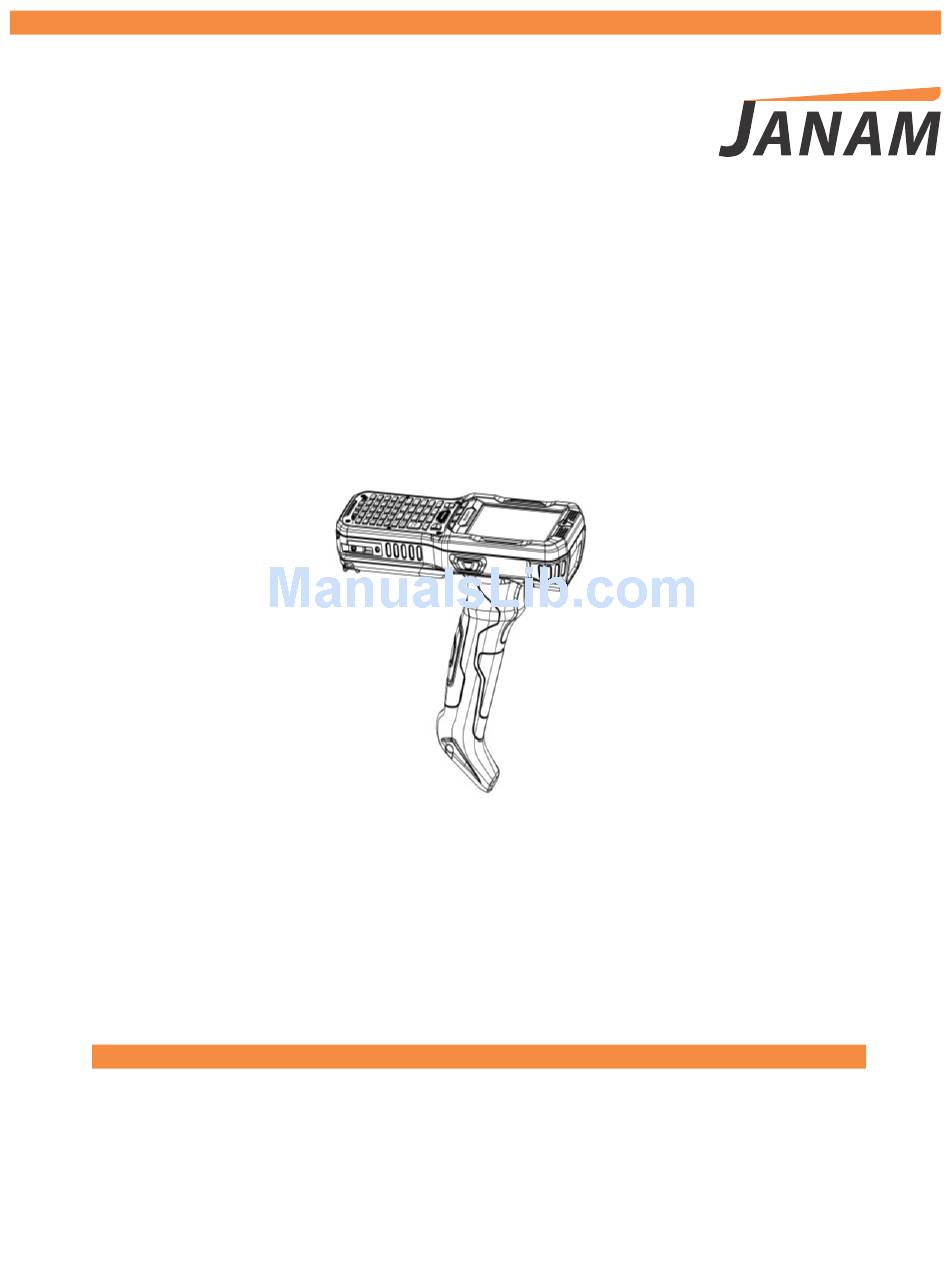

- Page 1 User Manual Technology at Work ® © 2015 Janam Technologies LLC. All rights reserved.
-
Page 2: Table Of Contents
User Manual Contents Introduction CH–PG Resetting the XG3 Device CH–PG Introduction 1–1 Reset (reboot) the XG3 Device Key Features 4–1 Hardware Overview 1–2 Soft Reset (Warm Boot) Hard Reset (Cold Boot) Master Reset (Clean Boot) Getting Started CH–PG Recommended Host Computer Data Entry—Alpha, Numeric... - Page 3 User Manual Bluetooth CH–PG Overview 9–1 Enabling the Bluetooth Radio 9–2 Pairing Bluetooth Devices 9–2 Regulatory CH–PG XG3 Regulatory Information 10-1 Trademarks 10–1 Symbols 10-1 Power Supply 10-2 Laser Safety 10-2 FCC/EU RF Exposure 10-3 CB Scheme 10-3 Canadian Compliance...
-
Page 4: Introduction

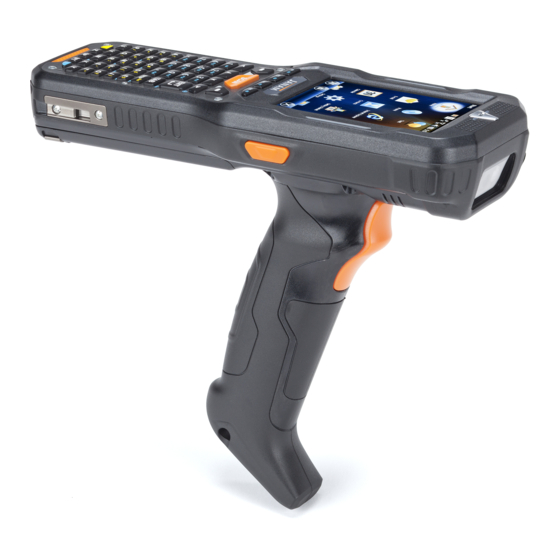

The XG3 also delivers exceptional battery life with a standard 5200mAh hot-swappable Li-ion battery. Janam’s XG3 rugged mobile computer is sealed to IP65 standards and survives repeated 6’ drops to concrete. It’s technology at work. -
Page 5: Hardware Overview
15. DC Jack 5. Notification LED 16. Connector 6. Scan Window 17. Blue Function Key 7. Left Scan LED 18. Enter Key 8. Right Scan LED 19. Back Space Key 9. Left Trigger 20. Right Bottom Scan LED 10. Scan Trigger 21. Right Trigger 11. Left Bottom Scan LED Janam Technologies LLC... - Page 6 2. Battery Lock Switch 8. microSD Card Cover/Slot 3. Stylus Slot 9. Handstrap Bar 4. Stylus 10. Scan Trigger 5. Lanyard Connector 11. Handstrap Hole 6. Scan Window Janam Technologies LLC...
-
Page 7: Getting Started Ch-Pg
― One available serial or USB port Janam XG3 SDK The Janam XG3 Software Development Kit enables programmers to develop applications for Janam XG Series rugged mobile computers running the Microsoft Windows Embedded Handheld operating system. It contains details and instructions for developing applications that access the Janam XG3 libraries, including scanning, imaging and hardware utilities. -
Page 8: Install The Battery
User Manual Install the Battery The XG3 mobile computer is shipped with the battery packaged separate from the unit. Follow the steps below to install the battery. 1. Remove the battery compartment door by moving the battery door’s metal locks to the up position. -
Page 9: Charging Time
Charging Time The 5200mAh Li-ion battery pack requires six hours to charge to full capacity. WARNING: Use only Janam-approved peripherals, power cables, and power adapters. Unauthorized peripherals, cables, or power adapters may cause batteries to explode or damage your device. -
Page 10: Checking Battery Power
You can also check battery power by tapping Start > Settings > System > Power. LED Indicators LED Color Meaning Lights when main battery is charging. Blinks, when the battery is very low (<10%), Lights when the battery is low (<20%), Janam Technologies LLC 2―4... -
Page 11: Guidelines For Battery Pack Use And Disposal
Use only a Janam approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, explode or ignite. - Page 12 Battery pack usage by children should be supervised. Collect and recycle waste batteries separately from the device and comply with European Directive 2006/66/EC, 2011/65/EU, 2012/19/EU and subsequent modifications, US and China regulatory and others laws and regulations about environment. Janam Technologies LLC 2―6...
-
Page 13: Turn The Xg3 Device On
With a fully charged battery installed, press and release the Power button on the left side above the speaker jack. Pressing the power button again will suspend the XG3 device’s operation. Holding the power button for an extended time will invoke the boot option screen. -
Page 14: Screen Alignment
Getting Started User Manual Screen Alignment Initial startup of the XG3 device and/or after a clean boot, the device will launch the on-screen align screen instructions. Aligning the screen calibrates the device’s internal circuitry with its touch-sensitive screen, optimizing stylus-to-screen detection. - Page 15 ― Set ring tone ― Transfer music ― Online Help & how-to ― Add/remove Getting Started Once these XG3 device options are set as desired, the Add/remove Getting Started function allows the removal of the Getting Started tab from the home screen menu.
-
Page 16: Fundamental Navigation
Always use the supplied stylus for tapping or making strokes on the screen. DO NOT use a pen, pencil or any other object on the touch screen. Connectivity Signal Audio Battery Key Status Icons and Controls Notifications Time Home Stop Toggle, Windows Embedded Screen Handheld Desktop /Home Lock Janam Technologies LLC 2―10... -
Page 17: Indicator Icons
Access the Wireless Manager Open the Scanner option menu Indicates the Keypad value Shows phone signal mode Shows the volume Indicates the Battery Control Panel (CPL) Indicates Clock & Alarm CPL Zoom in/out Access the Bluetooth radio Janam Technologies LLC 2―11... -
Page 18: Battery Charging And Power Alert Info
Indicates WAN (Phone) connection mode Indicates Sound connection mode Indicates LAN / Bluetooth mode Indicates Keypad mode XG3 Device Battery Charging and Power Alert Information Battery Charging and Power Alert Information Question Battery / Power Supply Alert Threshold / Charge Time Main Battery: “Main Battery... -
Page 19: Setting Up The Xg3 Device Ch-Pg
Locating Key Controls and Components XG3 Connector The XG3 I/O connector powers the terminal, charges the main battery, and facilitates communication. This connector supports High speed USB 2.0 communication (up to 480 Mbps). Through this connector, you can communicate with a host workstation via Microsoft ActiveSync or Windows Mobile Device Center. -
Page 20: Keyboard-Controlled Screen Navigation
Setting Up the XG3 Device User Manual The I/O connector supports the following signals: Pin Description Direction DC IN +5V DC IN +5V TXD (RS-232 ) RTS (RS-232 ) USB Host +5V Enable USB Host D+ IN/OUT USB Host D-... -
Page 21: Microsd Removable Memory
IMPORTANT NOTE! To avoid possible damage to microSD cards or the XG3 device, ESD (electrostatic discharge) precautions are recommended when installing or removing microSD cards. At a minimum before handling, discharge any personal static electric buildup to a point of discharge other than the device. -
Page 22: Lcd Screen Options And Calibration
Always use the supplied stylus for tapping or making strokes on screen. DO NOT use a pen, pencil or any other object on the touch screen. The XG3 device provides a utility that enables users to customize LCD screen orientation and to recalibrate the screen’s tapping function accuracy. -
Page 23: Setting Basic User Preferences
User Manual Setting Basic User Preferences Janam XG3 devices can be customized in many ways to suit task requirements, security and/or individual user preferences. The following is an overview of a selection of key XG3 device settings with instructions on how to make changes. The general navigations and actions used to affect these changes are instructive to other similarly controlled settings. -
Page 24: Device Password
Setting Up the XG3 Device User Manual Key XG3 Device Option Settings (continued) Note: Picture backgrounds can affect the readability of text within some applications. Tip: Tapping the Getting Started icon on the Windows Embedded Handheld Start screen is an equally effective means of navigating to the Getting Started menu. -
Page 25: Screen/Keyboard Lock
Setting Up the XG3 Device User Manual Key XG3 Device Option Settings—Device Password (continued) 4. Tap the down arrow in the Password type box. 5. From the pull-down menu, select the type of password you would like to use –... -
Page 26: Regional Settings
(continued) Regional Settings The style in which numbers, currency, dates and times are displayed is controlled by Regional Settings. XG3 devices are shipped with regional, language and input settings pre-set to English (United States). To change Regional settings: 1. From the Windows Embedded Handheld desktop Start screen; Tap Settings (icon) >... -
Page 27: Owner Information
Setting Up the XG3 Device User Manual Key XG3 Device Option Settings (continued) Owner Information Entering owner information: 1. From the Windows Embedded Handheld Start menu, tap Settings > Personal folder > Owner Information. 2. Select the Identification tab and enter Owner Information. -
Page 28: Screen Orientation
2. Select the preferred screen orientation and tap OK. Landscape Screen Example 3. To auto rotate the screen orientation using the XG3 Accelerometer sensor go to Start > Settings > System > Sensor (Icon) > Accelerometer (tab). Select the check box for Auto Display Orientation. -
Page 29: Changing The Device Name
User Manual Key XG3 Device Option Settings (continued) Device Name The XG3 device name (which may already be assigned) is used to identify the device in the following situations: ― Synchronizing with a PC ― Connecting to a network ― Restoring information from a backup Assigning or changing the device name and/or description: 1. - Page 30 Z, numbers from 0 to 9 and cannot contain spaces. Use the underscore character to separate words. IMPORTANT NOTE! To synchronize multiple XG3 devices with the same PC, each device must have a unique name. Janam Technologies LLC 3―12...
- Page 31 Setting Up the XG3 Device User Manual Key XG3 Device Option Settings (continued) Front Panel Layout To adjust device volume: 1. Tap the speaker in the title bar then tap the speaker in the horizontal scroll bar. Select speaker ON, OFF or set to Vibrate. Use the slider gauge to raise and lower the volume.
-
Page 32: Sounds And Notifications
Setting Up the XG3 Device User Manual Key XG3 Device Option Settings (continued) Additional Sounds and Notifications Additional sound-related settings are available, making it possible to adjust select device functions to suit the user’s preference. 1. Tap Settings > Sounds &... -
Page 33: Battery Power
Power Management Conserving Battery Power XG3 devices feature multiple power conservation options, some of which employ timers that can be set to strike a balance between user preference and optimal battery life. On battery power timers control the selected action only when the device is being operated on battery power. On external power timers control the selected action only when the device is being used with an external power supply. - Page 34 Setting Up the XG3 Device User Manual Battery Power- Conserving Battery Power (continued) Screen Off Function To adjust Screen Off function (device suspend mode): 1. Tap Settings, system on the Windows Embedded Handheld Start screen. 2. Tap Power on the Windows Embedded Handheld Settings desktop.
- Page 35 Setting Up the XG3 Device User Manual Battery Power- Conserving Battery Power (continued) Backlight Off Delay Function To adjust backlight off delay function: 1. Tap Settings (icon) on the Windows Embedded Handheld Start screen. 2. Tap System (folder) on the Windows Embedded Handheld Settings desktop.
-
Page 36: Keylight Enable And Duration Function
Setting Up the XG3 Device User Manual Keylight Enable and Duration Function To adjust keylight duration function: 1. Tap Settings (icon) on the Windows Embedded Handheld Start screen. 2. Tap System > Backlight (tab)> Keypad backlight 3. Enable the keylight function by selecting the check box. -
Page 37: Opening Applications
Communication Ports The table below identifies the XG3 Comm Ports that are currently allocated. When selecting a Virtual Comm Port, the Comm Ports below will not be available for use if the XG3 is configured with that function. Will be occupied when the Bluetooth... -
Page 38: Program Buttons
Setting Up the XG3 Device User Manual Program Buttons Introduction and setup Program Buttons allow the custom assignment of programs or actions to the defined keys. In the example shown the Left Scan button is selected to Run an Application ... -
Page 39: Reset (Reboot) The Xg3 Device
Resetting the XG3 Device User Manual Resetting the XG3 Device Resetting In addition to On (Resume) and Off (Suspend) functions, XG3 devices provide a range of device reset (boot) procedures whose functions may be called upon when required. IMPORTANT NOTE! ... -
Page 40: Hard Reset (Cold Boot)
To master reset (or clean boot): A master reset or clean boot returns the XG3 to factory settings, removing ALL applications and data stored on the device. Any files or programs stored in the Application folder or a micro SD card will remain. -
Page 41: Entering Information
XG3 devices are capable of running a variety of applications, many of which rely upon or require the input of alpha, numeric or special character data. In addition to the alpha/numeric physical keypad, the XG3 devices feature the ability to key in data with the supplied stylus on an integrated On-Screen Keyboard. -
Page 42: Changing On-Screen Keyboards
Numeric Keyboard International Keyboard Custom Key Programming A selection of XG3 device keypad function keys can be reprogrammed as shortcuts to an assortment of actions. To reprogram function keys: 1 Tap Settings from the Windows Embedded Handheld desktop. 2. Tap Personal (folder) > Buttons (icon). -
Page 43: Enabling Cleartype Text
Data Entry―Alpha, Numeric and Importing User Manual Entering Information on the XG3 Series Device—Options Enabling ClearType Text Clear Type softens the edges of the screen fonts for many applications. To use ClearType for screen text: 1. Tap the Settings (icon) from the Windows Embedded Handheld Start menu >... -
Page 44: Voice Notes
4. Tap the red recording dot to begin voice notes capture. 5. Tap The square stop icon to stop voice notes capture. 6. Tap the speaker icon in the main screen area to select a voice note for playback. 5―4 Janam Technologies LLC... -
Page 45: Data Capture-Barcode Scanning Ch-Pg Introduction
Therefore, some of the barcode functions described in this chapter may not apply to the XG3 Series device(s) you are using. For that reason, and depending on the configuration of your XG3 Series device(s), some information in this chapter may not apply. -
Page 46: Laser-Based Configurations
IMPORTANT NOTE! The following Barcode Scanning Demonstration and Setup material provides XG3 users with fundamental barcode scanning information to familiarize users with general scan functions. However, your devices’ barcode scanning functions will likely be governed and/or managed by a third-party application not covered in this manual. -
Page 47: Imager-Based Configurations
B. 2D Imager-based Configurations Overview The XG3 with an N560X 2D imager scanner will instantly read all popular 1D and 2D bar codes and supports omni-directional aiming and decoding. The imager scanner can also capture digital images, such as signatures and pictures. -
Page 48: Activating The Imager Scanner
Activating the Imager Scanner When a scanning application is open, press the Scan key to activate the image engine. Using Demos The XG3 comes preloaded with software applications that demonstrate the advanced features of the terminal. Image Demo and Scan Demo To access these demos, tap Start >... -
Page 49: Synchronizing The Xg3 Device Ch-Pg
Connect your XG3 device to your PC and power the XG3 on. Synchronization requires the following: ▪ A direct connection between the XG3 device and the host PC, using a USB sync cable (CAB-J-003U) On your PC, select Start > Programs > Windows Mobile Device Center. -
Page 50: Partnership (Connection) Settings
Synchronizing the XG3 User Manual Partnership (Connection) Settings To change partnership (connection) settings: Open the Windows Mobile Device Center control panel. Move the mouse icon over the Mobile Device Settings option, revealing the sub-menu of options. Click Connection Settings. Apply your preferences and click OK. -
Page 51: Wireless Local Area Network
WLAN (802.11 a/b/g/n Radio) Introduction The XG3 has a 2.4 GHz and 5GHz 802.11 a/b/g/n WLAN (Wireless Local Area Network) radio. The radio is interoperable with other 802.11a/b/g/n, Wi-Fi compliant products including wireless controllers, access points (APs), workstations via PC card adapters, and other wireless portable devices. - Page 52 Wireless Local Area Network (WLAN) User Manual 6. Configuration is complete and accurate when the “Status” changes to “COMPLETED”. The “Status” panel provides usefull information about your wireless connection including the channel, Band and signal strength (RSSI). Janam Technologies LLC ―2...
- Page 53 The “Settings” tab allows access to higher-level radio controls. The default values have been derived and set to accommodate the majority of environmental conditions and should not be changed without a good working knowledge of the subject matter. Janam Technologies LLC ―3...
-
Page 54: Overview
In order to conserve battery capacity, the Bluetooth, module is off by default. ☞ NOTE: Suspending the terminal powers off the Bluetooth radio and drops the Bluetooth connection. When the terminal resumes, it takes approximately 10 seconds for the Bluetooth radio driver to re-initialize the radio. Janam Technologies LLC 9―1... -
Page 55: Enabling The Bluetooth Radio
3. Tap “Mode” to enable the radio 4. Tap “Add new device”, the Bluetooth Manager will search for discoverable devices. Pairing Bluetooth Devices 1. Tap on the desired device in the Bluetooth Manager. 2. Tap the Next Button on the bottom Janam Technologies LLC 9―2... - Page 56 4. Enter the same passkey on the other device when prompted. 5. Pairing is complete. 6. The paired device will show as disconnected while viewing the Bluetooth Manager 7. For devices like serial printers select “Com Ports” and assign a “New Outgoing Port” Janam Technologies LLC 9―3...
-
Page 57: Trademarks
Thank you for purchasing the Janam Technologies XG3 rugged mobile computer. This manual generally provides you with the safety information and basic features and operations of the XG3 device. Please read all safety precautions and this manual carefully before using your device and peripherals to ensure safe and proper use. -
Page 58: Power Supply
- Use only the components supplied by the manufacturer for the specific XG3 being used. - Do not attempt to disassemble the XG3 terminal, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty. When replacing the battery pack or at the end of the operative life of the XG3 terminal, disposal must be performed in compliance with the laws in force in your country. -
Page 59: Fcc/Eu Rf Exposure
Pursuant to part 15 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Janam could void your authority to operate the XG3 terminal. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 60: Canadian Compliance
2.9. Radio Compliance XG3 terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC). This device is marked in accordance with the Class II product requirements specified in the R&TTE Directive, 1999/5/EC. -
Page 61: Weee Compliance
Directive, it will avoid potentially negative consequences to the environment and human health which otherwise could be caused by incorrect disposal. For more detailed information about disposal, reuse, and recycle system, contact your local or regional waste administration. Janam Technologies LLC ―5...
