Summary of Contents for King gates STAR OPEN

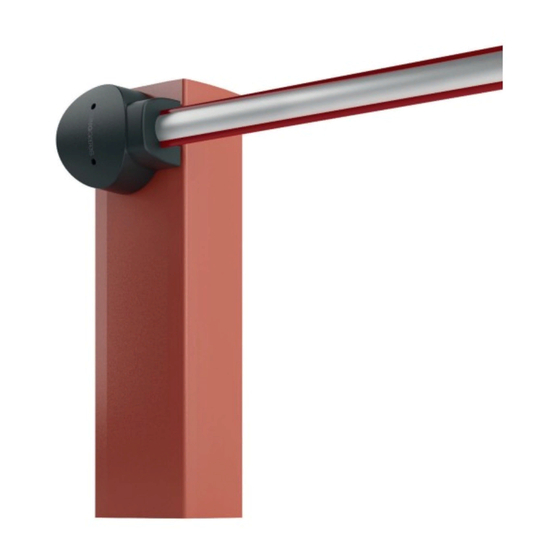

- Page 1 STAR OPEN EN Automatic boom gate - electronic installation Installation and use instructions and warnings Made in Italy...
- Page 2 QUICK GUIDE: 07. See if rotation direction is right, repeating the procedure de- scribed above. 08. Temporarily adjust the STOP_AMPERE and WORKING FORCE trimmer to the maximum of the travel, PAUSE TIME to CAUTION! - Do not install the boom gate without ha- minimum and SLOWING DOWN FORCE to halfway travel.
- Page 3 Description of the Contents product Important notice 1. Description of the product The electronic card is suitable for controlling OPEN model road boom 2. Installation gates with 24 V DC motors. 3. Electrical connections This is an entirely new design where the actuator has a limit switch 3.1 - Electrical hookup with a speed control system that makes it possible to reach the travel 3.2 - Operational tests...
- Page 4 Electrical PHOTOCELL2 and STOP, are always on while those on the com- mand inputs, STEP-BY-STEP, OPEN-TIMER and CLOSE, are usually connections off. Since the current absorbed by a DC motor is in proportion to the force it is subject to, developing an obstacle detection system is very easy.
- Page 5 potential; no connections are allowed like those defined as “PNP”, FORCE so that the manoeuvre is carried out at the speed and with “NPN”, “Open Collector”, etc., etc. the force required and that the slowing down phase is such that the bar reaches the stopping points as “gently”...
- Page 6 Switches 1-2 Off Off = “Manual” movement (Man Present) Switches 7 = Recloses straight after Photocell (only if on Automatic) On Off = “Semiautomatic” movement With this function the bar can be kept open only for the length of time Off On = “Automatic”...
- Page 7 The light will stay on for the entire opening manoeuvre and for the Whether in the opening or closing phase, if STOP triggers it will cause subsequent pause time; during the closing manoeuvre both the movement to stop immediately. green and red lights will be activated (the result being yellow) to indi- In an opening manoeuvre, triggering of the PHOTOCELL has no ef- cate there is no longer any transit priority (see table).
- Page 8 2006/42/EC (MD) annex II, part B Declaration number: K106/OPEN Rev.: 0. Language: EN Name of manufacturer: KING GATES S.r.l. Address: Via Malignani, 42 - 33077 - Sacile (PN) Italy Type: Gearmotor with incorporated control unit Model: OPEN 4, OPEN 6...
