Digisol DG-GS1528HP User Manual

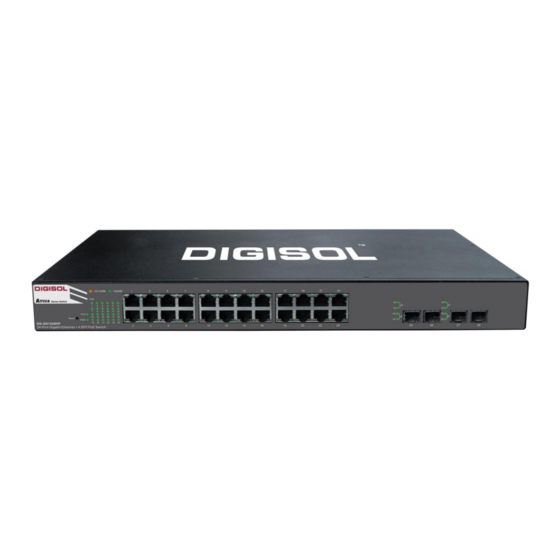

24 port gigabit ethernet poe+ smart managed switch with 4 sfp ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

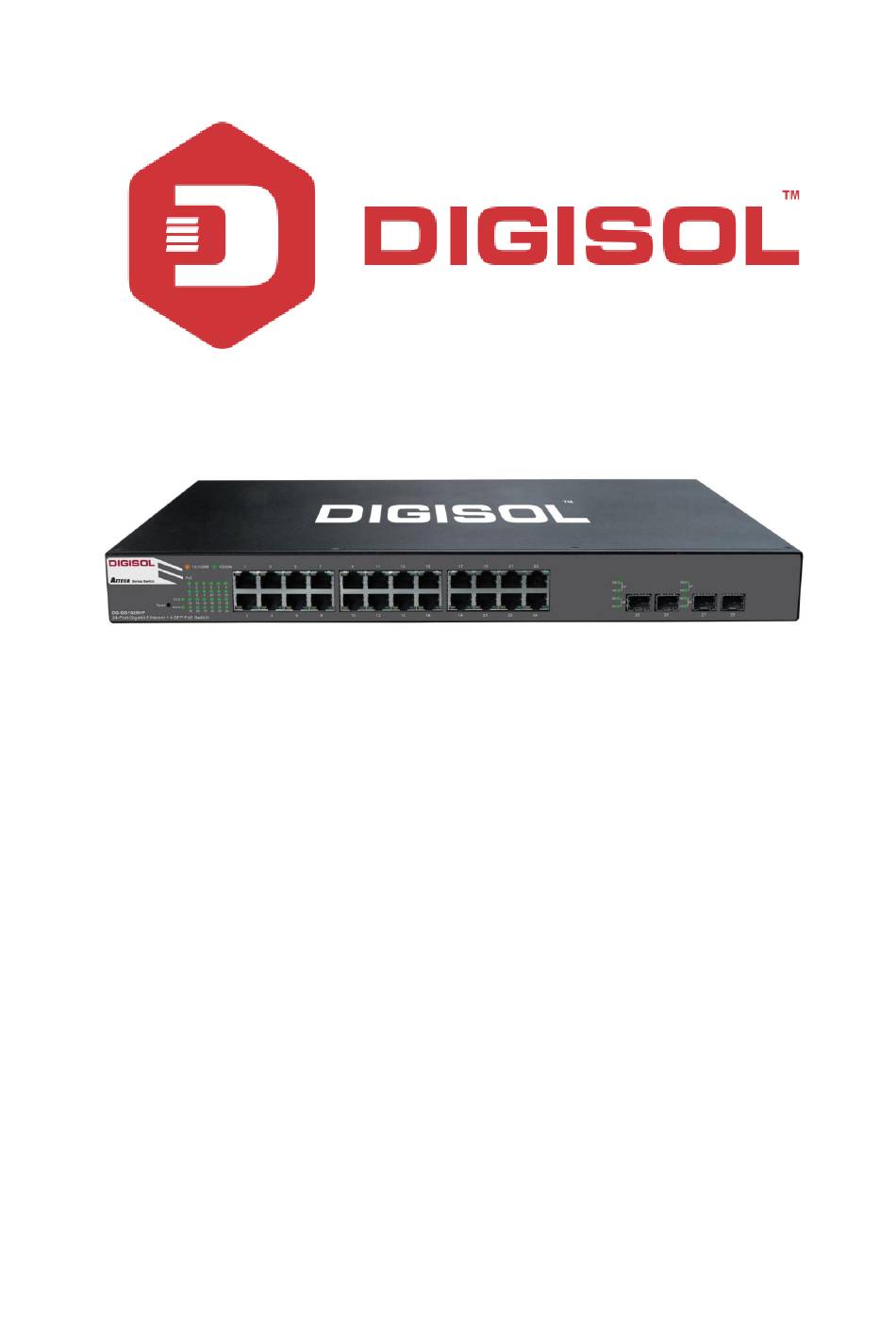

DG-GS1528HP
24 Port Gigabit Ethernet PoE+ Smart Managed Switch with 4 SFP
Ports.
User Manual
V2.0
2018-08-07
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-GS1528HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-GS1528HP

Summary of Contents for Digisol DG-GS1528HP

  • Page 1 DG-GS1528HP 24 Port Gigabit Ethernet PoE+ Smart Managed Switch with 4 SFP Ports. User Manual V2.0 2018-08-07 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. TRADEMARK DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.

  • Page 3: Table Of Contents

    DG-GS1528HP User Manual Table of Contents 1. Introduction ......................... 11 1.1. Overview ........................ 11 1.2. Package contents..................... 11 1.3. Features ........................11 1.4. Product Components ....................12 1.4.1. Ports ........................ 12 1.4.2. LED Indicators ....................13 2. Installation ..........................15 2.1.
  • Page 4 DG-GS1528HP User Manual 4.1.2. Port ......................... 31 4.1.2.1. Statistics ....................31 4.1.2.2. Error Disabled ..................34 4.1.2.3. Traffic Statistics ................... 36 4.1.3. Link Aggregation ................... 37 4.1.4. MAC Address Table ..................38 4.2. Network ........................39 4.2.1. IP Address ...................... 39 4.2.2.
  • Page 5 DG-GS1528HP User Manual 4.5.1.1. Create VLAN ..................61 4.5.1.2. VLAN Configuration ................63 4.5.1.3. Membership ..................64 4.5.1.4. Port Setting ..................66 4.5.2. Voice VLAN ....................68 4.5.2.1. Property ....................68 4.5.2.2. Voice OUI .................... 70 4.5.3. MAC VLAN ....................72 4.5.3.1.
  • Page 6 DG-GS1528HP User Manual 4.8.1.2. Port Setting ..................91 4.8.1.3. Packet View ..................94 4.8.1.4. Local Information ................97 4.8.1.5. Neighbor ....................99 4.8.5.6. Statistics ..................... 100 4.9. Multicast ....................... 101 4.9.1. General ......................101 4.9.1.1. Property ....................101 4.9.1.2. Group Address ................... 103 4.9.1.3.
  • Page 7 DG-GS1528HP User Manual 4.10.2.3. Management ACE ................125 4.10.3. Authentication Manager ................127 4.10.3.1. Property .................... 127 4.10.3.2. Port Setting ..................133 4.10.3.3. Sessions .................... 138 4.10.4. Port Security ....................140 4.10.5. Protected Port .................... 143 4.10.6. Storm Control .................... 144 4.10.7.
  • Page 8 DG-GS1528HP User Manual 4.11.3. IPv4 ACL ....................166 4.11.4. IPv4 ACE ....................167 4.11.5. ACL Binding ..................... 172 4.12. QoS ........................173 4.12.1. General ...................... 173 4.12.1.1. Property .................... 173 4.12.1.2. Queue Scheduling ................176 4.12.1.3. CoS Mapping ................... 177 4.12.1.4.
  • Page 9 DG-GS1528HP User Manual 4.14.3. Configuration .................... 196 4.14.3.1. Upgrade / Backup ................196 4.14.3.2. Save Configuration ................201 4.14.4. SNMP ......................202 4.14.4.1. View ....................202 4.14.4.2. Group ....................202 4.14.4.3. Community ..................205 4.14.4.4. User ....................207 4.14.4.5. Engine ID ..................210 4.14.4.6.
  • Page 10 This guide is for the networking professional managing the standalone GS-7000 switch series. It is recommended that only professionals with experience working with Digisol Systems Limited networking devices who are familiar with the Ethernet and local area networking terminology, should service the equipment.

  • Page 11: Introduction

    DG-GS1528HP User Manual 1. Introduction Thank you for choosing a Digisol (PoE) WEB Smart Ethernet Switch. This device is designed to be operational right out-of-the-box as a standard bridge. In the default configuration, it will forward packets between connecting devices after powered up.

  • Page 12: Product Components

    • IEEE 802.1Q VLAN allows network segmentation to enhance performance and security • Supports Access Control List (ACL) • Switch capacity: DG-GS1528HP: 56Gbps, Forwarding rate: 41.6Mpps • Supports IGMP Snooping V1 / V2 / V3 • 8K MAC address table and 10K jumbo frames •...

  • Page 13: Led Indicators

    Designed to install SFP modules and connect to network SFP2, SFP3, and devices with a bandwidth of 100/1000Mbps. Each has a SFP4) corresponding 100Mbps & 1000Mbps LED. The following view applies to DG-GS1528HP. Figure 2 - Rear View Name Description AC power in Supports AC 100 –...
  • Page 14 DG-GS1528HP User Manual • Off: system not ready • On: system ready System • Blinking: system boot-up LINK/ACT bi-color LED: • Off: port disconnected or link fail Port LED • Green on: 1000Mbs connected, PoE power output on • Amber on: 10/100Mbps connected •...

  • Page 15: Installation

    DG-GS1528HP User Manual 2. Installation This chapter describes how to install and connect your Digisol Systems Limited Switch. Read the following topics and perform the procedures in the correct order. Incorrect installation may cause damage to the product. 2.1. Mounting the Switch There are two ways to physically set up the switch.
  • Page 16 DG-GS1528HP User Manual Figure 4 - Desktop Installation...

  • Page 17: Rack Mounting

    DG-GS1528HP User Manual 2.1.2. Rack Mounting You can mount the switch in any standard size, 19-inch (about 48 cm) wide rack. The switch requires 1 rack unit (RU) of space, which is 1.75 inches (44.45 mm) high. For stability, load the rack from the bottom to the top, with the heaviest devices on the bottom.
  • Page 18 DG-GS1528HP User Manual Figure 5 - Bracket Installation...
  • Page 19 DG-GS1528HP User Manual Secure the switch on the equipment rack with the screws provided. Figure 6 - Rack Installation...

  • Page 20: Getting Started

    DG-GS1528HP User Manual 3. Getting Started This section provides an introduction to the web-based configuration utility, and covers the following topics: • Powering on the device • Connecting to the network • Power over Ethernet (PoE) considerations • Starting the web-based configuration utility 3.1.
  • Page 21 DG-GS1528HP User Manual supply. It is recommended to connect the switch with a single-phase three-wire power source with a neutral outlet, or a multifunctional computer professional source. Connect the AC power connector on the back panel of the switch to the external power source with the included power cord, and check the power LED is on.

  • Page 22: Connecting To The Network

    DG-GS1528HP User Manual 3.1.2. Connecting to the Network To connect the switch to the network: Connect an Ethernet cable to the Ethernet port of a computer Connect the other end of the Ethernet cable to one of the numbered Ethernet ports of the switch.

  • Page 23: Power Over Ethernet (Poe) Considerations

    DG-GS1528HP User Manual 3.1.3. Power over Ethernet (PoE) Considerations For PoE switch models, consider the following information: Devices considered a Power Sourcing Equipment (PSE), can support up to 30 Watts per PoE port on port 1 to 4 and 15.4 Watts per PoE port on other ports to a Powered Device (PD).
  • Page 24 DG-GS1528HP User Manual Browser Restrictions • If you are using older versions of Internet Explorer, you cannot directly use an IPv6 address to access the device. You can, however, use the DNS (Domain Name System) server to create a domain name that contains the IPv6 address, and then use that domain name in the address bar in place of the IPv6 address.
  • Page 25 DG-GS1528HP User Manual Launching the Configuration Utility To open the web-based configuration utility: Open a Web browser. Enter the IP address of the device you are configuring in the address bar on the browser (factory default IP address is 192.168.1.10) and then press Enter.

  • Page 26: Logging In

    DG-GS1528HP User Manual 3.1.5. Logging In The default username is admin and the default password is admin. The first time that you log in with the default username and password, you are required to enter a new password. To log in to the device configuration utility: Enter the default user ID (admin) and the default password (admin).
  • Page 27 DG-GS1528HP User Manual Logging Out By default, the application logs out after ten minutes of inactivity. To logout, click Logout in the top right corner of any page. The system logs out of the device. When a timeout occurs or you intentionally log out of the system, a message appears and the Login page appears, with a message indicating the logged-out state.

  • Page 28: Web-Based Switch Configuration

    DG-GS1528HP User Manual 4. Web-based Switch Configuration The PoE smart switch software provides rich Layer 2 functionality for switches in your networks. This chapter describes how to use the web-based management interface (Web UI) to configure the switch’s features. For the purposes of this manual, the user interface is separated into four sections, as...

  • Page 29: Status

    DG-GS1528HP User Manual 4.1. Status Use the Status pages to view system information and status. 4.1.1. System Information This page shows switch panel, CPU utilization, Memory utilization and other system current information.It also allows user to edit some system information.
  • Page 30 DG-GS1528HP User Manual MAC Address Base MAC address of the switch. IPv4 Address Current system IPv4 address. System OID SNMP system object ID. System Uptime Total elapsed time from booting. Current Time Current system time. Loader Version Boot loader image version.

  • Page 31: Port

    DG-GS1528HP User Manual 4.1.2. Port The Port configuration page displays port summary and status information. 4.1.2.1. Statistics This page displays standard counters on network traffic form the Interfaces, Ethernet -like and RMONMIB. Interfaces and Ethernet-like counters display errors on the traffic passing through each port.
  • Page 32 DG-GS1528HP User Manual To view the Port Flow Chart menu, navigate to Status > Port > Statistics.
  • Page 33 DG-GS1528HP User Manual Figure 14 - Status > Port > Statistics Item Description Port Select one port to show counter statistics. Select the MIB counter to show different counter type • All: All counters. • Interface: Interface related MIB counters.

  • Page 34: Error Disabled

    DG-GS1528HP User Manual Refresh the web page every period of seconds to get new Refresh Rate counter of specified port. 4.1.2.2. Error Disabled To view the Error Disabled menu, navigate to Status > Port > Error Disabled. Figure 15 - Status > Port > Error Disabled...
  • Page 35 DG-GS1528HP User Manual Port will be disabled by one of the following error reason: • BPDU Guard • UDLD • Self Loop • Broadcast Flood • Unknown Multicast Flood Reason • Unicast Flood • ACL • Port Security Violation • DHCP rate limit •...

  • Page 36: Traffic Statistics

    DG-GS1528HP User Manual 4.1.2.3. Traffic Statistics This page allow user to browse ports’ bandwidth utilization in real time. This page will refresh automatically in every refresh period. To view the Bandwidth Utilization menu, navigate to Status > Port > Bandwidth Utilization.

  • Page 37: Link Aggregation

    DG-GS1528HP User Manual 4.1.3. Link Aggregation To view the Link Aggregation menu, navigate to Status > Link Aggregation. Figure 17 - Status > Link Aggregation Item Description LAG Name. Name LAG port description. • The type of the LAG. • Static: The group of ports assigned to a static LAG are always active members.

  • Page 38: Mac Address Table

    DG-GS1528HP User Manual 4.1.4. MAC Address Table The MAC address table page displays all MAC address entries on the switch including static MAC address created by administrator or auto learned from hardware. The “ Clear” button will clear all dynamic entries and “Refresh” button will retrieve latest MAC address entries and show them on page.

  • Page 39: Network

    DG-GS1528HP User Manual 4.2. Network Use the Network pages to configure settings for the switch network interface and how the switch connects to a remote server to get services. 4.2.1. IP Address This section allows you to edit the IP address, Netmask, Gateway and DNS server of the switch.

  • Page 40: System Time

    DG-GS1528HP User Manual Item Description The address type of switch IP configuration including • Static: Static IP configured by users will be used. Address Type • Dynamic: Enable the DHCP to obtain the IP address from a DHCP server. Specify the switch static IP address on the static IP Address configuration.
  • Page 41 DG-GS1528HP User Manual Figure 20 - Network > System Time Item Description Select the time source. • SNTP: Time sync from NTP server. Source • From Computer: Time set from browser host. • Manual Time: Time set by manually configure.
  • Page 42 DG-GS1528HP User Manual Select the address type of NTP server. This is enabled Address Type when time source is SNTP. Input IPv4 address or hostname for NTP server. This is Server Address enabled when time source is SNTP. Input NTP port for NTP server. Default is 123. This is Server Port enabled when time source is SNTP.

  • Page 43: Port

    DG-GS1528HP User Manual 4.3. Port Use the Port pages to configure settings for switch port related features. 4.3.1. Port Setting This page shows port current status and allow user to edit port configurations. Select port entry and click “Edit” button to edit port configurations.
  • Page 44 DG-GS1528HP User Manual Figure 21 - Port > Port Setting Item Description Port Port Name. Type Port media type. Description Port Description. Port admin state State • Enabled: Enable the port. • Disabled: Disable the port.
  • Page 45 DG-GS1528HP User Manual Current port link status Link Status • Up: Port is link up. • Down: Port is link down. Speed Current port speed configuration and link speed status. Duplex Current port duplex configuration and link duplex status. Current port flow control configuration and link flow Flow Control control status.
  • Page 46 DG-GS1528HP User Manual Port speed capabilities. • Auto: Auto speed with all capabilities. • Auto-10M: Auto speed with 10M ability only. • Auto-100M: Auto speed with 100M ability only. • Auto-1000M: Auto speed with 1000M ability only. Speed • Auto-10M/100M: Auto speed with 10M/100M abilities.

  • Page 47: Link Aggregation

    DG-GS1528HP User Manual 4.3.2. Link Aggregation 4.3.2.1. Group This page allow user to configure link aggregation group load balance algorithm and group member. To view the Group menu, navigate to Port > Link Aggregation > Group. Figure 23 - Port > Link Aggregation > Group...
  • Page 48 DG-GS1528HP User Manual The type of the LAG • Static: The group of ports assigned to a static LAG are always active members. Type • LACP: The group of ports assigned to dynamic LAG are candidate ports. LACP determines which candidate ports are active member ports.

  • Page 49: Port Setting

    DG-GS1528HP User Manual The type of the LAG • Static: The group of ports assigned to a static LAG are always active members. Type • LACP: The group of ports assigned to dynamic LAG are candidate ports. LACP determines which candidate ports are active member ports.
  • Page 50 DG-GS1528HP User Manual LAG Port admin state State • Enabled: Enable the port. • Disabled: Disable the port. Current LAG port link status Link Status • Up: Port is link up. • Down: Port is link down. Current LAG port speed configuration and link speed Speed status.
  • Page 51 DG-GS1528HP User Manual Port admin state State • Enabled: Enable the port. • Disabled: Disable the port. Port speed capabilities • Auto: Auto speed with all capabilities. • Auto-10M: Auto speed with 10M ability only. • Auto-100M: Auto speed with 100M ability only.

  • Page 52: Lacp

    DG-GS1528HP User Manual 4.3.2.3. LACP This page allow user to configure LACP global and port configurations. Select ports and click “Edit” button to edit port configuration. To view the LACP menu, navigate to Port > Link Aggregation > LACP. Figure 27 - Port > Link Aggregation > LACP...

  • Page 53: Eee

    DG-GS1528HP User Manual Figure 28 - Port > Link Aggregation > LACP > Edit LACP Port Setting Item Description Port Selected port list. Port Priority Enter the LACP priority value of the port The periodic transmissions type of LACP PDUs.
  • Page 54 DG-GS1528HP User Manual Item Description Port Port Name. Port EEE admin state State • Enabled: EEE is enabled • Disabled: EEE is disabled Port EEE operational status • Enabled: EEE is operating Operational Status • Disabled: EEE is no operating Click “Edit”...

  • Page 55: Jumbo Frame

    DG-GS1528HP User Manual 4.3.4. Jumbo Frame This page allow user to configure switch jumbo frame size. To view the Jumbo Frame menu, navigate to Port > Jumbo Frame. Figure 31 - Port > Jumbo Frame Item Description Enable or disable jumbo frame. When jumbo frame is enabled, switch max frame size is allowed to configure.

  • Page 56: Poe

    DG-GS1528HP User Manual 4.4. PoE Port security can set port isolation and specific behavior. 4.4.1. Global Setting To view the Global Setting menu, navigate to PoE > Global Setting. Figure 32 - PoE > Global Setting Item Description Nominal Power Maximum supply power.
  • Page 57 DG-GS1528HP User Manual Remaining Power Remaining available power. Schedule Status Schedule status global switch. Name Schedule Name. Port List The ports provide power in designated schedule index. Schedule Status The current schedule status. Click “Edit” to view PoE Schedule List menu.

  • Page 58: Priority Setting

    DG-GS1528HP User Manual 4.4.2. Priority Setting Use this section to set the power supply priority of PoE ports. Individual ports can be assigned critical, high, or low power supply priority. To view the Priority Setting menu, navigate to PoE > Priority Setting.
  • Page 59 DG-GS1528HP User Manual Figure 35 - PoE > Power Limit Item Description Port Port name. Power Limit The max supply power for this port. Click “Edit” to view Power Limit Setting menu. Figure 36 - PoE > Power Setting > Power Limit Setting Table...
  • Page 60 DG-GS1528HP User Manual 4.4.4. Power show To view the Power Show menu, navigate to PoE > Power Show. Figure 37 - PoE > Power Show Item Description Per Port PoE Status • Checked: Port PoE status is enabled. • Unchecked: Port PoE status is disabled.

  • Page 61: Vlan

    DG-GS1528HP User Manual 4.5. VLAN A virtual local area network, virtual LAN or VLAN, is a group of hosts with a common set of requirements that communicate as if they were attached to the same broadcast domain, regardless of their physical location. A VLAN has the same attributes as a physical local area network (LAN), but it allows for end stations to be grouped together even if they are not located on the same network switch.VLAN membership...
  • Page 62 DG-GS1528HP User Manual Item Description VLAN has not created yet. Available VLAN Select available VLANs from left box then move to right box to add. VLAN had been created. Created VLAN Select created VLANs from right box then move to left box to delete.

  • Page 63: Vlan Configuration

    DG-GS1528HP User Manual 4.5.1.2. VLAN Configuration This page allow user to configure the membership for each port of selected VLAN. To view the VLAN Configuration menu, navigate to VLAN > VLAN > VLAN Configuration . Figure 40 - VLAN > VLAN > VLAN Configuration...

  • Page 64: Membership

    DG-GS1528HP User Manual 4.5.1.3. Membership This page allow user to view membership information for each port and edit membership for specified interface. To view the Membership menu, navigate to VLAN > VLAN > Membership. Figure 41 - VLAN > VLAN > Membership...
  • Page 65 DG-GS1528HP User Manual Click "Edit" button to view the Edit Port Setting menu Figure 42 - VLAN > VLAN > Membership > Edit Port Setting Item Description Port Display the interface. Mode Display the VLAN mode of interface. Select VLANs of left box and select one of following membership then move to right box to add membership.

  • Page 66: Port Setting

    DG-GS1528HP User Manual 4.5.1.4. Port Setting This page allow user to configure ports VLAN settings such as VLAN port mode, PVID etc…The attributes depend on different VLAN port mode. To view the Membership menu, navigate to VLAN > VLAN > Port Setting.
  • Page 67 DG-GS1528HP User Manual Figure 44 - VLAN > VLAN > Port Setting > Edit Port Setting Item Description Port Display selected port to be edited. Select the VLAN mode of the interface. • Forbidden: Set VLAN as forbidden VLAN. •...

  • Page 68: Voice Vlan

    DG-GS1528HP User Manual 4.5.2. Voice VLAN Use the Voice VLAN pages to configure settings of Voice VLAN. 4.5.2.1. Property This page allow user to configure global and per interface settings of voice VLAN. To view the Property menu, navigate to VLAN > Voice VLAN > Property.
  • Page 69 DG-GS1528HP User Manual Set checkbox to enable or disable 1p remarking. If Remarking enabled, qualified packets will be remark by this value. Input value of aging time. Default is 1440 minutes. A Aging Time voice VLAN entry will be age out after this time if without any packet pass through.

  • Page 70: Voice Oui

    DG-GS1528HP User Manual Select port voice VLAN mode • Auto: Voice VLAN auto detect packets that match OUI table and add received port into voice VLAN ID tagged Mode member. • Manual: User need add interface to VLAN ID tagged member manually.
  • Page 71 DG-GS1528HP User Manual Figure 47 - VLAN > Voice VLAN > Voice OUI Item Description Display OUI MAC address. Description Display description of OUI entry. Click “Add” or “Edit” button to Add/Edit Voice OUI menu. Figure 48 - VLAN > Voice VLAN > Voice OUI > Add/Edit Voice OUI...

  • Page 72: Mac Vlan

    DG-GS1528HP User Manual Item Description Input OUI MAC address. Can’t be edited in edit dialog. Input description of the specified MAC address to the voice Description VLAN OUI table. 4.5.3. MAC VLAN Use the MAC VLAN pages to configure settings of MAC VLAN.

  • Page 73: Group Binding

    DG-GS1528HP User Manual Figure 50 - VLAN > MAC VLAN > MAC Group > Add/Edit MAC Item Description Input group ID that is a unique ID of mac group entry. Group ID The range from 1 to 2147483647. Only available on Add Dialog.
  • Page 74 DG-GS1528HP User Manual Figure 51 - VLAN > MAC VLAN > Group Binding Item Description Port Display port ID that binding with MAC group entry. Group ID Display group ID that port binding with. Display VLAN ID that assign to packets which match MAC VLAN group.
  • Page 75 DG-GS1528HP User Manual Item Description Select ports in left box then move to right to binding with MAC group. Or select ports in right box then move to left to unbind with MAC group. Only interface has hybrid VLAN Port mode can be selected and bound with protocol group.

  • Page 76: Mac Address Table

    DG-GS1528HP User Manual 4.6. MAC Address Table Use the MAC Address Table pages to show dynamic MAC table and configure settings for static MAC entries. 4.6.1. Dynamic Address To view the Dynamic Address menu, navigate to MAC Address Table > Dynamic Address.

  • Page 77: Static Address

    DG-GS1528HP User Manual 4.6.2. Static Address To view the Static Address menu, navigate to MAC Address Table > Static Address. Figure 54 - MAC Address Table > Static Address. Item Description The MAC address to which packets will be statically MAC Address forwarded.

  • Page 78: Spanning Tree

    DG-GS1528HP User Manual Item Description MAC Address Specify unicast MAC address in the packets to be dropped. VLAN Specify the VLAN to show or clear MAC entries. 4.7. Spanning Tree The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network.
  • Page 79 DG-GS1528HP User Manual Item Description State Enable/disable the STP on the switch. Specify the STP operation mode. • STP: Enable the Spanning Tree (STP) operation. Operation Mode • RSTP: Enable the Rapid Spanning Tree (RSTP) operation. • MSTP: Enable the Multiple Spanning Tree (MSTP) operation.
  • Page 80 DG-GS1528HP User Manual Specify the tx-hold-count used to limit the maximum TX Hold Count numbers of packets transmission per second. The valid range is from 1 to 10. The MSTP instance name. Its maximum length is 32 Region Name characters. The default value is the MAC address of the switch.

  • Page 81: Port Setting

    DG-GS1528HP User Manual 4.7.2. Port Setting To view the Port Setting menu, navigate to Spanning Tree > Port Setting. Figure 57 - Spanning Tree > Port Setting Item Description Port Specify the interface ID or the list of interface IDs.
  • Page 82 DG-GS1528HP User Manual Click "Edit" button to view Edit Port Setting menu. Figure 58 - Spanning Tree > Port Setting > Edit Port Setting Item Description Port Selected port ID. State Enable/Disable the STP on the specified port. Path Cost Specify the STP path cost on the specified port.
  • Page 83 DG-GS1528HP User Manual Specify the edge mode. • Enable: Force to true state (as link to a host). • Disable: Force to false state (as link to a bridge). Edge Port In the edge mode, the interface would be put into the Forwarding state immediately upon link up.

  • Page 84: Mst Instance

    DG-GS1528HP User Manual 4.7.3. MST Instance To view the MST Instance menu, navigate to Spanning Tree > MST Instance. Figure 59 - Spanning Tree > MST Instance Item Description MSTI Designated port number. Priority The bridge priority on the specified MSTI.
  • Page 85 DG-GS1528HP User Manual Click "Edit" button to view Edit MST Instance menu. Figure 60 - Spanning Tree > MST Instance > Edit MST Instance Setting Item Description VLAN Select the VLAN list for the specified MSTI. Specify the bridge priority on the specified MSTI. The valid range is from 0 to 61440, and the value must be the multiple of 4096.

  • Page 86: Mst Port Setting

    DG-GS1528HP User Manual 4.7.4. MST Port Setting To view the MST Port Setting menu, navigate to Spanning Tree > MST Port Setting. Figure 61 - Spanning Tree > MST Port Setting Item Description MSTI Specify the port setting on the specified MSTI.
  • Page 87 DG-GS1528HP User Manual Designated Bridge The bridge ID of the designated bridge. Designated Port The designated port ID on the switch. Designated Cost The path cost of the designated port on the switch. Remaining Hop The remaining hops count on the specified port.

  • Page 88: Statistics

    DG-GS1528HP User Manual 4.7.5. Statistics To view the Statistics menu, navigate to Spanning Tree > Statistics. Figure 63 - Spanning Tree > Statistics Item Description Refresh Rate The option to refresh the statistics automatically. Receive BPDU The counts of the received CONFIG BPDU.
  • Page 89 DG-GS1528HP User Manual Click "View" button to view the STP Port Statistic menu. Figure 64 - Spanning Tree > Statistics > STP Port Statistic Item Description Refresh Rate The option to refresh the statistics automatically. Clear Clear the statistics for the selected interfaces.

  • Page 90: Discovery

    DG-GS1528HP User Manual 4.8. Discovery Use this section to configure LLDP. 4.8.1. LLDP LLDP is a one-way protocol; there are no request/response sequences. Information is advertised by stations implementing the transmit function, and is received and processed by stations implementing the receive function. The LLDP category contains LLDP and LLDP-MED pages.

  • Page 91: Port Setting

    DG-GS1528HP User Manual Item Description State Enable/ Disable LLDP protocol on this switch. Select LLDP PDU handling action to be filtered, bridging or flooded when LLDP is globally disabled. • Filtering: Deletes the packet. LLDP Handling • Bridging: (VLAN-aware flooding) Forwards the packet to all VLAN members.
  • Page 92 DG-GS1528HP User Manual Figure 66 - Discovery > LLDP > Port Setting Item Description Port Port Name. Mode The port LLDP mode. Selected TLV The Selected LLDP TLV.
  • Page 93 DG-GS1528HP User Manual Click "Edit" button to view Edit Port Setting menu. Figure 67 - Discovery > LLDP > Port Setting > Edit Port Setting Item Description Port Select specified port or all ports to configure LLDP state. Select the transmission state of LLDP port interface.

  • Page 94: Packet View

    DG-GS1528HP User Manual Select the LLDP optional TLVs to be carried (multiple selection is allowed). • System Name • Port Description • System Description • System Capability Optional TLV • 802.3 MAC-PHY • 802.3 Link Aggregation • 802.3 Maximum Frame Size •...
  • Page 95 DG-GS1528HP User Manual Figure 68 - Discovery > LLDP > Packet View Item Description Port Port Name. In-Use (Bytes) Total number of bytes of LLDP information in each packet. Available (Bytes) Total number of available bytes left for additional LLDP information in each packet.
  • Page 96 DG-GS1528HP User Manual Click "Detail" button to view Packet View Detail menu. Figure 69 - Discovery > LLDP > Packet View > Packet View Detail Item Description Port Port Name. Total mandatory TLV byte size. Status is sent or Mandatory TLVs overloading.

  • Page 97: Local Information

    DG-GS1528HP User Manual 4.8.1.4. Local Information Use the LLDP Local Information to view LLDP local device information. To view the Local Information menu, navigate to Discovery > LLDP > Local Information. Figure 70 - Discovery > LLDP > Local Information...
  • Page 98 DG-GS1528HP User Manual LLDP Status LLDP Tx and Rx abilities. LLDP Med Status LLDP MED enable state. Click “Detail” button on the page to view detail information of the selected port. Figure 71 - Discovery > LLDP > Local Information > Detail...

  • Page 99: Neighbor

    DG-GS1528HP User Manual 4.8.1.5. Neighbor Use the LLDP Neighbor page to view LLDP neighbors information. To view the Neighbor menu, navigate to Discovery > LLDP > Neighbor. Figure 72 - Discovery > LLDP > Neighbor Item Description Number of the local port to which the neighbor is Local Port connected.

  • Page 100: Statistics

    DG-GS1528HP User Manual 4.8.5.6. Statistics The Link Layer Discovery Protocol (LLDP) Statistics page displays summary and per-port information for LLDP frames transmitted and received on the switch. To view the Statistics menu, navigate to Discovery > LLDP > Statistics. Figure 73 - Discovery > LLDP > Statistics...

  • Page 101: Multicast

    DG-GS1528HP User Manual Statistics Table Port Interface or port number. Transmit Frame Number of LLDP frames transmitted on the corresponding Total port. Receive Frame Number of LLDP frames received by this LLDP agent on Total the corresponding port, while the LLDP agent is enabled.
  • Page 102 DG-GS1528HP User Manual Figure 74 - Multicast > General > Property Item Description Set the unknown multicast action Unknown • Flood: flood the unknown multicast data. Multicast • Drop: drop the unknown multicast data. Action • Router port: forward the unknown multicast data to router port.

  • Page 103: Group Address

    DG-GS1528HP User Manual 4.9.1.2. Group Address This page allow user to browse all multicast groups that dynamic learned or statically added. To view the Group Address menu, navigate to Multicast > General > Group Address. Figure 75 - Multicast > General > Group Address...
  • Page 104 DG-GS1528HP User Manual Click “Add” button to view Add Group Address menu. Figure 76 - Multicast > General > Group Address > Add Group Address Item Description VLAN The VLAN ID of group. IP Version IP Version • IPv4: ipv4 multicast group •...

  • Page 105: Router Port

    DG-GS1528HP User Manual 4.9.1.3. Router Port This page allow user to browse all router port information. The static and forbidden router port can set by user. To view the Router Port menu, navigate to Multicast > General > Router Port.
  • Page 106 DG-GS1528HP User Manual Click "Add" button to view Add Router Port menu. Figure 78 - Multicast > General > Router Port > Add Router Port Item Description The VLAN ID for router entry VLAN • Available VLAN: Optional VLAN member •...
  • Page 107 DG-GS1528HP User Manual The member ports of router entry. • Available Port: Optional router port member Port • Selected Port: Selected router port member...

  • Page 108: Igmp Snooping

    DG-GS1528HP User Manual 4.9.2. IGMP Snooping Use the IGMP Snooping pages to configure settings of IGMP snooping function. 4.9.2.1. Property This page allow user to configure global settings of IGMP snooping and configure specific VLAN settings of IGMP Snooping. To view the Property menu, navigate to Multicast > IGMP Snooping > Property.
  • Page 109 DG-GS1528HP User Manual Set the enabling status of IGMP v2 report suppression Report • Enable: If Checked Enable IGMP Snooping v2 report Suppression suppression, else Disable the report suppression function. VLAN The IGMP entry VLAN ID. Operation Status The enable status of IGMP snooping VLAN functionality.
  • Page 110 DG-GS1528HP User Manual Figure 80 - Multicast > IGMP Snooping > Property >Edit VLAN Setting Item Description VLAN The selected VLAN List. Set the enabling status of IGMP Snooping VLAN functionality State • Enable: If Checked Enable IGMP Snooping VLAN, else is Disabled IGMP Snooping VLAN.
  • Page 111 DG-GS1528HP User Manual Immediate Leave the group when receive IGMP Leave message. Immediate leave • Enable: If checked Enable immediate leave, else disable immediate leave. The Admin Query Robustness allows tuning for the Query Robustness expected packet loss on a subnet.

  • Page 112: Querier

    DG-GS1528HP User Manual 4.9.2.2. Querier This page allow user to configure querier settings on specific VLAN of IGMP Snooping. To view the Querier menu, navigate to Multicast > IGMP Snooping > Querier . Figure 81 - Multicast > IGMP Snooping > Querier...

  • Page 113: Statistics

    DG-GS1528HP User Manual Figure 82 - Multicast > IGMP Snooping > Querier > Edit Querier Item Description VLAN The Selected Edit IGMP Snooping querier VLAN List. Set the enabling status of IGMP Querier Election on the chose VLANs State • Enabled: if checked Enable IGMP Querier else Disable IGMP Querier.
  • Page 114 DG-GS1528HP User Manual Figure 83 - Multicast > IGMP Snooping > Statistics Item Description Receive Packet Total Total RX igmp packet, include ipv4 multicast data to CPU. Valid The valid igmp snooping process packet. InValid The invalid igmp snooping process packet.

  • Page 115: Mvr

    DG-GS1528HP User Manual IGMP general query packet include querier transmit General Query general query packet. Special Group IGMP special group query packet include querier transmit Query special group query packet. Source-specific IGMP Special Source and Group General Query packet. Group Query 4.9.3.

  • Page 116: Port Setting

    DG-GS1528HP User Manual Item Description • Enable: if checked enable the MVR state, else disable the State MVR state. VLAN The MVR VLAN ID. Set the MVR mode • Compatible: compatible mode. Mode • Dynamic: dynamic mode, will learn group member on source port.

  • Page 117: Group Address

    DG-GS1528HP User Manual Role Port Role for MVR, the type is None/Receiver/Source. Immediate Leave Status of immediate leave. Click "Edit" button to view Edit Port Setting menu. Figure 86 - Multicast > MVR > Port Setting > Edit Port Setting...
  • Page 118 DG-GS1528HP User Manual Address. Figure 87 - Multicast > MVR > Group Address Item Description VLAN The VLAN ID of MVR group. Item Group Address The MVR group IP address. Member The member ports of MVR group. Type The type of MVR group. Static or Dynamic.
  • Page 119 DG-GS1528HP User Manual Item Description VLAN The VLAN ID of MVR group. Group Address The MVR group IP address. The member ports of MVR group. • Available Port: Optional port member, it is only receiver port when MVR mode is compatible, it include source port Member when mode is dynamic.

  • Page 120: Security

    DG-GS1528HP User Manual 4.10. Security Use the Security pages to configure settings for the switch security features. 4.10.1. RADIUS This page allow user to add, edit or delete RADIUS server settings and modify default parameter of RADIUS server. To view the RADIUS menu, navigate to Security > RADIUS.
  • Page 121 DG-GS1528HP User Manual RADIUS server priority (smaller value has higher priority). RADIUS session will try to establish with the server setting Priority which has highest priority. If failed, it will try to connect to the server with next higher priority.
  • Page 122 DG-GS1528HP User Manual Item Description In add dialog, user need to specify server Address Type • Hostname: Use domain name as server address. Address Type • IPv4: Use IPv4 as server address. • IPv6: Use IPv6 as server address. In add dialog, user need to input server address based on Server Address address type.

  • Page 123: Management Access

    DG-GS1528HP User Manual 4.10.2. Management Access Use the Management Access pages to configure settings of management access. 4.10.2.1. Management Service To view the Management Service menu, navigate to Security > Management Access > Management Service. Figure 91 - Security > Management Access > Management Service...

  • Page 124: Management Acl

    DG-GS1528HP User Manual Item Description Management service admin state. • Telnet: Connect CLI through telnet. Management • SSH: Connect CLI through SSH. Service • HTTP: Connect WEBUI through HTTP. • HTTPS: Connect WEBUI through HTTPS. • SNMP: Manage switch trough SNMP.

  • Page 125: Management Ace

    DG-GS1528HP User Manual Item Description ACL Name Input MAC ACL name. Management ACL ACL Name Display Management ACL name. State Display Management ACL whether active. Rule Display the number Management ACE rule of ACL. 4.10.2.3. Management ACE To view the Management ACE menu, navigate to Security > Management Access >...
  • Page 126 DG-GS1528HP User Manual Figure 94 - Security > Management Access > Management ACE > Add Item Description ACL Name Display the ACL name to which an ACE is being added. Specify the priority of the ACE. ACEs with higher sequence Priority are processed first (1 is the highest priority).

  • Page 127: Authentication Manager

    DG-GS1528HP User Manual Select the type service of rule. • All: All services • HTTP: Only HTTP service. Service • HTTPs: Only HTTPs service. • SNMP: Only SNMP service. • SSH: Only SSH service. • Telnet: Only Telnet service. Select the action after ACE match packet.
  • Page 128 DG-GS1528HP User Manual Figure 95 - Security > Authentication Manager > Property Item Description Set checkbox to enable/disable following authentication types • 802.1x: Use IEEE 802.1x to do authentication Authentication • MAC-Based: Use MAC address to do authentication Type •...
  • Page 129 DG-GS1528HP User Manual Select mac-based authentication RADIUS username/password ID format. • XXXXXXXXXXXX • Xxxxxxxxxxxx • XX:XX:XX:XX:XX:XX • xx:xx:xx:xx:xx:xx • XX-XX-XX-XX-XX-XX • xx-xx-xx-xx-xx-xx • XX.XX.XX.XX.XX.XX • xx.xx.xx.xx.xx.xx • XXXX:XXXX:XXXX MAC-Based User • xxxx:xxxx:xxxx ID Format • XXXX-XXXX-XXXX • xxxx-xxxx-xxxx • XXXX.XXXX.XXXX •...
  • Page 130 DG-GS1528HP User Manual Authentication 802.1X authentication type state Type • Enabled: 802.1X is enabled. (802.1X) • Disabled: 802.1X is disabled. Authentication MAC-Based authentication type state Type • Enabled: MAC-Based authentication is enabled (MAC-Based) • Disabled: MAC-Based authentication is disabled Authentication...
  • Page 131 DG-GS1528HP User Manual Port guest VLAN enable state Guest VLAN • Enabled: Guest VLAN is enabled on port. • Disabled: Guest VLAN is disabled on port. Support following VLAN assign mode and only apply when source is RADIUS • Disable: Ignore the VLAN authorization result and keep original VLAN of host.
  • Page 132 DG-GS1528HP User Manual Click “Edit” button to view the Edit Port Mode menu. Figure 96 - Security > Authentication Manager > Property > Edit Port Mode Item Description Port Selected port list. Authentication Set checkbox to enable/disable authentication types. Type Select authenticating host mode •...

  • Page 133: Port Setting

    DG-GS1528HP User Manual combinations. • These orders only available on MAC-Based authentication and WEB-Based authentication. 802.1x only support Radius method. • Local: Use DUT’s local database to do authentication. • Radius: Use remote RADIUS server to do authentication. • Local Radius.
  • Page 134 DG-GS1528HP User Manual Figure 97 - Security > Authentication Manager > Port Setting Item Description Port Port Support following authentication port control types. • Disable: Disable authentication function and all clients have network accessibility. • Force Authorized: Port is force authorized and all clients Port Control have network accessibility.
  • Page 135 DG-GS1528HP User Manual (Reauthentication) and need to pass authentication procedure again. If no packet from the authenticated host, the inactive timer will increase. After inactive timeout, the host will be Common Timer unauthorized and corresponding session will be deleted. In...
  • Page 136 DG-GS1528HP User Manual Click "Edit" button to view Edit Port Setting menu. Figure 98 - Security > Authentication Manager > Port Setting > Edit Port Setting Item Description Port Port Name. Support following authentication port control types. • Disable: Disable authentication function and all clients have network accessibility.Force Authorized: Port is force...
  • Page 137 DG-GS1528HP User Manual • Auto: Need passing authentication procedure to get network accessibility. Reauthentication Set checkbox to enable/disable reuauthentication. In Multiple Authentication mode, total host number cannot Max Hosts not exceed max hosts number. Common Timer After re-authenticate period, host will return to initial state Reauthentication and need to pass authentication procedure again.

  • Page 138: Sessions

    DG-GS1528HP User Manual resent to the supplicant. Number of seconds that lapses before the device resends Max Request a request to the authentication server. Web-Based Param Set checkbox to set max login number to be infinite or Max Login specify max login number.
  • Page 139 DG-GS1528HP User Manual Show current authenticating type • 802.1x: Use IEEE 802.1X to do authenticating • MAC-Based: Use MAC-Based authentication to do Current Type authenticating. • WEB-Based: Use WEB-Based authentication to do authenticating. Show host authentication session status • IP version (IPv4, IPv6) •...

  • Page 140: Port Security

    DG-GS1528HP User Manual (VLAN) Authorized Shows reauthentication period given from authorized procedure. (Reauthentication Period) Authorized Shows inactive timeout given from authorized procedure. (Inactive Timeouts) 4.10.4. Port Security This page allow user to configure port security settings for each interface. When port security is enabled on interface, action will be perform once learned MAC address over limitation.
  • Page 141 DG-GS1528HP User Manual Port Select one or multiple ports to configure. Select the status of port security State • Disable: Disable port security function. • Enable: Enable port security function. MAC Address Specify the number of how many mac addresses can be learned.
  • Page 142 DG-GS1528HP User Manual Item Description Port Select one or multiple ports to configure. Select the status of port security State • Disable: Disable port security function. • Enable: Enable port security function. Specify the number of how many mac addresses can be MAC Address learned.

  • Page 143: Protected Port

    DG-GS1528HP User Manual 4.10.5. Protected Port This page allow user to configure protected port setting to prevent the selected ports from communication with each other. Protected port is only allowed to communicate with unprotected port.In other words, protected port is not allowed to communicate with another protected port.

  • Page 144: Storm Control

    DG-GS1528HP User Manual Item Description Port Selected port list. Port protected admin state. State • Protected: Enable protecting function. • Unprotected: Disable protecting function. 4.10.6. Storm Control To view the Storm Control menu, navigate to Security > Storm Control. Figure 104 - Security > Storm Control...
  • Page 145 DG-GS1528HP User Manual ingress storm control rate. • Included: include preamble & IFG (20 bytes) when count ingress storm control rate. Click "Edit" button to view Edit Port Setting menu. Figure 105 - Security > Storm Control > Edit Port Setting...

  • Page 146: Dos

    DG-GS1528HP User Manual Enable: Enable the storm control function of Unknown multicast packet.Value of storm control rate, Unit: pps Unknown (packet per-second, range 1- 262143) or Kbps (Kbits per- Multicast second, range16 - 1000000) depends on global mode setting. Select the state of setting •...
  • Page 147 DG-GS1528HP User Manual Figure 106 - Security > DoS > Property Item Description Avoids ping of death attack. Drops the packets if the source IP address is equal to the Land destination IP address. Drops the packets if the UDP source port equals to the UDP Blat UDP destination port.
  • Page 148 DG-GS1528HP User Manual X-Mas Drops the packets if the sequence number is zero, and the FIN, URG and PSH bits are set. Scan Attack Drops the packets with SYN and FIN bits set. SYN-FIN Attack Drops the packets with SYN and RST bits set...

  • Page 149: Port Setting

    DG-GS1528HP User Manual 4.10.7.2. Port Setting To view the Port Setting menu, navigate to Security > DoS > Port Setting. Figure 107 - Security > DoS > Port Setting Item Description Port Interface or port number. State Enable/Disable the DoS protection on the interface.
  • Page 150 DG-GS1528HP User Manual Figure 108 - Security > DHCP Snooping > Property Item Description State Set checkbox to enable/disable DHCP Snooping function. Select VLANs in left box then move to right to enable VLAN DHCP Snooping. Or select VLANs in right box then move to left to disable DHCP Snooping.

  • Page 151: Statistics

    DG-GS1528HP User Manual Click "Edit" button to view Edit Port Setting menu. Figure 109 - Security > DHCP Snooping > Property > Edit Port Setting Item Description Port Display selected port to be edited Set checkbox to enable/disabled trust of interface. All Trust DHCP packet will be forward directly if enable trust.

  • Page 152: Option82 Property

    DG-GS1528HP User Manual Figure 110 - Security > DHCP Snooping > Statistics Item Description Port Display port ID. Forwarded Display how many packets forwarded normally. Chaddr Check Display how many packets dropped by chaddr validation. Drop Untrusted Port Display how many DHCP server packets that are received by untrusted port dropped.
  • Page 153 DG-GS1528HP User Manual Figure 111 - Security > DHCP Snooping > Option82 Property Item Description Set checkbox to enable user-defined remote-ID. By User Defined default, remote ID is switch mac in byte order. Input user-defined remote ID. Only available when enable Remote ID user-define remote ID.

  • Page 154: Option82 Circuit Id

    DG-GS1528HP User Manual Figure 112 - Security > DHCP Snooping > Option82 Property > Edit Port Setting Item Description Port Display selected port to be edited Set checkbox to enable/disable option82 function of State interface. Select the action perform when untrusted port receive DHCP packet has option82 filed.
  • Page 155 DG-GS1528HP User Manual Figure 113 - Security > DHCP Snooping > Option82 Circuit ID Item Description Port Display port ID of entry. VLAN Display associate VLAN of entry. Circuit ID Display circuit ID string of entry. Click “Add” button or "Edit" button to view the Add/Edit Option82 Circuit ID menu.

  • Page 156: Ip Source Guard

    DG-GS1528HP User Manual Item Description Select port from list to associate to CID entry. Only Port available on Add dialog. Input VLAN ID to associate to circuit ID entry. VLAN ID is VLAN not mandatory. Only available on Add dialog.
  • Page 157 DG-GS1528HP User Manual Item Description Port Display port ID. Display IP Source Guard enable/disable status of State interface. Verify Source Display mode of IP Source Guard verification Current Binding Display current binding entries of a interface. Entry Display the number of maximum binding entry of Max Binding Entry interface.

  • Page 158: Impv Binding

    DG-GS1528HP User Manual • IP: Only verify source IP address of packet. • IP-MAC: Verify source IP and source MAC address of packet. Input the maximum number of entries that a port can be Max Entry bounded.Default is un-limited on all ports. No entry will be bound if limitation reached.
  • Page 159 DG-GS1528HP User Manual Display MAC address of entry. Only available of IP-MAC MAC Address binding entry. Display IP address of entry. Mask always to be IP Address 255.255.255.255 for IP-MAC binding. IP binding entry display user input. Binding Display binding type of entry.

  • Page 160: Save Database

    DG-GS1528HP User Manual Item Description Port Select port from list of a binding entry. VLAN Specify a VLAN ID of a binding entry. Select matching mode of binding entry • IP-MAC-Port-VLAN: packet must match IP address、MAC Binding address、Port and VLAN ID.
  • Page 161 DG-GS1528HP User Manual Figure 119 - Security > IP Source Guard > Save Database Item Description Select the type of database agent. • None: Disable database agent service. Type • Flash: Save DHCP dynamic binding entries to flash. • TFTP: Save DHCP dynamic binding entries to remote TFTP server.
  • Page 162 DG-GS1528HP User Manual Input aborts timeout for doing backup failure. Default is Timeout 300 seconds.

  • Page 163: Acl

    DG-GS1528HP User Manual 4.11. ACL Use the ACL pages to configure settings for the switch ACL features.. 4.11.1. MAC ACL This page allow user to add or delete ACL rule. A rule cannot be deleted if under binding. To view the MAC ACL menu, navigate to ACL > MAC ACL.

  • Page 164: Mac Ace

    DG-GS1528HP User Manual 4.11.2. MAC ACE This page allow user to add, edit or delete ACE rule. An ACE rule cannot be edited or deleted if ACL under binding. New ACE cannot be added if ACL under binding. To view the MAC ACE menu, navigate to ACL > MAC ACE.
  • Page 165 DG-GS1528HP User Manual Click "Add" button to view the Add ACE menu. Figure 122 - ACL > MAC ACE > Add ACE Item Description ACL Name Display the ACL name to which an ACE is being added. Specify the sequence of the ACE. ACEs with higher Sequence sequence are processed first (1 is the highest priority).

  • Page 166: Ipv4 Acl

    DG-GS1528HP User Manual addresses which users define are acceptable. Enter the source MAC address and mask to which will be matched. Select the type for Destination MAC address. • Any: All destination addresses are acceptable. Destination MAC • User Defined: Only a destination address or a range of destination addresses which users define are acceptable.

  • Page 167: Ipv4 Ace

    DG-GS1528HP User Manual Figure 123 - ACL > IPv4 ACL Item Description ACL Name Input IPv4 ACL name. ACL Name Display IPv4 ACL name. Rule Display the number ACE rule of ACL. Port Display the port list that bind this ACL.
  • Page 168 DG-GS1528HP User Manual Item Description ACL Name Select the ACL name to which an ACE is being added. Sequence Display the sequence of ACE. Action Display the action of ACE. Protocol Display the protocol value of ACE. Source IP Display the source IP address and mask of ACE.
  • Page 169 DG-GS1528HP User Manual Figure 125 - ACL > IPv4 ACE Item Description ACL Name Display the ACL name to which an ACE is being added. Specify the sequence of the ACE. ACEs with higher Sequence sequence are processed first (1 is the highest sequence).
  • Page 170 DG-GS1528HP User Manual • Deny: Drop packets that meet the ACE criteria. • Shutdown: Drop packets that meet the ACE criteria, and disable the port from where the packets were received. Such ports can be reactivated from the Port Settings page.
  • Page 171 DG-GS1528HP User Manual the packet is matched. There are eight different port ranges that can be configured (shared between source and destination ports). TCP and UDP protocols each have eight port ranges. Select the type of protocol for a match. Only available when protocol is TCP or UDP.

  • Page 172: Acl Binding

    DG-GS1528HP User Manual Select the type for ICMP code. Only available when protocol is ICMP. ICMP Code • Any: All codes are acceptable. • User Defined: Enter an ICMP code to match. 4.11.5. ACL Binding This page allow user to bind or unbind ACL rule to or from interface. IPv4 and Ipv6 ACL cannot be bound to the same port simultaneously.

  • Page 173: Qos

    DG-GS1528HP User Manual Figure 127 - ACL > ACL Binding Item Description Port Display port entry ID. MAC ACL Select mac ACL name from list to bind. IPv4 ACL Select IPv4 ACL name from list to bind. 4.12. QoS Use the QoS pages to configure settings for the switch QoS interface.
  • Page 174 DG-GS1528HP User Manual Figure 128 - QoS > General > Property Item Description State Set checkbox to enable/disable QoS. Select QoS trust mode • CoS: Traffic is mapped to queues based on the CoS field in the VLAN tag, or based on the per-port default CoS value...
  • Page 175 DG-GS1528HP User Manual • Enabled: Traffic will follow trust mode in global setting • Disabled: Traffic will always use best efforts Remarking (CoS) Set checkbox to enable/disable port CoS remarking. • Enabled: CoS remarking is enabled • Disabled: CoS remarking is disabled Set checkbox to enable/disable port IP Precedence remarking.

  • Page 176: Queue Scheduling

    DG-GS1528HP User Manual Remarking (CoS) Set checkbox to enable/disable port CoS remarking. Remarking Set checkbox to enable/disable port IP Precedence remarking. (IP Precedence) 4.12.1.2. Queue Scheduling The switch supports eight queues for each interface. Queue number 8 is the highest priority queue.

  • Page 177: Cos Mapping

    DG-GS1528HP User Manual Figure 130 - QoS > General > Queue Scheduling Item Description Queue Queue ID to configure. Strict Priority Set queue to strict priority type. Set queue to Weight round robin type. If the queue type is WRR, set the queue weight for the Weight queue.

  • Page 178: Ip Precedence Mapping

    DG-GS1528HP User Manual Figure 131 - QoS > General > Cos Mapping Item Description CoS value. Queue Select queue id for the CoS value. Queue Queue ID Select CoS value for the queue id. 4.12.1.4. IP Precedence Mapping This page allow user to configure IP Precedence to Queue mapping and Queue to IP Precedence mapping.

  • Page 179: Rate Limit

    DG-GS1528HP User Manual Precedence Mapping. Figure 132 - QoS > General > IP Precedence Mapping Item Description IP Precedence IP Precedence value. Queue Queue value which IP Precedence is mapped. Queue Queue ID. IP Precedence IP Precedence value which queue is mapped.

  • Page 180: Ingress/Egress Port

    DG-GS1528HP User Manual 4.12.2.1. Ingress/Egress Port This page allow user to configure ingress port rate limit and egress port rate limit. The ingress rate limit is the number of bits per second that can be received from the ingress interface. Excess bandwidth above this limit is discarded.
  • Page 181 DG-GS1528HP User Manual Item Description Port Port name. Port ingress rate limit state Ingress (State) • Enabled: Ingress rate limit is enabled • Disabled: Ingress rate limit is disabled Port ingress rate limit value if ingress rate state is Ingress (Rate) enabled.

  • Page 182: Diagnostics

    DG-GS1528HP User Manual Item Description Port Select port list. Set checkbox to enable/disable ingress rate limit. If Ingress ingress rate limit is enabled, rate limit value need to be assigned. Set checkbox to enable/disable egress rate limit. If egress Egress rate limit is enabled, rate limit value need to be assigned.
  • Page 183 DG-GS1528HP User Manual Figure 135 - Diagnostics > Logging > Property Item Description Enable/Disable the global logging services. When the logging service is enabled, logging configuration of each State destination rule can be individually configured. If the logging service is disabled, no messages will be sent to these destinations.

  • Page 184: Remote Server

    DG-GS1528HP User Manual 4.13.1.2. Remote Server To view the Remote Server menu, navigate to Diagnostics > Logging > Remote Server. Figure 136 - Diagnostics > Logging > Remote Server Item Description Server Address The IP address of the remote logging server.

  • Page 185: Mirroring

    DG-GS1528HP User Manual • Debug: Provides detailed information about an event. 4.13.2. Mirroring To view the Mirroring menu, navigate to Diagnostics > Mirroring. Figure 137 - Diagnostics > Mirroring Item Description Session ID Select mirror session ID. Select mirror session state : port-base mirror or disable State •...
  • Page 186 DG-GS1528HP User Manual Figure 138 - Diagnostics > Mirroring > Edit Mirroring Item Description Session ID Selected mirror session ID. Select mirror session state : port-base mirror or disable State • Enabled: Enable port based mirror • Disabled: Disable mirror.

  • Page 187: Ping

    DG-GS1528HP User Manual 4.13.3. Ping To view the Ping menu, navigate to Diagnostics > Ping. Figure 139 - Diagnostics > Ping Item Description Address Type Specify the address type to “Hostname”or “IPv4”. Server Address Specify the Hostname/IPv4 address for the remote logging server.

  • Page 188: Management

    DG-GS1528HP User Manual Figure 140 - Diagnostics > Traceroute Item Description Address Type Specify the address type to “Hostname”or “IPv4”. Specify the Hostname/IPv4 address for the remote logging Server Address server. Time to Live Specify the max hops of hosts for traceroute.
  • Page 189 DG-GS1528HP User Manual Use this page to add additional users that are permitted to manage the switch or to change the passwords of existing users. To view the User Account menu, navigate to Management > User Account. Figure 141 - Management > User Account...

  • Page 190: Firmware

    DG-GS1528HP User Manual Figure 142 - Management > User Account > Add User Account Item Description Username User name of the account. Password Set password of the account. Set the same password of the account as in “Password” Confirm Password field.
  • Page 191 DG-GS1528HP User Manual Firmware > Upgrade/Backup. Figure 143 - Management > Firmware > Upgrade/Backup Item Description Firmware operations Action • Upgrade: Upgrade firmware from remote host to DUT • Backup: Backup firmware image from DUT to remote host Firmware upgrade / backup method Method •...
  • Page 192 DG-GS1528HP User Manual Figure 144 - Management > Firmware > Upgrade/Backup Item Description Firmware operations Action • Upgrade: Upgrade firmware from remote host to DUT • Backup: Backup firmware image from DUT to remote host Firmware upgrade / backup method Method •...
  • Page 193 DG-GS1528HP User Manual To view the Firmware Upgrade/Backup menu, navigate to Management > Firmware > Upgrade/Backup. Figure 145 - Management > Firmware > Upgrade/Backup Item Description Firmware operations Action • Upgrade: Upgrade firmware from remote host to DUT • Backup: Backup firmware image from DUT to remote host...
  • Page 194 DG-GS1528HP User Manual Figure 146 - Management > Firmware >Upgrade/Backup Item Description Firmware operations Action • Upgrade: Upgrade firmware from remote host to DUT • Backup: Backup firmware image from DUT to remote host Firmware upgrade / backup method Method •...

  • Page 195: Active Image

    DG-GS1528HP User Manual • IPv6: Use IPv6 as server address. Server Address Specify TFTP server address address. Filename File name saved on remote TFTP server. 4.14.2.2. Active Image This page allow user to select firmware image on next booting and show firmware information on both flash partitions.

  • Page 196: Configuration

    DG-GS1528HP User Manual Version Firmware version. Name Firmware name. Size Firmware image size. Created Firmware image created date. 4.14.3. Configuration 4.14.3.1. Upgrade / Backup To view the Configuration Upgrade/Backup menu, navigate to Management > Configuration > Upgrade/Backup. Figure 148 - Management > Configuration > Upgrade/Backup...
  • Page 197 DG-GS1528HP User Manual • TFTP: Using TFTP to upgrade/backup firmware • HTTP: Using WEB browser to upgrade/backup firmware Configuration types • Running Configuration: Merge to current running configuration file Configuration • Startup Configuration: Replace startup configuration file • Backup Configuration: Replace backup configuration file...
  • Page 198 DG-GS1528HP User Manual • Backup: Backup firmware image from DUT to remote host Configuration upgrade / backup method Method • TFTP: Using TFTP to upgrade/backup firmware • HTTP: Using WEB browser to upgrade/backup firmware Configuration types • Running Configuration: Merge to current running...
  • Page 199 DG-GS1528HP User Manual Figure 150 - Management > Configuration > Upgrade/Backup Item Description Configuration operations Action • Upgrade: Upgrade firmware from remote host to DUT • Backup: Backup firmware image from DUT to remote host Configuration upgrade / backup method Method •...
  • Page 200 DG-GS1528HP User Manual Figure 151 - Management > Configuration > Upgrade/Backup Item Description Configuration operations Action • Upgrade: Upgrade firmware from remote host to DUT • Backup: Backup firmware image from DUT to remote host Configuration upgrade / backup method Method •...

  • Page 201: Save Configuration

    DG-GS1528HP User Manual • Hostname: Use domain name as server address • IPv4: Use IPv4 as server address • IPv6: Use IPv6 as server address Server Address Specify TFTP server address address. Filename File name saved on remote TFTP server.

  • Page 202: Snmp

    DG-GS1528HP User Manual • Startup Configuration: Save file as startup configuration • Backup Configuration: Save file as backup configuration 4.14.4. SNMP 4.14.4.1. View To view the SNMP View menu, navigate to Management > SNMP > View. Figure 153 - Management > SNMP > View...
  • Page 203 DG-GS1528HP User Manual Figure 154 - Management > SNMP > Group Item Description Specify SNMP group name, and the maximum length is 30 Group characters. Specify SNMP version • SNMPv1: SNMP Version 1. Version • SNMPv2: Community-based SNMP Version 2.
  • Page 204 DG-GS1528HP User Manual included in SNMP view selected for notification. Click "Add" button to view the Add SNMP Group menu. Figure 155 - Management > SNMP > Group > Add Group Item Description Specify SNMP group name, and the maximum length is 30 Group characters.

  • Page 205: Community

    DG-GS1528HP User Manual without encryption is performed. • Authentication and Privacy: Specify that no packet authentication with encryption is performed. View Read Select read view name if Read is checked. Write Select write view name, if Write is checked. Notify Select notify view name, if Notify is checked.
  • Page 206 DG-GS1528HP User Manual SNMP access mode Access • Read-Only: Read only. • Read-Write: Read and write. Click "Add" button to view the Add Community menu. Figure 157 - Management > SNMP > Group > Add Community Item Description Community The SNMP community name. Its maximum length is 20 characters.

  • Page 207: User

    DG-GS1528HP User Manual • Read-Write: Read and write. Specify the SNMP group configured by the command snmp Group group to define the object available to the community. 4.14.4.4. User To view the User menu, navigate to Management > SNMP > User.
  • Page 208 DG-GS1528HP User Manual authentication with encryption is performed. Authentication Protocol which is available when Privilege Mode is Authentication or Authentication and Privacy. Authentication • None: No authentication required. Method • MD5: Specify the HMAC-MD5-96 authentication protocol. • SHA: Specify the HMAC-SHA-96 authentication protocol...
  • Page 209 DG-GS1528HP User Manual Item Description Specify the SNMP user name on the host that connects to User the SNMP agent. The max character is 30 characters. Group Specify the SNMP group to which the SNMP user belongs. SNMP privilege mode •...

  • Page 210: Engine Id

    DG-GS1528HP User Manual 4.14.4.5. Engine ID To view the Engine ID menu, navigate to Management > SNMP > Engine ID. Figure 160 - Management > SNMP > Engine ID Item Description Local Engine ID If checked “User Defined”, the local engine ID is configure by user, else use the default Engine ID which is made up of MAC and Enterprise ID.

  • Page 211: Trap Event

    DG-GS1528HP User Manual To view the Engine ID menu, navigate to Management > SNMP > Engine ID. Figure 161 - Management > SNMP > Engine ID Item Description Address Type Remote host address type for Hostname/IPv4/IPv6. Server Address Remote host.

  • Page 212: Notification

    DG-GS1528HP User Manual Figure 162 - Management > SNMP > Trap Event Item Description Authentication SNMP authentication failure trap, when community not match or user authentication password not match. Failure Link Up/Down Port link up or down trap. Cold Start Device reboot configure by user trap.
  • Page 213 DG-GS1528HP User Manual Item Description Server Address IP address or the hostname of the SNMP trap recipients. Server Port Recipients server UDP port number. Timeout Specify the SNMP informs timeout. Retry Specify the retry counter of the SNMP informs. Version Specify SNMP notification version •...
  • Page 214 DG-GS1528HP User Manual Click "Add" button to view the Notification menu. Figure 164 - Management > SNMP > Notification > Add Notification Item Description Address Type Notify recipients host address type. Server Address IP address or the hostname of the SNMP trap recipients.

  • Page 215: Rmon

    DG-GS1528HP User Manual • Trap: Send SNMP traps to the host. • Inform: Send SNMP informs to the host.(version 1 have no inform) SNMP community/user name for notification. If version is Community/User SNMPv3 the name is user name, else is community name.
  • Page 216 DG-GS1528HP User Manual Figure 215 - Management > RMON > Statistics Item Description Port The port for the RMON statistics. Number of octets received, including bad packets and FCS Bytes Received octets, but excluding framing bits. Drop Events Number of packets that were dropped.
  • Page 217 DG-GS1528HP User Manual ● RX error event has not been detected. Number of collisions received. If Jumbo Frames are enabled, the threshold of Jabber Frames is raised to the Collisions maximum size of Jumbo Frames. Frames of 64 Number of frames, containing 64 bytes that were Bytes received.

  • Page 218: History

    DG-GS1528HP User Manual Figure 216 - Management > RMON > Statistics 4.14.5.2. History For the RMON history, click Management > RMON > History. Figure 217 - Management > RMON > History Item Description...
  • Page 219 DG-GS1528HP User Manual Port The port for the RMON history. Interval The number of seconds for each sample. Owner The owner name of event (0~31 characters). Sample Maximum The maximum number of buckets. Sample Current The current number of buckets.
  • Page 220 DG-GS1528HP User Manual Item Description Port Specify port for the RMON history. Max Sample Specify the maximum number of buckets. Interval Specify the number of seconds for each sample. Owner Specify the owner name of event (0~31 characters). Click "View" button to view the History menu.

  • Page 221: Event

    DG-GS1528HP User Manual Packages received. Oversize Number of oversized packets (over 1518 octets) received. Packages Fragments Number of fragments (packets with less than 64 octets, excluding framing bits, but including FCS octets) received. Number of received packets that were longer than 1632 octets.
  • Page 222 DG-GS1528HP User Manual Item Description Community The SNMP community when the notification type is specified as trap Description The description for the event The notification type for the event, and the possible value are: ● None: Nothing for notification. ●...
  • Page 223 DG-GS1528HP User Manual Figure 221 - Management > RMON > Add/Edit Event Item Description Specify the notification type for the event, and the possible value are: ● None: Nothing for notification. ● Event Log: Logging the event in the RMON Event Log table Notification ●...

  • Page 224: Alarm

    DG-GS1528HP User Manual Figure 222 - Management > RMON > View Event Log Item Description Log ID The log identifier. Time The time that the event was triggered. Description The description for the event. 4.14.5.4. Alarm For the RMON Alarm menu, click Management > RMON > Alarm.
  • Page 225 DG-GS1528HP User Manual ● Octets (Received Bytes): Octets. ● Pkts (Received Packets): Number of packets. ● BroadcastPkts (Broadcast Packets Received): Broadcast packets. ● MulticastPkts (Multicast Packets Received): Multicast packets. ● CRCAlignError (CRC and Align Error): CRC alignment error. ● UndersizePkts (Undersize Packets): Number of undersized packets.
  • Page 226 DG-GS1528HP User Manual ● Pkts1024to1518Octets (Frames Greater than 1024 Bytes): Number of packets size 1024 to 1518 octets. Sampling The sampling type including: ● Absolute: The selected variable value is compared directly with the thresholds at the end of the sampling interval.
  • Page 227 DG-GS1528HP User Manual Figure 224 - Management > RMON > Add/Edit Alarm Item Description Port Specify the port for sampling Specify the counter for sampling ● Drop Event: Total number of events received in which the packets were dropped. ●...
  • Page 228 DG-GS1528HP User Manual ● Oversize Packets: Number of oversized packets. ● Fragments: Total number of packet fragment. ● Jabbers: Total number of packet jabber. ● Collisions: Collision. ● Frames of 64 Bytes: Number of packets size 64 octets. ● Frames of 65 to 127 Bytes: Number of packets size 65 to 127 octets.
  • Page 229 DG-GS1528HP User Manual Threshold Specify the threshold for firing rising event. Event Specify the index of rising event when alarm was fired. Falling Threshold Specify the threshold for firing falling event. Event Specify the index of falling event when alarm was fired.
  • Page 230 DG-GS1528HP User Manual...
