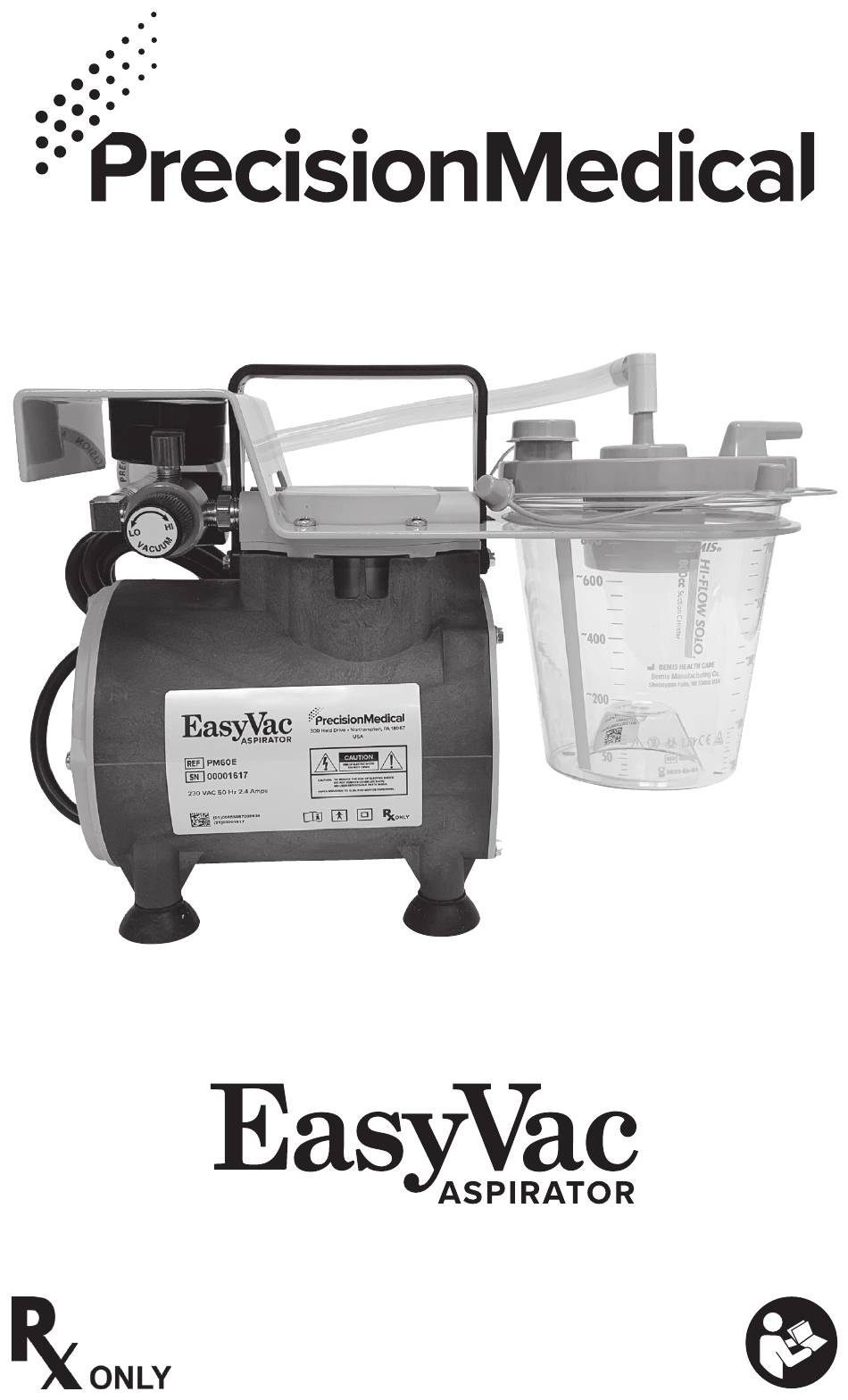

- Page 1 Model: PM60E...
-
Page 2: Receiving Inspection
RECEIVING / INSPECTION Remove the Precision Medical, Inc. Easy Vac Aspirator from packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE To supply a continuous vacuum source adequate within the stated operating vacuum range, to aspirate fluids in medical suctioning procedures by trained healthcare professionals. - Page 3 Use the Easy Vac Aspirator only for its "Intended Use" as described in this manual. DO NOT use attachments not recommended by the Precision Medical, Inc. DO NOT use when sleepy or drowsy. DO NOT use if Easy Vac Aspirator has a damaged cord or plug.
-
Page 4: Specifications
SPECIFICATIONS Operating Vacuum Range: 0-25 inHg (0-635 mmHg) Dimensions: Length: 13.25 in (33.7 cm) Width: 8.00 in (20.3 cm) Height: 9.75 in (24.8 cm) Weight: 12.6 lbs (5.7 kg) Shipping Weight: 14.5 lbs (6.6 kg) Electrical: 207 - 253 VAC, 50 Hz, 2.4 Amps Operating Temperature Range: 50°F to 104°F (10°C to 40°C) -4°F to 104°F (-20°C to 40°C) -
Page 5: Component Description

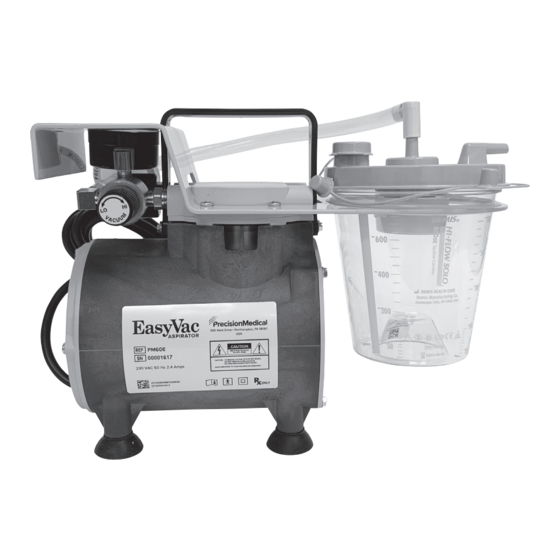

COMPONENT DESCRIPTION CAUTION If for any reason any label becomes illegible or lost, contact Precision Medical, Inc. Vacuum Patient Gauge Tubing Connection Control Knob Suction Feet On/Off Switch Inline Hydrophobic Filter Power Cord Standard 800cc Keeper Suction Canister with Float Shutoff... - Page 6 OPERATING INSTRUCTIONS CAUTION Inspect the Easy Vac Aspirator for visual damage, DO NOT USE if damaged. 1. Place Easy Vac Aspirator near a properly grounded electrical receptacle on a table, floor or other horizontal, smooth, hard surface. Allow a minimum of 4 in. (10 cm) clearance on all sides to ensure adequate air flow for cooling of Aspirator.
- Page 7 5. Plug the Aspirator into a properly grounded receptacle. 6. Turn the On/Off Switch to the “ON” position. 7. Block the patient connection on the Suction Canister and adjust the Vacuum Control Knob to the desired vacuum. To INCREASE vacuum - Turn knob CLOCKWISE To DECREASE vacuum - Turn knob COUNTERCLOCKWISE •...
-
Page 8: Cleaning & Maintenance
RETURNS Returned products require a Returned Goods Authorization (RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. -
Page 9: Disposal Instructions
DISPOSAL INSTRUCTIONS Dispose of Bio-waste products as described by your Healthcare Professional or Healthcare Facility protocol. Please Recycle WARNING If Aspirator is used for treatment of infectious disease, consult your Physician or Healthcare Professional for recommended procedures for proper disposal. REPLACEMENT PARTS Description Part #... -
Page 10: Troubleshooting
TROUBLESHOOTING If the Easy Vac Aspirator fails to function, consult the Troubleshooting Guide below. If the problem cannot be corrected, consult your Provider. Problem Probable Cause Remedy Aspirator will not 1. On/Off switch in 1. Push On/Off switch to operate “OFF”... -
Page 11: Limited Warranty And Limitation Of Liability
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. The representatives of Precision Medical, Inc. or any retailers are not authorized to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. - Page 12 300 Held Drive Northampton PA 18067, USA www.precisionmedical.com T: (+001) 610-262-6090 • F: (+001) 610-262-6080 Toll Free T: 800-272-7285 • F: 800-352-1240 ISO 13485 Certified Tell us how we are doing! www.precisionmedical.com 506958 Rev2 7/20 Printed in USA...
