Summary of Contents for Precision Medical Easy Vac PM60-3HG

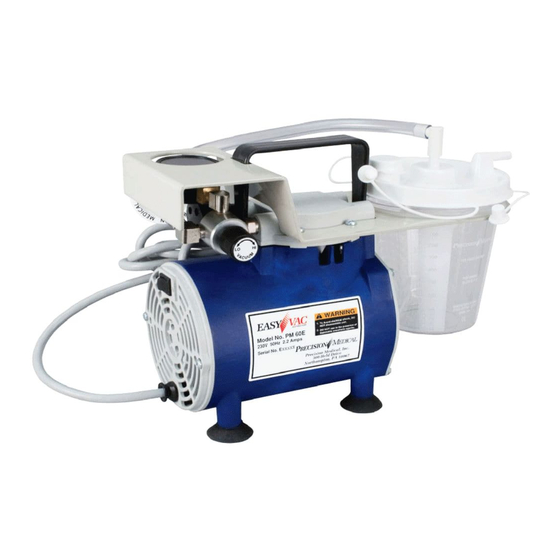

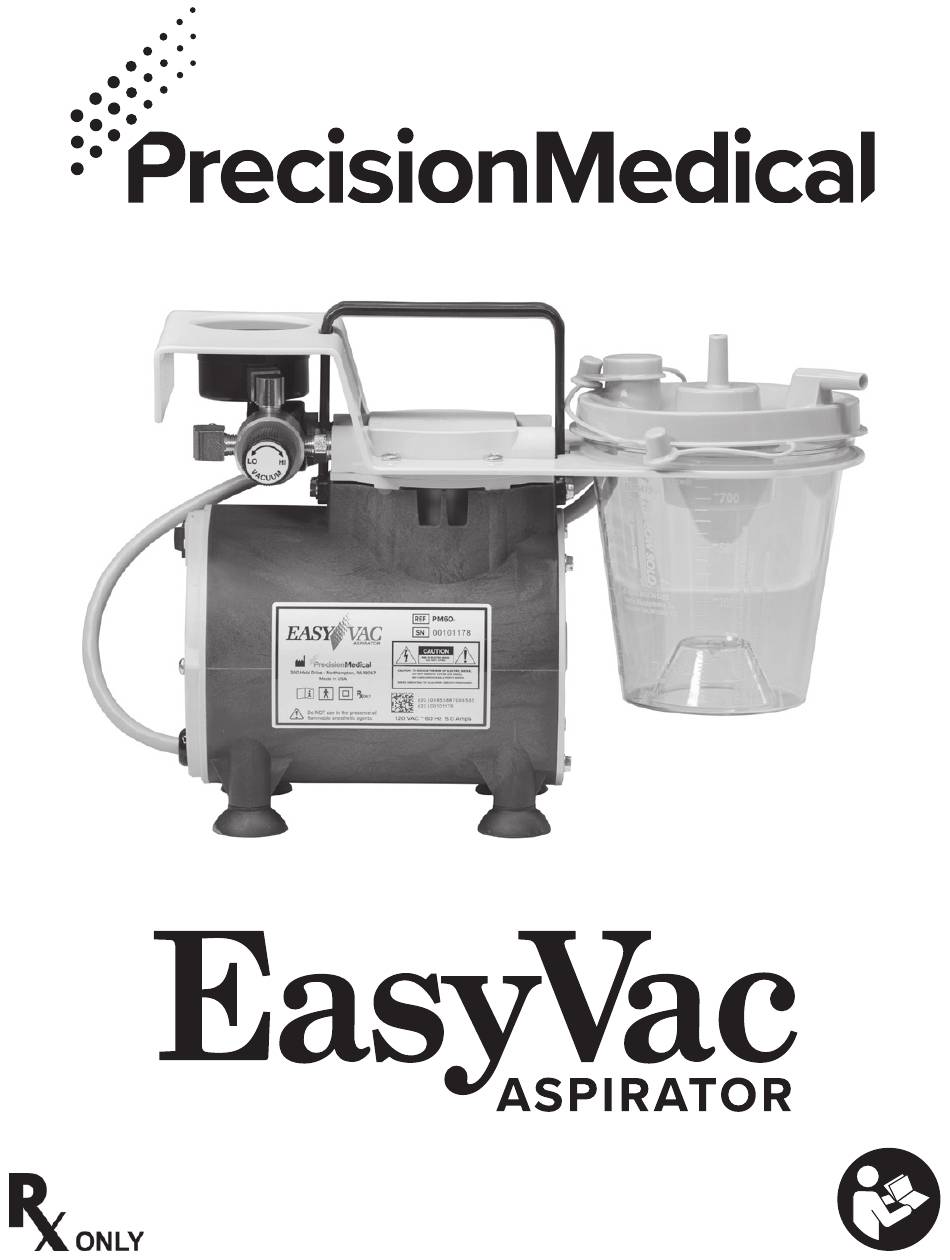

- Page 1 Model: PM60-3HG (shown)
-
Page 2: Intended Use
RECEIVING/INSPECTION Remove the Precision Medical, Inc. Easy Vac Aspirator from packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE To supply a continuous vacuum source adequate within the stated operating vacuum range, to aspirate fluids in medical suctioning procedures by trained healthcare professionals. - Page 3 Use the Easy Vac Aspirator only for its "Intended Use" as described in this manual. DO NOT use attachments not recommended by the Precision Medical, Inc. DO NOT use when sleepy or drowsy. DO NOT use if Easy Vac Aspirator has a damaged cord or plug.
-
Page 4: Specifications
SPECIFICATIONS Operating Vacuum Range: 0-25 inHg (0-635 mmHg) Dimensions: Length: 13.25 in (33.7 cm) Width: 8.00 in (20.3 cm) Height: 9.75 in (24.8 cm) Weight: 11.4 lbs (5.2 kg) Shipping Weight: 13.7 lbs (6.2 kg) Electrical: 108-132 VAC, 60 Hz, 5 Amps Operating Temperature 50°F to 104°F (10°C to 40°C) Range:... -
Page 5: Component Description
COMPONENT DESCRIPTION CAUTION If for any reason any label becomes illegible or lost, contact Precision Medical, Inc. Vacuum Gauge Control Knob Patient Tubing Connection On/Off Switch Suction Feet Inline Hydrophobic Filter Power Cord Keeper Standard 800cc Suction Canister with Float Shutoff... - Page 6 OPERATING INSTRUCTIONS CAUTION Inspect the Easy Vac Aspirator for visual damage, DO NOT USE if damaged. 1. Place Easy Vac Aspirator near electrical receptacle on a table, floor or other horizontal, smooth, hard surface. Allow a minimum of 4 in. (10 cm) clearance on all sides to ensure adequate air flow for cooling of Aspirator.
- Page 7 8. Connect one end of the Patient Suction Tubing to the port on the Canister marked Patient Tubing. 9. Connect the other end of the Patient Suction Tubing to the suction catheter and begin procedure as instructed by Provider. 10. When procedure is completed, press the On/Off Switch to the “OFF” position.
-
Page 8: Cleaning & Maintenance
RETURNS Returned products require a Returned Goods Authorization (RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet;... -
Page 9: Disposal Instructions
DISPOSAL INSTRUCTIONS Dispose of Bio-waste products as described by your Healthcare Professional or Healthcare Facility protocol. Please Recycle WARNING If Aspirator is used for treatment of infectious disease, consult your Physician or Healthcare Professional for recommended procedures for proper disposal. REPLACEMENT PARTS Description Part #... -
Page 10: Troubleshooting
TROUBLESHOOTING If the Easy Vac Aspirator fails to function, consult the Troubleshooting Guide below. If the problem cannot be corrected, consult your Provider. Problem Probable Cause Remedy Aspirator will not 1. On/Off switch in 1. Push On/Off switch to operate “OFF”... -
Page 11: Limited Warranty And Limitation Of Liability
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER WARRANTY OF QUALITY, WHETHER EXPRESS OR IMPLIED. Precision Medical, Inc. shall not under any circumstances be liable for special, incidental or consequential damages including but not limited to lost profits, lost sales, or injury to person or property. Correction of non-conformities as provided above shall constitute fulfillment of all liabilities of Precision Medical, Inc. - Page 12 300 Held Drive Northampton PA 18067, USA www.precisionmedical.com T: (+001) 610-262-6090 • F: (+001) 610-262-6080 ISO 13485 Certified Tell us how we are doing! www.precisionmedical.com 1907 Rev11 7/20 (?M) Printed in USA...
