U S E R M A N U A L

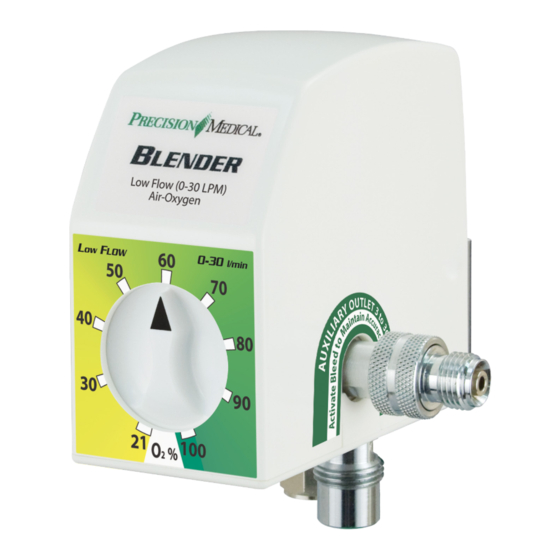

AIR-OXYGEN BLENDER
CAUTION
300 Held Drive
Northampton, PA 18067 USA
ISO 13485 Certified
(DISS and NIST Connections)
Model No. PM5200 Series
SAVE THESE INSTRUCTIONS
Federal (USA) law restricts this device to sale
by or on the order of a physician.
PM5300 Series
Tel: (+001) 610-262-6090
Fax: (+001) 610-262-6080
www.precisionmedical.com
(shown)
Advertisement
Table of Contents
Related Manuals for Precision Medical PM Series
Summary of Contents for Precision Medical PM Series
- Page 1 U S E R M A N U A L AIR-OXYGEN BLENDER (DISS and NIST Connections) Model No. PM5200 Series PM5300 Series (shown) SAVE THESE INSTRUCTIONS Federal (USA) law restricts this device to sale CAUTION by or on the order of a physician. 300 Held Drive Tel: (+001) 610-262-6090 Northampton, PA 18067 USA...
-
Page 2: Table Of Contents
CONTENTS RECEIVING / INSPECTION ............2 INTENDED USE .................2 READ ALL INSTRUCTIONS BEFORE USING ......2 EXPLANATION OF ABBREVIATIONS ........2 SAFETY INFORMATION - WARNINGS AND CAUTIONS ..3 SPECIFICATIONS ..............5 DIAGRAMS ................7 COMPONENT DESCRIPTION ...........8 PRE-USE TESTING ..............9 ALARM TEST ................10 REVERSE GAS FLOW PROCEDURE ........10 OPERATING INSTRUCTIONS ..........11 CLEANING ................11 MAINTENANCE ...............12... -
Page 3: Receiving / Inspection
RECEIVING / INSPECTION Remove the Precision Medical, Inc. Air-Oxygen Blender from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE Precision Medical, Inc. Air-Oxygen Blender dispenses a continuous and precise blend of medical air and USP oxygen via outlet ports to infant, pediatric and adult patients. -
Page 4: Safety Information - Warnings And Cautions
SAFETY INFORMATION - WARNINGS AND CAUTIONS Indicates an imminently hazardous situation DANGER which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation WARNING which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation CAUTION which, if not avoided, may result in minor or... - Page 5 WARNING An Oxygen Analyzer/Monitor must be used to verify • oxygen concentration. Accuracy of oxygen concentration will be affected if bleed • is not activated at flow settings below 15 l/min for the High Flow Blender, and 3 l/min for the Low Flow Blender. DO NOT obstruct the alarm.
-
Page 6: Specifications
SPECIFICATIONS Model PM5200 High Flow PM5300 Low Flow Primary Outlet 15 - 120 l/min 3 - 30 l/min Flow Range With both supply pressures at 50 psi (3.4 bar) with BLEED closed Auxiliary Outlet 2 - 100 l/min 0 - 30 l/min Flow Range With both supply pressures at 50 psi (3.4 bar) - Page 7 SPECIFICATIONS continued Dimensions: (without fittings) Depth: (12.5 cm) 4.9 in Width: (5.7 cm) 2.3 in Height: (10.4 cm) 4.1 in Weight: (1.04 kg) 2.29 lbs Shipping Weight: (1.34 kg) 2.95 lbs Operating Temperature Range: 59°F to 104°F (15°C to 40°C) Transport / Storage Requirements Temperature Range: -10°F to 140°F (-23°C to 60°C)
-
Page 8: Diagrams
DIAGRAMS CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. Depending on model, your fittings and/or labels may differ from these diagrams. PM5200 Model PM5300 Model BLENDER AIR-OXYGEN... -
Page 9: Component Description
COMPONENT DESCRIPTION ITEM DESCRIPTION Oxygen Concentration Dial A dial used for selecting oxygen concentrations between 21%-100%. The scale is used for reference only. This Dial does not rotate 360°. The dial starts at 21% and ends at 100%. Primary Outlet Port A male DISS oxygen fitting with check valve that delivers flow when engaged to any controlling device, such as a flowmeter. -
Page 10: Pre-Use Testing
COMPONENT DESCRIPTION continued ITEM DESCRIPTION Air Inlet Fitting A male DISS or NIST air fitting with one way valve that is used to connect an air supply hose Alarm An audible alarm that sounds due to an excessive pressure drop or deletion of either gas supply. Manifold Outlet (Optional) Manifold with 3 primary outlets. -
Page 11: Alarm Test
Primary Outlets Flow capacity: • High Flow Blender (PM 5200 Model) 15 l/min to 120 l/min • Low Flow Blender (PM 5300 Model) 3 l/min to 30 l/min Auxiliary Outlet: The auxiliary flow outlet maintains the same flow capacity accuracy as the Primary Outlets with Bleed Valve not engaged. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS CAUTION Inspect the Air-Oxygen Blender for visual damage before use, DO NOT USE if damaged. 1. Secure Blender to wall or pole mount bracket. 2. Connect Air and Oxygen supply lines from Blender to wall outlets. 3. Connect flowmeter to Blender outlet. 4. -
Page 13: Maintenance
(RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet; www.precisionmedical.com. Manuals available on our Website; www.precisionmedical.com DISPOSAL INSTRUCTIONS This device and its packaging contain no hazardous materials. -
Page 14: Troubleshooting
TROUBLESHOOTING If the Air-Oxygen Blender fails to function, consult the Troubleshooting Guide below. If problem cannot be solved by using Troubleshooting Guide, refer to the Air-Oxygen Blender Service Manual (P/N 504827) available on the Internet; www.precisionmedical.com or consult your Provider. Problem Probable Cause Remedy... -
Page 15: Limited Warranty
LIMITED WARRANTY LIMITATION OF LIABILITY Precision Medical, Inc. warrants that the Blender, (the Product), will be free of defects in workmanship and/or material for the following period: Two (2) years from shipment Should any failure to conform to this warranty appear within the applicable period, Precision Medical, Inc. -
Page 16: Declaration Of Conformity
Blender, shall be firmly anchored to prevent inadvertent movement. • The Precision Medical Blender shall not be clinically used at or within the bore of MRI scanners. IMPORTANT NOTE: This device is intended for use inside of the MRI environment (e.g., in the MR system room).
