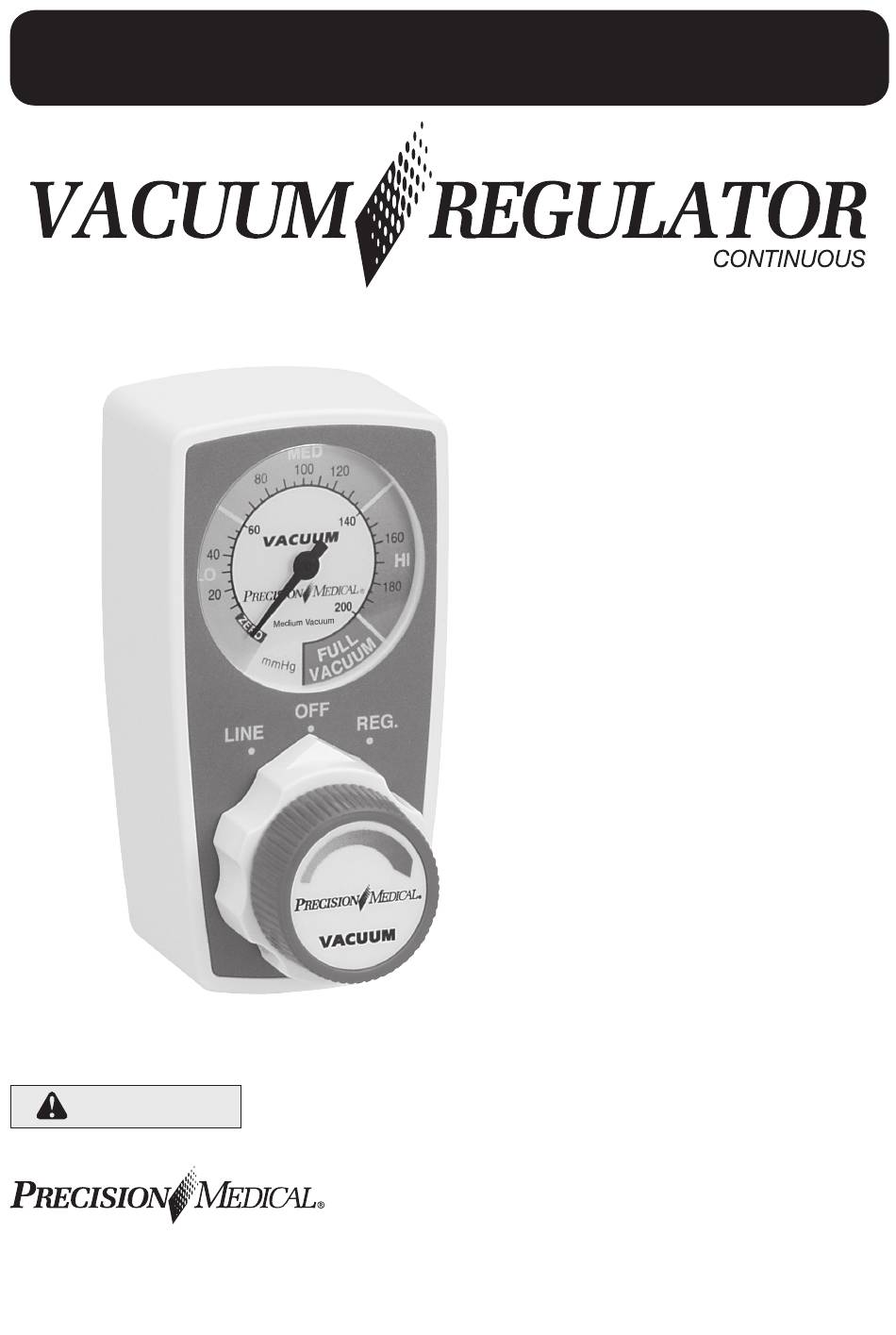

- Page 1 U S E R M A N U A L MODEL SERIES: PM3000 PM3100 (shown) PM3200 PM3500 PM3600 SAVE THESE INSTRUCTIONS Federal (USA) law restricts this device to sale by or CAUTION on the order of a physician. 300 Held Drive...
-
Page 2: Table Of Contents
CONTENTS RECEIVING / INSPECTION ..........2 INTENDED USE ..............2 READ ALL INSTRUCTIONS BEFORE USING ....2 EXPLANATION OF ABBREVIATIONS ........ 2 SAFETY INFORMATION - WARNINGS AND CAUTIONS ... 2 SPECIFICATIONS ............... 3 OPERATING INSTRUCTIONS ..........4 PARTS DESCRIPTION ............5 PARTS LIST ................. -
Page 3: Receiving / Inspection
RECEIVING / INSPECTION Remove the Precision Medical, Inc. Vacuum Regulator from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE The devices are intended to control and show the amount of vacuum from a central vacuum system used in various medical suctioning procedures. -
Page 4: Specifications
LINE - Provides maximum, continuous vacuum from the vacuum source OFF - No Vacuum REG. - (Regulated) provides an adjustable, continuous vacuum level OFF - No Vacuum PM3000, PM3200E & PM3500 Series: REG. - (Regulated) provides an adjustable, continuous vacuum level FLOW: Models Mode... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS CAUTION Inspect the Vacuum Regulator for visual damage before use, DO NOT USE if damaged. NOTE: Overflow protection should be used with the Vacuum Regulator. (i.e. Filter, Vac Trap, Canister equipped with shut off). 1. Turn the Selector Knob to the “OFF” position. 2. -
Page 6: Parts Description
PARTS DESCRIPTION CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. 3-Analog 3-Digital Selector Knob Check Valve Regulator Knob QUANTITY - 6 PLACES PARTS LIST PM3200 Models; contact Precision Medical, Inc. No. Description PM3000 PM3100 PM3500 PM3600... -
Page 7: Repair Kits
RK6600 RK6600D PM3600E / PM3600DE Vac Reg RK6600E RK6600DE Not all Repair Kits are listed above, contact Precision Medical, Inc. for availability. DISASSEMBLY INSTRUCTIONS (Reference “PARTS DESCRIPTION”) 1. Loosen the Set Screw (Item# 11) in Selector Knob. 2. Pull the Control Knob Assembly (Item# 12) away from case. (The Regulator Module (Item# 10) is threaded onto the Control Knob Assembly.) -
Page 8: Vacuum Regulator Cleaning Illustration
Vacuum Regulator and will void the warranty. • If Vacuum Regulator becomes internally contaminated, warranty is voided, DO NOT send back to Precision Medical, Inc. for repair. Follow your facilities contaminated equipment protocol. • Be sure all connections are tight and leak free. -
Page 9: Cleaning / Decontamination
Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet, www.precisionmedical.com. Manuals available on our Website; www.precisionmedical.com. -
Page 10: Disposal Instructions
DISPOSAL INSTRUCTIONS Dispose of the Vacuum Regulator in accordance with the local regulations. Please Recycle WARNING Product should be cleaned before being disposed of. Potential for Biohazard. TROUBLESHOOTING If the Vacuum Regulator fails to function, consult the Troubleshooting Table below. If problem cannot be solved, consult your Provider. Problem Probable Cause Remedy... -
Page 11: Limited Warranty
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. The representative of Precision Medical, Inc. or any retailers are not authorized to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. -
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY Precision Medical, Inc 300 Held Drive Northampton PA 18067, USA Emergo Europe (European Office) 0473 Molenstraat 15 2513 BH, The Hague The Netherlands Phone: +31 (0) 70.345.8570 Fax: +31 (0) 70.346.7299 Vacuum Regulators: PM3000E, PM3000DE, PM3000DEHV, PM3100E,...
