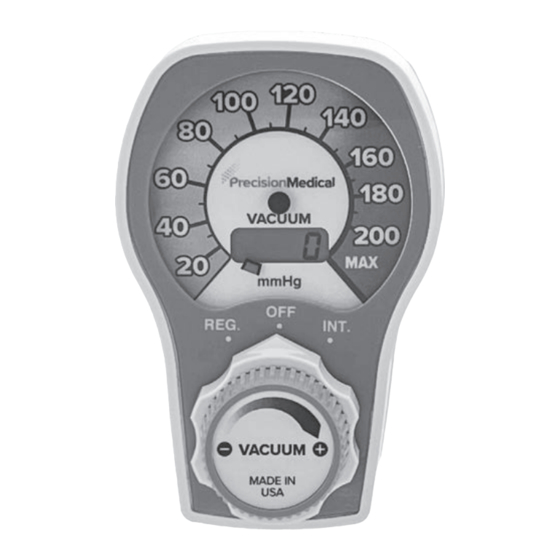

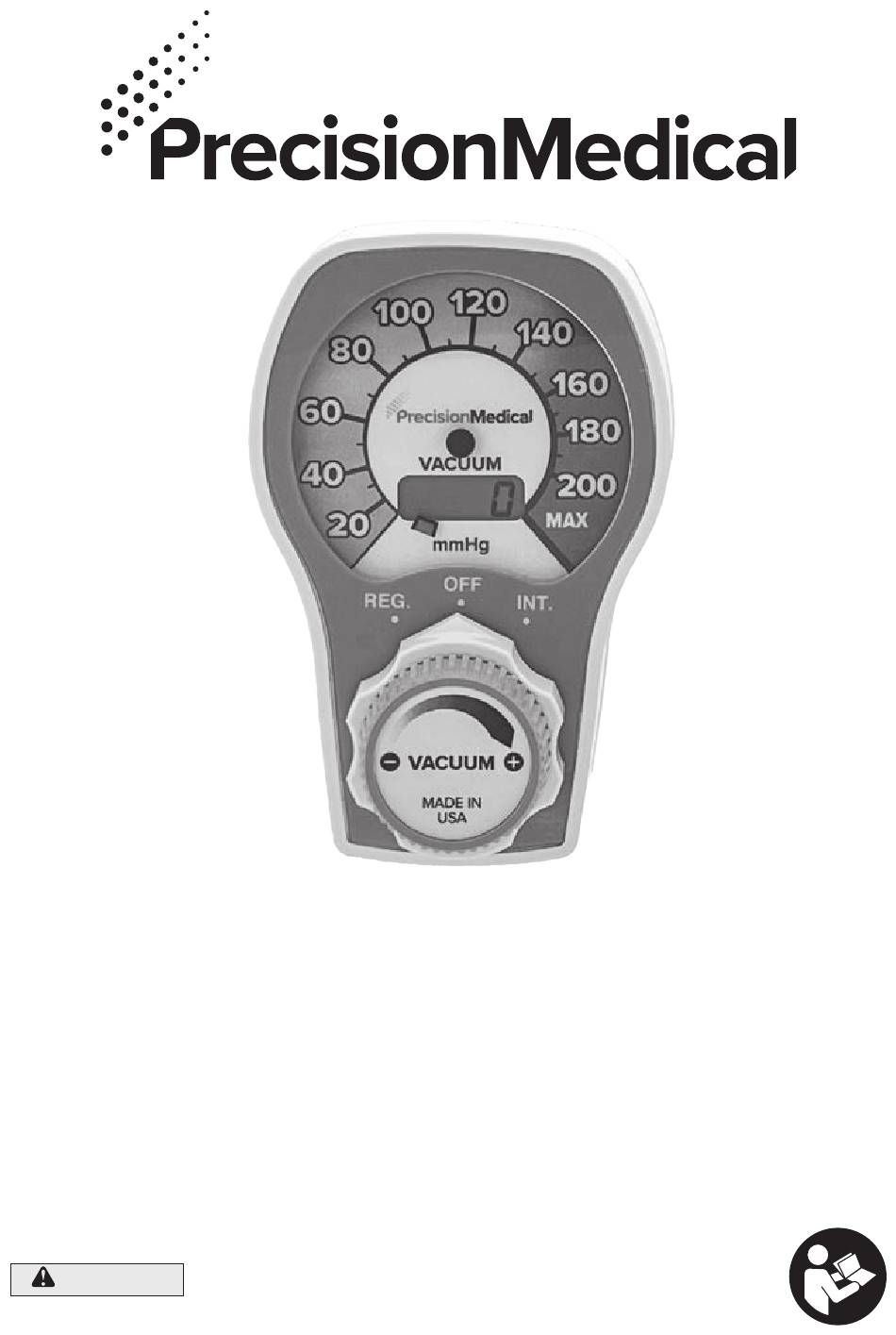

- Page 1 LARGE GUAGE VacuumRegulator CONTINUOUS & CONTINUOUS INTERMITTENT Model Series: PMX3000, PMX3100, PMX3300, PMX3400, PMX3500, PMX3600 Federal (USA) law restricts this CAUTION device to sale by or on the order of a physician.
-
Page 2: Table Of Contents
Read All Instructions Before Using ......................3 Explanation of Abbreviations ........................3 Safety Information - Warnings and Cautions...................3 Specifications ..............................4-5 Operating Instructions ..........................6 Continuous Series (PMX3000, PMX3100, PMX3500, & PMX3600) Parts Description ..........................8 Parts List ..............................8 Repair Kits ...............................9 Disassembly Instructions ........................9 Assembly Instructions .........................9... -
Page 3: Receiving/Inspection
RECEIVING / INSPECTION Remove the Precision Medical, Inc. Large Gauge Vacuum Regulator from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider. INTENDED USE The devices are intended to control and show the amount of vacuum from a central vacuum system used in various medical suctioning procedures. -
Page 4: Specifications
SPECIFICATIONS GAUGE RANGE: *Counterclockwise direction PMX3000: 0-200 mmHg - Full Vacuum *PMX3300EHV: 0-300 mmHg (0-40kPa) *PMX3000E: 0-200 mmHg (0-26 kPa) PMX3300HV: 0-300 mmHg - Full Vacuum PMX3000HV: 0-300 mmHg - Full Vacuum PMX3400: 0-150 mmHg PMX3100: 0-200 mmHg - Full Vacuum... - Page 5 FLOW RATES: 50 l/min *PMX3000, PMX3100, & PMX3500: LINE 55 l/min 71 l/min **PMX3600 SERIES: LINE 82 l/min 50 l/min *PMX3300: 10 l/min 50 l/min *PMX3400: 3 l/min MAXIMUM FLOW IS OBTAINED WITH A VACUUM SOURCE OF 21” Hg (71.1 kPa)
-
Page 6: Operating Instructions
It is the user’s responsibility to provide a collection container with overflow protection or a fluid trap and either a hydrophobic or micro-bacterial filter. Precision Medical provides these accessories separately. The Digital / Analog Dual Gauges operate independently; if the digital gauge fails, the analog gauge will still function and vice versa. - Page 7 WARNING When turning the Large Gauge Vacuum Regulator to “REG.” from “LINE” or “OFF”, the vacuum level will return to its previously regulated setting. Vacuum may be set at improper level fro procedure. PMX3300 & PMX3400 ONLY: When turning the Large Gauge Vacuum Regulator to “REG.” or “INT.”...
-
Page 8: Continuous Series (Pmx3000, Pmx3100, Pmx3500, & Pmx3600)
CONTINUOUS SERIES (PMX3000, PMX3100, PMX3500 & PMX3600) CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. PARTS DESCRIPTION Analog Digital Selector Knob Regulator 2 6X Knob PARTS LIST No. Description PMX3000 PMX3100 PMX3500 PMX3600 Housing Assembly 1561XL... -
Page 9: Repair Kits
DISASSEMBLY INSTRUCTIONS PMX3000, PMX3100, PMX3500 & PMX3600 Series (Reference “PARTS DESCRIPTION”) 1. Loosen the Set Screw (Item# 11) in Selector Knob. 2. Pull the Control Knob Assembly (Item# 12) away from case. (The Regulator Module (Item# 10) is threaded onto the Control Knob Assembly.) 3. -
Page 10: Continuous Intermittent Series (Pmx3300 & Pmx3400)
CONTINUOUS INTERMITTENT SERIES (PMX3300 & PMX3400) CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc PARTS DESCRIPTION Analog Digital Selector Knob Regulator 2 6X Knob PARTS LIST No. Description PMX3300 PMX3400 Housing Assembly 502102XL Screw 503956 Analog Gauge Assembly... -
Page 11: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS PMX3300 & PMX3400 Series (Reference “PARTS DESCRIPTION”) 1. Loosen the Set Screw (Item # 11) in Selector Knob. 2. Pull the Control Knob Assembly (Item # 12) away from case. (The Regulator Module (Item # 10) is threaded onto the Control Knob Assembly.) 3. -
Page 12: Large Gauge Vacuum Regulator Cleaning Illustration
If Large Gauge Vacuum Regulator becomes internally contaminated, warranty is voided, DO NOT send back to Precision Medical, Inc. for repair. Follow your facilities contaminated equipment protocol. This Large Gauge Vacuum Regulator contains magnetic, ferrous material that may affect the results of an MR. -
Page 13: Exterior Cleaning
Returned products require a Returned Goods Authorization (RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the internet: www.precisionmedical.com. -
Page 14: Disposal Instructions
DISPOSAL INSTRUCTIONS Dispose of the Large Gauge Vacuum Regulators in accordance with local regulations Please Recycle WARNING Bio-hazardous devices should be disposed of properly. TROUBLESHOOTING If the Preset Large Gauge Vacuum Regulator fails to function, consult the Troubleshooting Table below. If problem cannot be solved, consult your Provider. Problem Probable Cause Remedy... -
Page 15: Limited Warranty
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. The representative of Precision Medical, Inc. or any retailers are not authorized to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. Thus, this writing is a final, complete and exclusive statement of the terms of that contract. - Page 16 300 Held Drive Northampton PA 18067, USA www.precisionmedical.com T: (+001) 610-262-6090 • F: (+001) 610-262-6080 ISO 13485 Certified 1949XL Rev0 Printed in USA...
