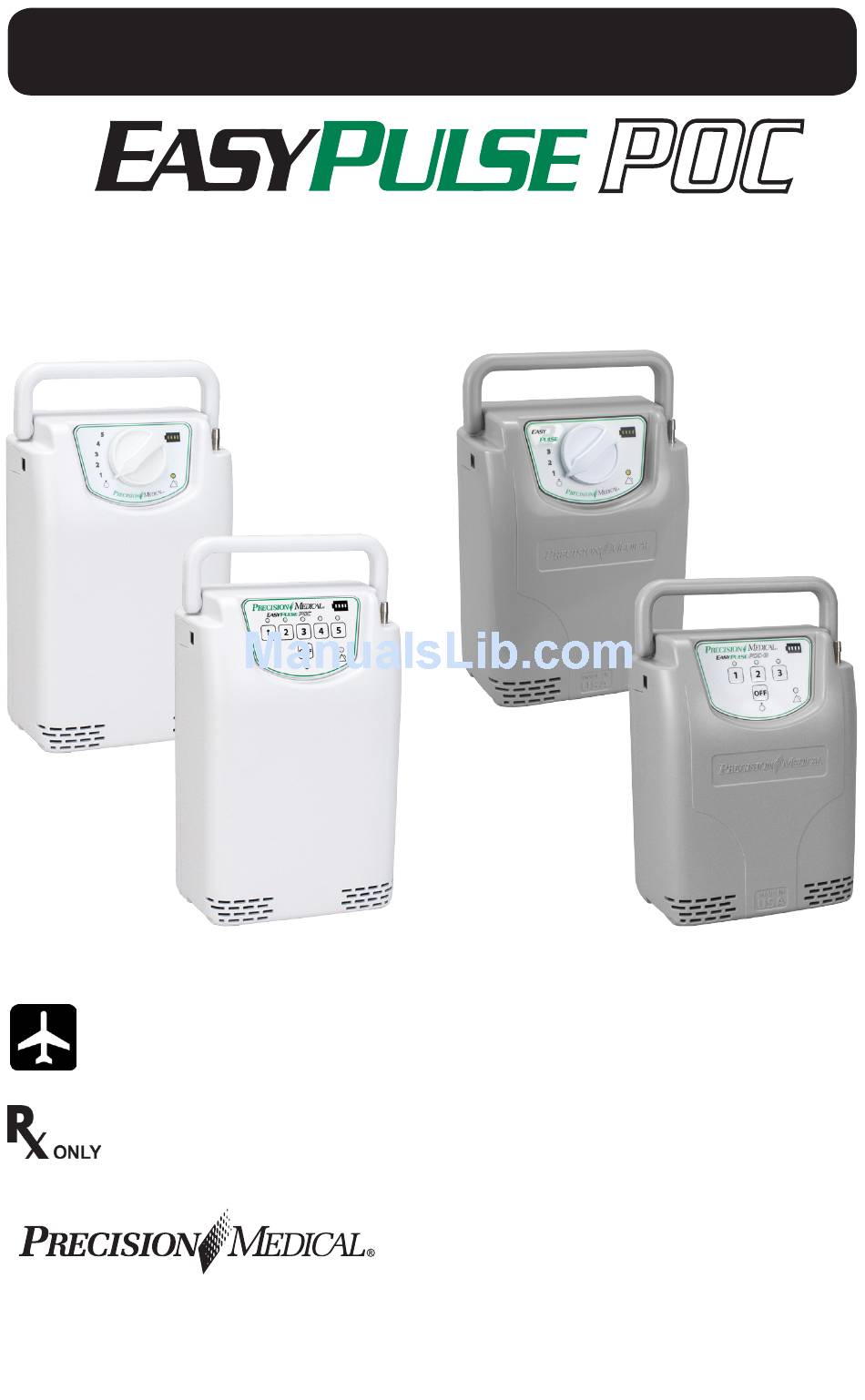

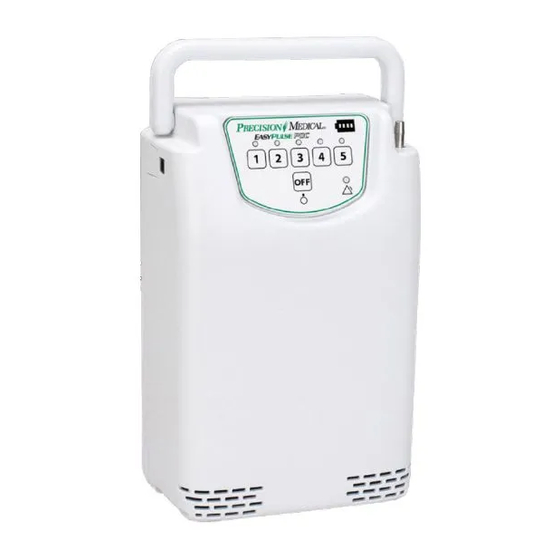

U S E R M A N U A L
PM4150
Federal (USA) law restricts this device to sale by or
on the order of a physician.
300 Held Drive
Northampton, PA 18067 USA
ISO 13485 Certified
PORTABLE OXYGEN CONCENTRATOR
PM4150P
SAVE THESE INSTRUCTIONS
Model: PM4100 Series
PM4130
Tel: (+001) 610-262-6090
Fax: (+001) 610-262-6080
www.precisionmedical.com
PM4130P
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Medical Easy Pulse POC PM4100 Series
Summary of Contents for Precision Medical Easy Pulse POC PM4100 Series
- Page 1 U S E R M A N U A L PORTABLE OXYGEN CONCENTRATOR Model: PM4100 Series PM4130 PM4150 PM4150P PM4130P SAVE THESE INSTRUCTIONS Federal (USA) law restricts this device to sale by or on the order of a physician. 300 Held Drive Tel: (+001) 610-262-6090 Northampton, PA 18067 USA Fax: (+001) 610-262-6080...
-
Page 2: Table Of Contents
NOT USE and contact your Provider. INTENDED USE The Precision Medical EasyPulse POC is intended to provide supplemental oxygen to persons requiring oxygen therapy. The Precision Medical POC can be used in a home, institution, vehicle and for transportable use. READ ALL INSTRUCTIONS BEFORE USING This manual is provided for your safety and to prevent damage to the POC. -
Page 3: Explanation Of Abbreviations
EXPLANATION OF ABBREVIATIONS mL/min Milliliters Per Minute Light Emitting Diode Portable Oxygen Concentrator Indicator light Colors and Meaning Warning - Immediate response by the OPERATOR is required Amber Caution - Prompt response by the OPERATOR is required Green Ready for use SAFETY INFORMATION - WARNINGS AND CAUTIONS Indicates an imminently hazardous situation which, if DANGER... - Page 4 SAFETY INFORMATION - WARNINGS AND CAUTIONS (continued) General Warning Sign SMOKING DO NOT Follow Instructions for Use Disassemble NO Oil or General Mandatory Action Sign Grease The Oxygen Concentrator, gas pathways, components and accessories do not contain any natural rubber latex. Protected from touch by fingers and objects greater than 12 millimeters.
- Page 5 WARNING • Use the POC for its “Intended Use” as described in this manual. • This POC contains magnetic, ferrous material that may affect the results of an MRI. • In the event of an equipment alarm or if you are experiencing any signs of discomfort, connect to another source of oxygen and contact your Provider and / or Health Care Professional immediately.
- Page 6 WARNING (continued) • Use only spare parts recommended by Precision Medical to ensure proper function and to avoid the risk of fire and burns. • Use of this device at an altitude above or below sea level to 14,000 ft (4267 m) or outside a temperature of 41°F to 104°F (5°C to 40°C)
-
Page 7: Specifications
ATPD (ambient temperature and pressure, dry). • Precision Medical Inc, and your equipment provider are accountable for ensuring the compatibility of the oxygen concentrator and all of the parts or accessories used to connect to the patient before use. - Page 8 SPECIFICATIONS (continued) Oxygen Minute Volume*: Setting 1: 240 +/-15% mL/min Setting 2: 380 +/-15% mL/min Setting 3: 520 +/-15% mL/min PM4150 only Setting 4: 660 +/-15% mL/min Setting 5: 780 +/-15% mL/min Oxygen Concentration: 87% to 95% on all settings Mode of Delivery: Pulsed Dose only Trigger Sensitivity:...
-
Page 9: Component Description
COMPONENT DESCRIPTION CAUTION Missing or illegible labels must be replaced, contact Precision Medical, Inc. Setting Knob Handle PM4130P Setting Panel PM4150P Setting Panel Inlet Filter Power Input Oxygen Outlet Jack Fitting Internal Battery Level Indicator Setting Indicator Alarm Indicator Product... -
Page 10: Using The Easypulse Poc
The Fire Stop Check Valve should be located as close to the patient as reasonably practicable. Fire Stop Check Valve - Precision Medical Part # 507706 2” Tubing Connector - Precision Medical Part # 507707 Portable Oxygen Concentrator... -
Page 11: Operating Position
Operating Position The POC can be operated in an upright position with or without the carry bag as shown below. PM4130 shown The POC can be operated lying on its back ONLY while in the carry bag as shown below. Using the Carry Bag The carry bag is intended to make the POC easier to transport, prevent movement due to vibration and protect the device from minor mishaps. - Page 12 Control panel and clear window properly aligned PM4130 shown Exhaust vents and mesh area properly aligned Proper carrying position WARNING The mesh on the carry bag must be aligned with the • exhaust vents on the POC to keep the POC cool and operating properly.
-
Page 13: Power Supply
POWER SUPPLY To prevent damage to the device, use only Precision Medical approved external power sources. AC Power Adapter: The AC power adapter connects the POC to a 100-240 VAC, 50/60 Hz wall outlet. The power adapter converts AC voltage to DC voltage in order to power the POC. - Page 14 DC Power Adapter: The DC power adapter connects the POC to an automobile’s 12 VDC outlet. The DC adapter will power the POC and simultaneously charge the internal battery. DC Plug Auto Accessory Plug Connection: To connect the DC Power Adapter to the POC, insert the DC plug connector into the power input jack on the POC and insert the other end into your automobile’s 12 V Accessory Jack.
-
Page 15: Accessories / Replacement Parts
Use of accessories or replacement parts not listed in this instruction may cause adverse effects to basic safety or essential performance of the Oxygen Concentrator. Other Power Cord / Plug combination for the AC Power Adapter available through Precision Medical, Inc. ONLY. Portable Oxygen Concentrator... -
Page 16: Alarm / Indicators / Troubleshooting Pm4130 And Pm4150
ALARM / INDICATORS / TROUBLESHOOTING PM4130 AND PM4150 Green Ready for use Caution - Prompt response by the OPERATOR is required Amber Warning - Immediate response by the OPERATOR is required The Audible Alarm and LED Indicators are listed in the chart. Visual Indicator/ Audible Probable Cause... -
Page 17: Pm4150
ALARM / INDICATORS / TROUBLESHOOTING PM4150 Visual Indicator/ Audible Alarm Probable Cause Remedy Problem Red alarm indicator Repetitive beep Internal battery is 1. Turn off the POC and disconnect any is illuminated, unit outside its operating power supplies is not running and temperature range 2. -
Page 18: Maintenance / Cleaning
RETURNS Returned products require a Returned Goods Authorization (RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet, www.precisionmedical.com. -
Page 19: Limited Warranty
(3) years from date of shipment Battery 180 days from date of shipment Precision Medical, Inc. is NOT responsible for normal wear and tear, or any neglect or abuse of the product. Precision Medical, Inc. is NOT responsible for the shipping cost of the repair. -
Page 20: Declaration Of Conformity
31 August 2012 to Date of Expiry Manufacture Representative: Quality Manager Position: Quality Systems/ISO Representative Date of Issue: 31 August 2012 For technical specifications call Precision Medical or visit wwwprecisionmedical.com Tell us how we are doing! Visit us at www.precisionmedical.com 506640rev13 10/15 (??) Printed in USA...
