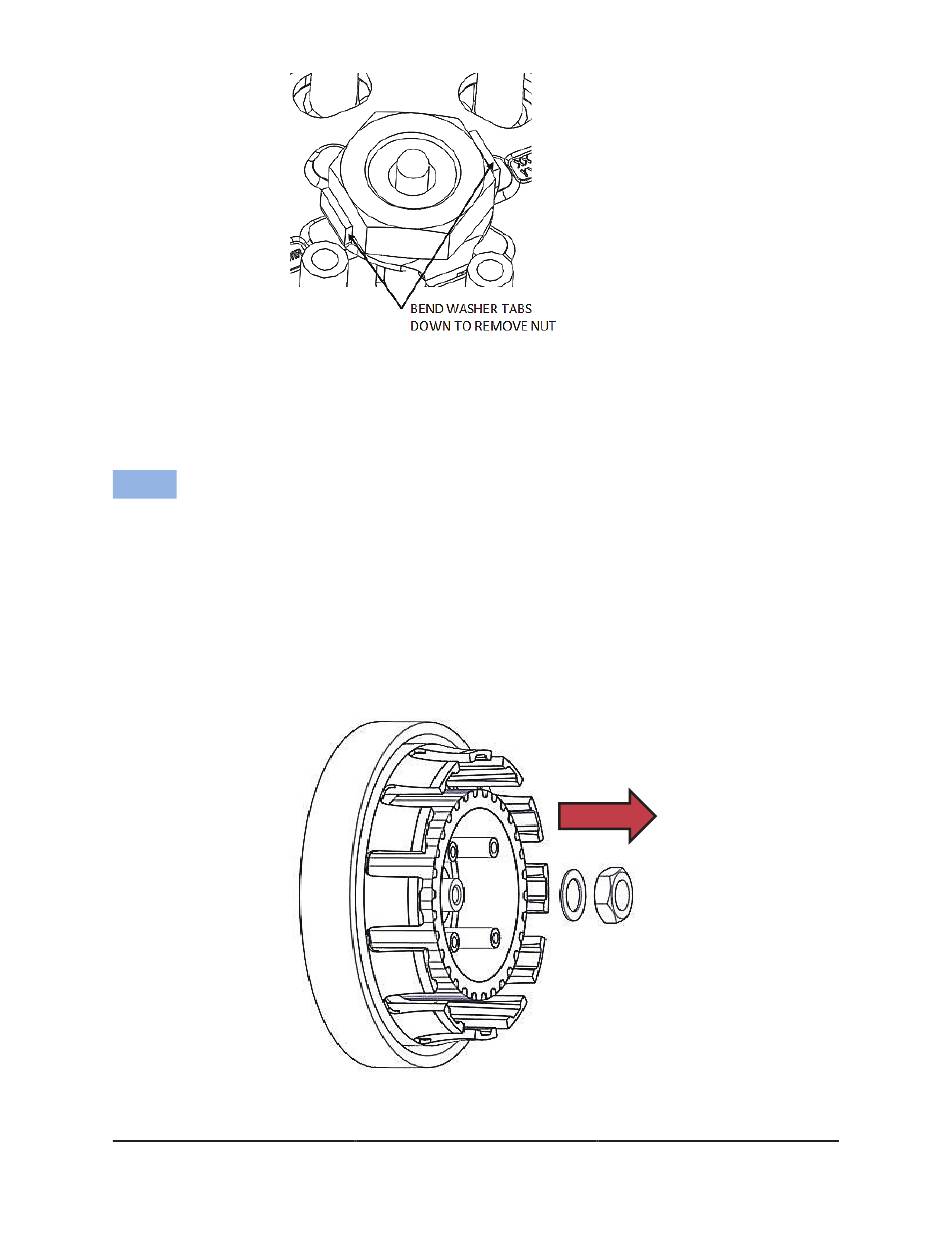

8. Use a hammer and a large screwdriver or chisel to bend
down the edges of the washer tab until it clears the clutch nut.
9. Remove the center clutch nut with an impact wrench or
breaker bar, and a socket. Set aside. The OE clutch nut will
be reused.
Note: Placing the bike in the highest gear and holding the rear
wheel by applying the rear brake keeps the shaft from rotating
when removing the nut.
10. Remove the lock washer located under the center clutch
nut. The OE lock washer will be replaced with a Rekluse tab
lock washer.
