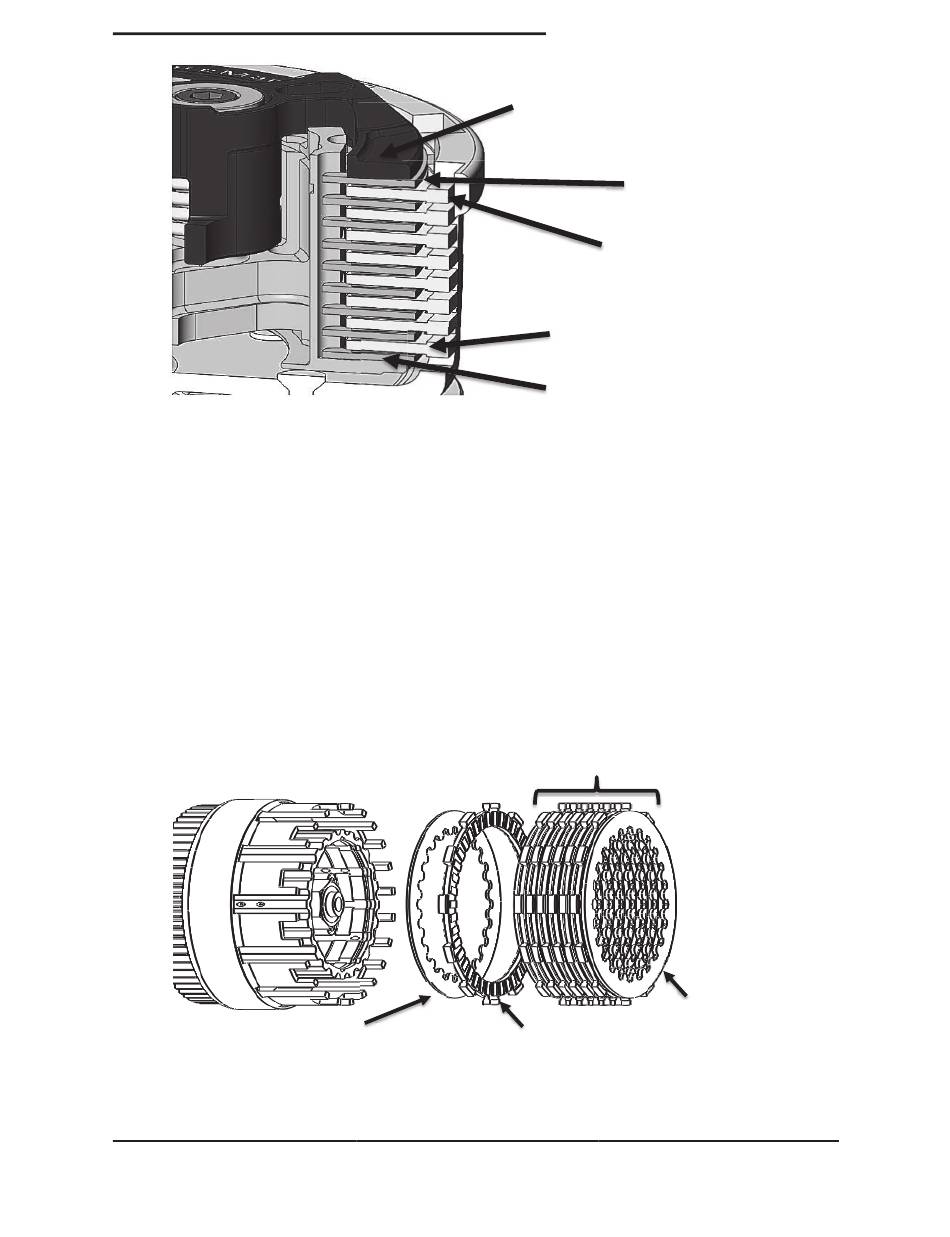

Clutch Pack Cross-section Overview
2. Install the clutch pack starting with a .048in (1.2mm) steel
drive plate, then install one of the provided friction disks.
Then install 1 .060in (1.52mm) drive plate.
3. Continue to alternate friction disks and .060in (1.52mm) steel
drive plates.
4. The last plate installed will be a .048in (1.2mm) drive plate
Steel drive plate – Install 1
Pg. 12
Alternate steel drive plates with friction disks
st
Friction disk
Doc ID: 191-7008001A
Doc Rev: 080720
Pressure plate
Steel drive plate
.048in (1.2mm)
OE style friction
disk
OE style friction
disk
Steel drive plate
.048in (1.2mm)
Steel drive plate
