IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
A.
Top
1 pc.
G.
Stretcher
2 pcs.
H.
Front Rail
1 pc.
I.
Base
1 pc.
Cam Lock Screw
24 pcs. (+2 extra)
Cam Lock
24 pcs. (+6 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5523 61

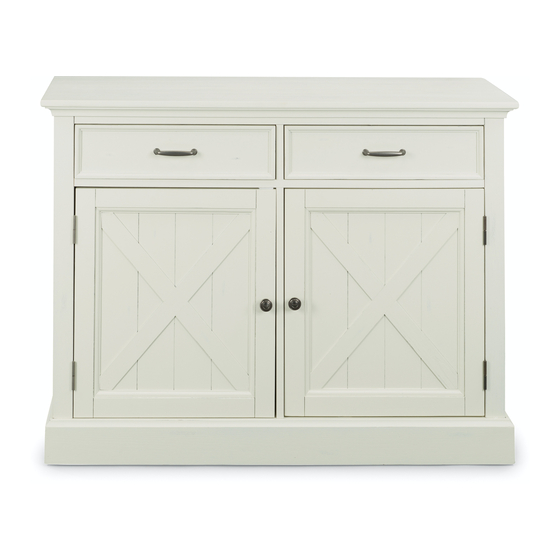

Buffet
B.
Side Panel
1 pc.
J.
Shelf
4 pcs.
K.
Door
1 pc.
M3x15
Wood Screw (short)
16 pcs. (+1 extra)
M3x25
Wood Screw (long)
16 pcs. (+1 extra)
C.
Side Panel
1 pc.
D.
Middle Panel
1 pc.
L.
Door
1 pc.
M3x16
Wood Screw
Magnet
for Back Panel
2 pcs.
12 pcs. (+1 extra)
Adjustable Pin
Pull Handle
16 pcs. (+1 extra)
2 pcs.
888-680-7460, 877-831-0319
E.
F.
Back Panel
Upright
3 pcs.
2 pcs.
M.
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
Knob
2 pcs.
M4x25
Machine Screw
6 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5523 61
Summary of Contents for Home Styles 88 5523 61
- Page 1 Machine Screw 24 pcs. (+6 extra) 16 pcs. (+1 extra) 16 pcs. (+1 extra) 2 pcs. 6 pcs. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/6 STEP 3 Attach Magnets at the pre-drilled holes of Front Rail (H) with Wood Screws (short) (See Figure 3) Magnet Attach Middle Panels (D), Front Rail (H) and Side Panel (C) to unit with Cam Locks. Wood Screw (short) Figure 3 Cam Lock Screw STEP 4...
- Page 4 Assembly Instructions 4/6 Drawer (M) STEP 5 Attach Drawer Front (M1) and Drawer Back (M2) Roller at back to Drawer Side (M3) with Wood Screws (long). Attach Drawer Side (M4) to unit with Wood Screws (long). STEP 6 Slide Drawer Bottom (M5) into the grooves of Drawer Sides (M3) and (M4) until it meets Drawer Front (M1).
- Page 5 Assembly Instructions 5/6 STEP 8 Level the unit by adjusting the adjustable levelers on the bottom of legs. (See Figure 4) Insert Adjustable Pins into middle panel and side panels at the desired level. (See Figure 5) Slide Drawers (M) and Shelves (J) into position. Attach Knobs to Doors (K) and (L) with Machine Screws.
- Page 6 Assembly Instructions 6/6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 10 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location.
- Page 7 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
