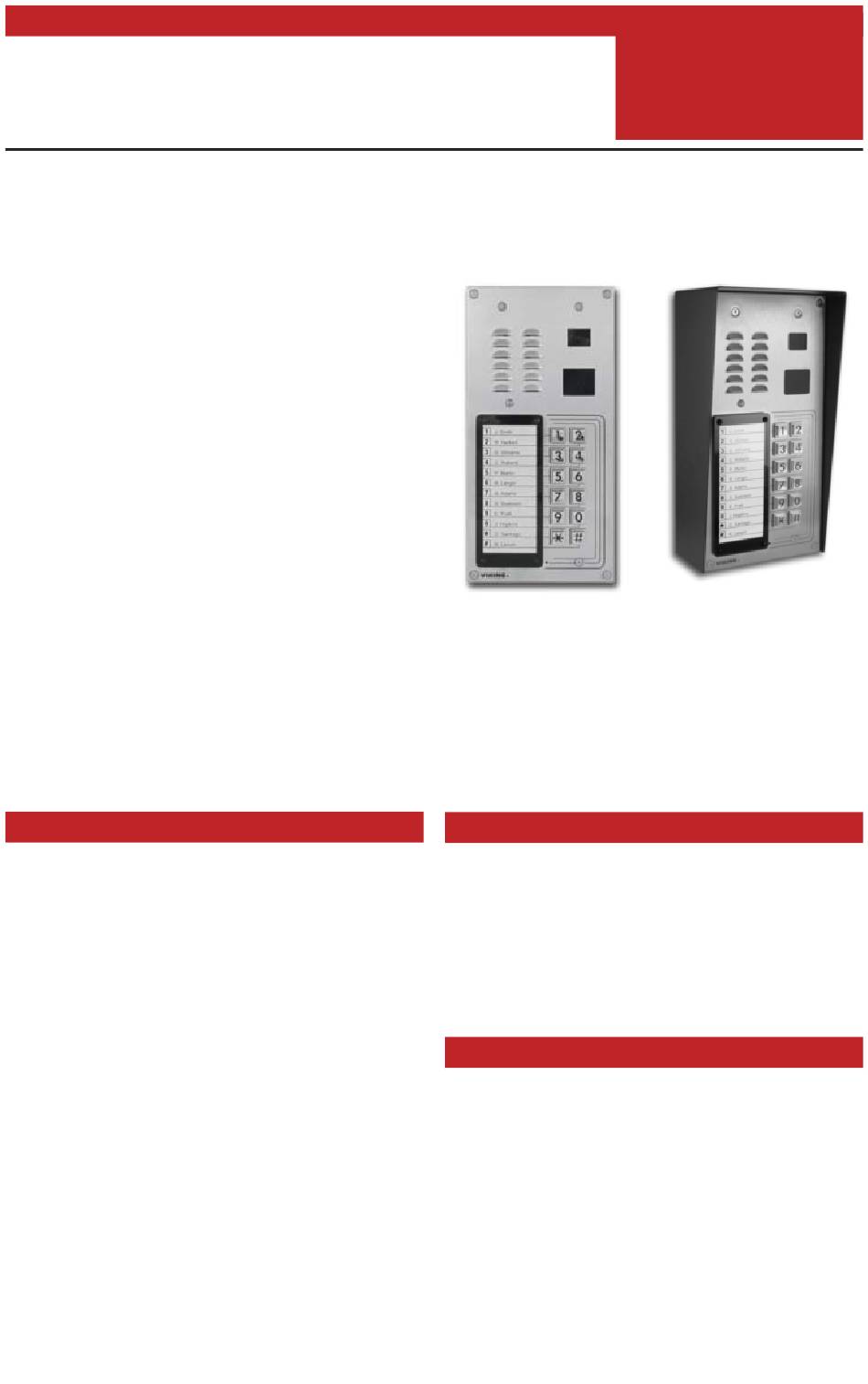

Viking K-1275 Series Product Manual

Designed, Manufactured and Supported in the USA
VIKING
S E C U R I T Y & C O M M U N I C A T I O N S O L U T I O N S
12 Button Apartment Entry Phone with Built-In
Door Strike Relay, Card Reader & Camera
The K-1275 Entry Phone is a two-way, handsfree
telephone with 12 buttons for calling individual
residences in an apartment building with an
integrated 125 KHz Proximity Card Reader. It also
has a built-in color CCTV video camera. The
rugged stainless steel faceplate has a printed
directory housed in a waterproof, scratch-resistant
lens. Each button is beside the tenants name in the
directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as
pressing a single button. The K-1275 has a built in
speed dialer that can handle up to 12 primary
phone numbers, each with 22 digits. If there is no
answer at the first number, a second number can
be called automatically. Once the tenant answers
their phone, a single touch tone command can
activate the door strike relay. For "no phone line"
applications, the K-1275 is compatible with the
C-3000 no CO (phone line) controller.
The K-1275-EWP shares all of the features of the
K-1275 in addition to Enhanced Weather
Protection (EWP) for outdoor installations where
the unit is exposed
Features
• Built-in high resolution analog NTSC color video camera with wide
viewing angle, tilt/swivel adjustments and wide operating
temperature: -40°F to 140°F
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep
card read confirmation, and EWP board protection
• Compatible with the following Viking Proximity Cards and Fobs: PRX-
C, PRX-C-ISO, PRX-FOB and LRT-4 (DOD# 198 & 226)
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel
faceplate with permanent laser etched graphics, heavy duty metal
keypad and T-10 Torx security mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel
faceplate and screws. Internally sealed keypad. Mylar speaker. Self-
draining mic mount. Faceplate, keypad, mic and speaker gaskets.
• Designed to meet IP66 Ingress Protection Rating (see DOD 859)
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 alternate number positions (22 digits each)
• One button operation (no call button)
• Hang up on CPC, busy, silence, time-out or dial tone
• Touch tone restriction from microphone
• Integral relays for camera control and door strike
• Works with C-1000B for increased security
• Works with C-3000 for "No CO" (phone line) operation
• 50 keyless entry codes
• Postal lock input
• Optional VE-5x10 surface mount box, sold separately (DOD 424)
PRODUCT MANUAL
to precipitation
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
condensation. EWP products feature foam rubber
gaskets and boots, sealed connections, gel-filled
butt connectors, as well as urethane or thermal
plastic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy
on-site programming.
or
• Small apartment buildings
• Professional buildings
• Gated communities
www.vikingelectronics.com
Information: (715) 386-8861
Power: 12 to 24 Volts AC or DC, 12VDC adapter provided
Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum
Note: To assure operation during a power outage, a UPS
should be used.
Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Shipping weight: 2.2 kg (4.8 lbs.)
Standard K-1275 Environment: -34° C to 65° C (-30° F
to 150° F) with 5% to 95% non-condensing humidity
K-1275-EWP Environment: -34° C to 65° C (-30° F to
150° F) with up to 100% condensing humidity
Relay Contact Rating:
Door Strike: 5A @ 30VDC/250VAC maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (19) gel-filled butt connectors (3M
Scotchlok UR2)
K-1275 Series
Entry Phones with Keypads,
Proximity Card Readers
and Color Camera
July 5, 2017

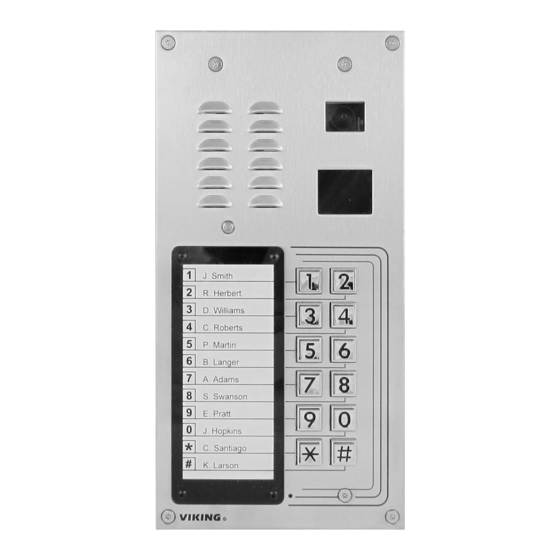

(shown in optional
VE-5x10-SS, not included)
Applications
Specifications
