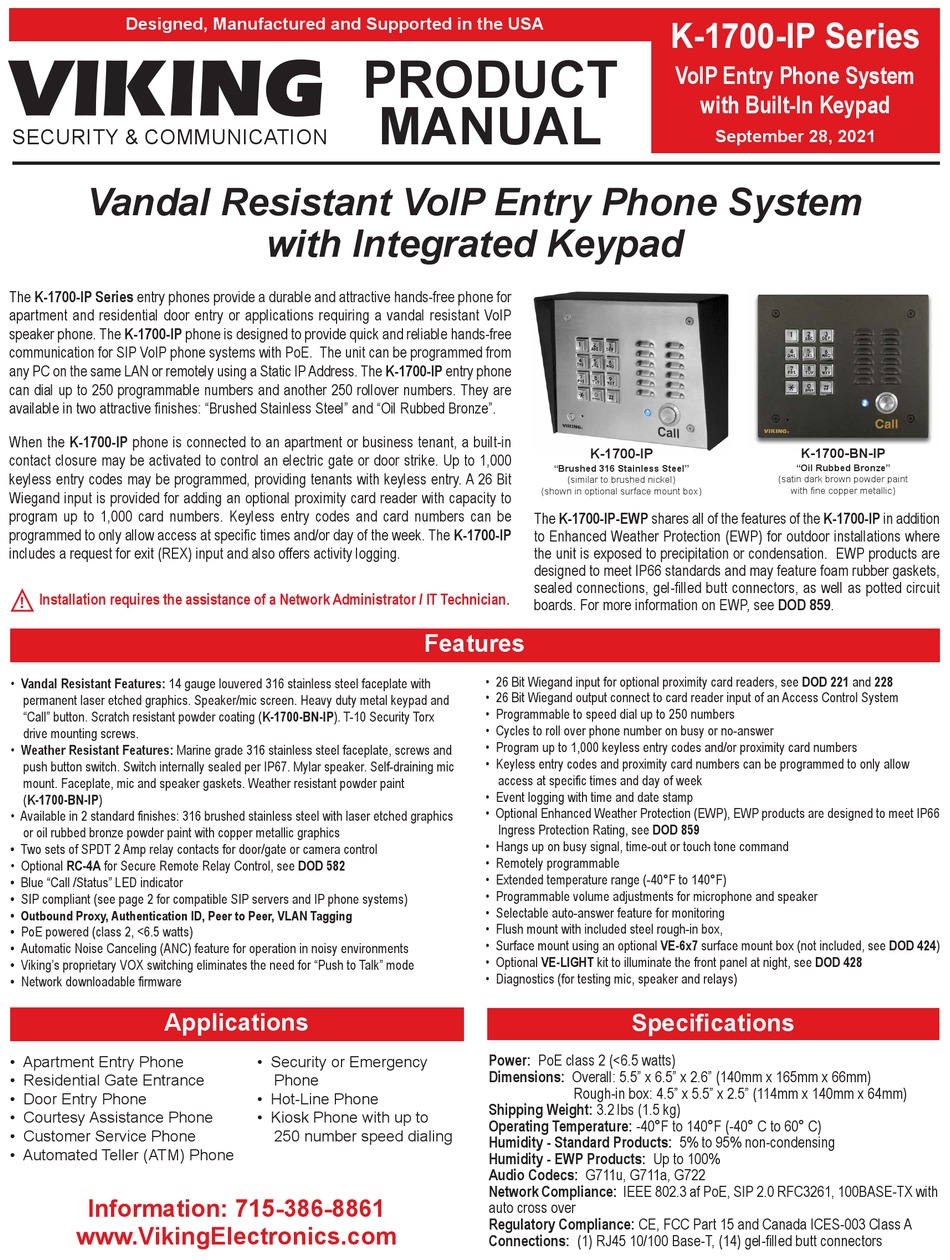

Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
Vandal Resistant VoIP Entry Phone System
The K-1700-IP Series entry phones provide a durable and attractive hands-free phone for
apartment and residential door entry or applications requiring a vandal resistant VoIP
speaker phone. The K-1700-IP phone is designed to provide quick and reliable hands-free
communication for SIP VoIP phone systems with PoE. The unit can be programmed from
any PC on the same LAN or remotely using a Static IP Address. The K-1700-IP entry phone
can dial up to 250 programmable numbers and another 250 rollover numbers. They are
available in two attractive finishes: "Brushed Stainless Steel" and "Oil Rubbed Bronze".
When the K-1700-IP phone is connected to an apartment or business tenant, a built-in
contact closure may be activated to control an electric gate or door strike. Up to 1,000
keyless entry codes may be programmed, providing tenants with keyless entry. A 26 Bit
Wiegand input is provided for adding an optional proximity card reader with capacity to
program up to 1,000 card numbers. Keyless entry codes and card numbers can be
programmed to only allow access at specific times and/or day of the week. The K-1700-IP
includes a request for exit (REX) input and also offers activity logging.
Installation requires the assistance of a Network Administrator / IT Technician.
!
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with
permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad and
"Call" button. Scratch resistant powder coating (K-1700-BN-IP). T-10 Security Torx
drive mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and
push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic
mount. Faceplate, mic and speaker gaskets. Weather resistant powder paint
(K-1700-BN-IP)
• Available in 2 standard finishes: 316 brushed stainless steel with laser etched graphics
or oil rubbed bronze powder paint with copper metallic graphics
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control, see DOD 582
• Blue "Call /Status" LED indicator
• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• PoE powered (class 2, <6.5 watts)
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Viking's proprietary VOX switching eliminates the need for "Push to Talk" mode
• Network downloadable firmware
Applications
• Apartment Entry Phone
• Residential Gate Entrance
• Door Entry Phone
• Courtesy Assistance Phone
• Customer Service Phone
• Automated Teller (ATM) Phone
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT
MANUAL
with Integrated Keypad
Features
• Security or Emergency
Phone
• Hot-Line Phone
• Kiosk Phone with up to
250 number speed dialing
K-1700-IP
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
(shown in optional surface mount box)
The K-1700-IP-EWP shares all of the features of the K-1700-IP in addition
to Enhanced Weather Protection (EWP) for outdoor installations where
the unit is exposed to precipitation or condensation. EWP products are
designed to meet IP66 standards and may feature foam rubber gaskets,
sealed connections, gel-filled butt connectors, as well as potted circuit
boards. For more information on EWP, see DOD 859.
• 26 Bit Wiegand input for optional proximity card readers, see DOD 221 and 228
• 26 Bit Wiegand output connect to card reader input of an Access Control System
• Programmable to speed dial up to 250 numbers
• Cycles to roll over phone number on busy or no-answer
• Program up to 1,000 keyless entry codes and/or proximity card numbers
• Keyless entry codes and proximity card numbers can be programmed to only allow
access at specific times and day of week
• Event logging with time and date stamp
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66
Ingress Protection Rating, see DOD 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-40°F to 140°F)
• Programmable volume adjustments for microphone and speaker
• Selectable auto-answer feature for monitoring
• Flush mount with included steel rough-in box,
• Surface mount using an optional VE-6x7 surface mount box (not included, see DOD 424)
• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428
• Diagnostics (for testing mic, speaker and relays)
Specifications
Power: PoE class 2 (<6.5 watts)
Dimensions: Overall: 5.5" x 6.5" x 2.6" (140mm x 165mm x 66mm)
Rough-in box: 4.5" x 5.5" x 2.5" (114mm x 140mm x 64mm)
Shipping Weight: 3.2 lbs (1.5 kg)
Operating Temperature: -40°F to 140°F (-40° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with
auto cross over
Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors
K-1700-IP Series
VoIP Entry Phone System
with Built-In Keypad
September 28, 2021
K-1700-BN-IP
"Oil Rubbed Bronze"
(satin dark brown powder paint
with fine copper metallic)
