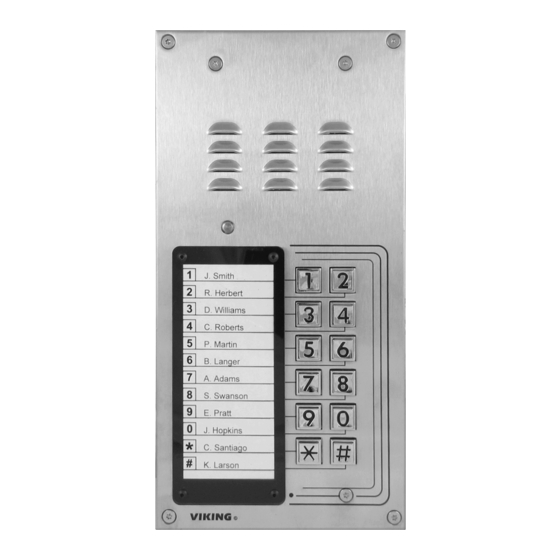

12 Button Apartment Entry Phone with Built
Model K-1200 (shown in optional
VE-5x10-SS, not included)
F
e
a
t
u
r
e
s
F
e
a
t
u
r
e
s
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 second number positions (22 digits each)
• One button operation (no call button)
• Hang-up on CPC, busy, silence, time-out or
dial tone return
• Touch tone restriction from microphone
• Integral relays for camera control and door
strike
• Works with C-1000B for increased security
• Works with C-3000 for "No CO" (phone line)
operation
• Optional Enhanced Weather Protection (EWP)
• VE-LIGHT compatible
• 50 keyless entry codes
w
w
w
.
v
i
k
i
n
g
e
l
e
c
t
w
w
w
.
v
i
k
i
n
g
e
l
e
c
t
S
S
C
O
M
O
L
U
T
I
O
N
S
C
O
M
O
L
U
T
I
O
N
S
in Door Strike Relay
The K-1200 Entry Phone is a two-way, handsfree telephone with 12
buttons for calling individual residences in an apartment building.
The rugged stainless steel faceplate has a printed directory housed
in a waterproof, scratch-resistant lens. Each button is beside the ten-
ants name in the directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as pressing a single but-
ton. The K-1200 has a built in speed dialer that can handle up to 12
primary phone numbers, each with 32 digits. If there is no answer at
the first number, a second number can be called automatically. Once
the tenant answers their phone, a single touch tone command can
activate the door strike relay. For "no phone line" applications, the K-
1200 is compatible with the C-3000 no CO (phone line) controller.
For outdoor applications, the K-1200 is available with Enhanced
Weather Protection. EWP products feature rubber gaskets and
boots, closed cell foam gasketing, hand soldered silicon sealed con-
nections, anti-corrosive gel filled butt connectors, as well as ure-
thane encapsulated circuit boards with internally sealed trim POTS
and DIP switches.
